N1524
Model: N1524 – Dell Networking N1500 Series Switches
Details: Dell Networking N1524, 24x 1GbE + 4x 10GbE SFP+ Fixed port, stack, airflow from IO to PSU , AC
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N1524 Overview

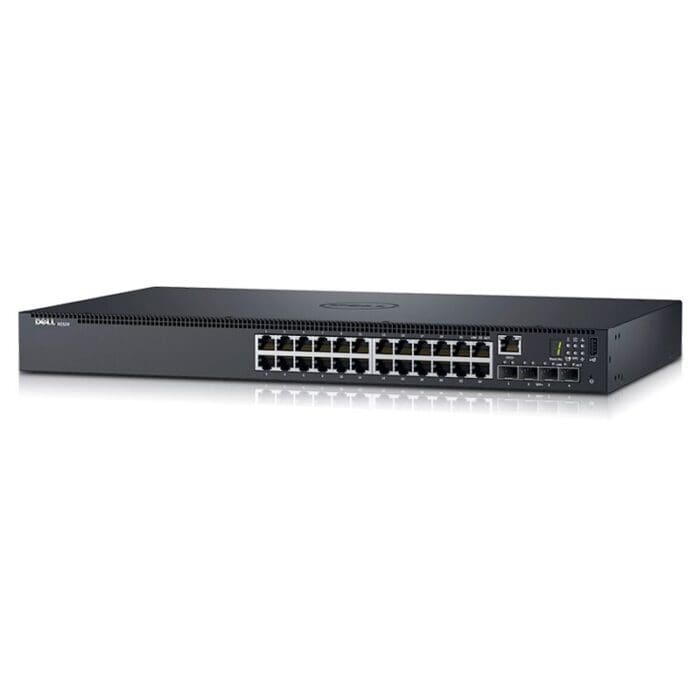

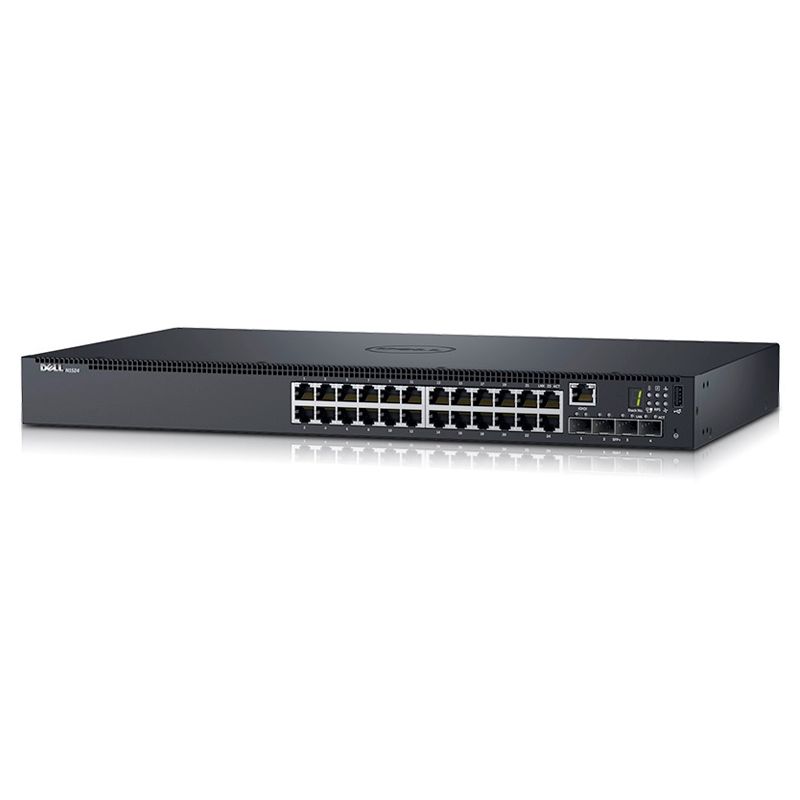

Quick Specs Figure 1 shows the appearance of N1524.
Table 1 shows the Quick Specs.
| Rack Height | 1U |
| Rack-mounting kit | Y |
| Ready Railsâ„¢ rack mounting system, no tools required | not available |
| Dimensions in inches | 1.7 x 17.3 x 10.1 |
| Dimensions in millimeters | 43.5 x 440.0 x 257.0 |
| Internal hot swappable power supply bays | not available |
| Hot swappable power supplies (included) | not available |
| Integrated power supply (not removable) | standard |
| External power supply | option available |
| Power supply redundancy | option available |
| Removable fans | not available |
| Redundant fans | standard |
| Variable speed fans | standard |
| Air flow | IO to PSU (normal) |
| Integrated rear mini-SAS stacking ports | not available |
| Power Supply (Watts) | 40 |
| Max Thermal Output (BTU/hr) | 103.1 |
| Power Consumption Max (Watts) | 30.2 |
| User port stacking | Y |
| Maximum stacking distance (meters) | 100 |
| Maximum stacking speed (full-duplex) | 40Gbps |
| Operating Temperature in Celsius | 0° to 45° C |
| Operating Temperature in Fahrenheit | 32° to 113° F |
| Storage Temperature in Celsius | -40° to 65° C |
| Storage Temperature in Fahrenheit | -40° to 149° F |
| Operating Relative Humidity | 95% |
| Storage Relative Humidity | 85% |
| Power Supply Efficiency | 80% or better in all operating modes |
