N2K-C2248TP-E

Original price was: $5,753.00.Current price is: $5,465.35.

Model: N2K-C2248TP-E – Cisco Nexus 2000 Series Fabric Extender
Details: Nexus 2000 Series Chassis, Nexus 2248TP-E 1GE Fabric Extender, 2PS, 1 Fan Module, 48×100/1000Base-T + 4x10GE (req SFP+), 32MB buffer, choice of airflow and power supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: N2K-C2248TP-E Categories: , ,
Description

N2K-C2248TP-E Overview

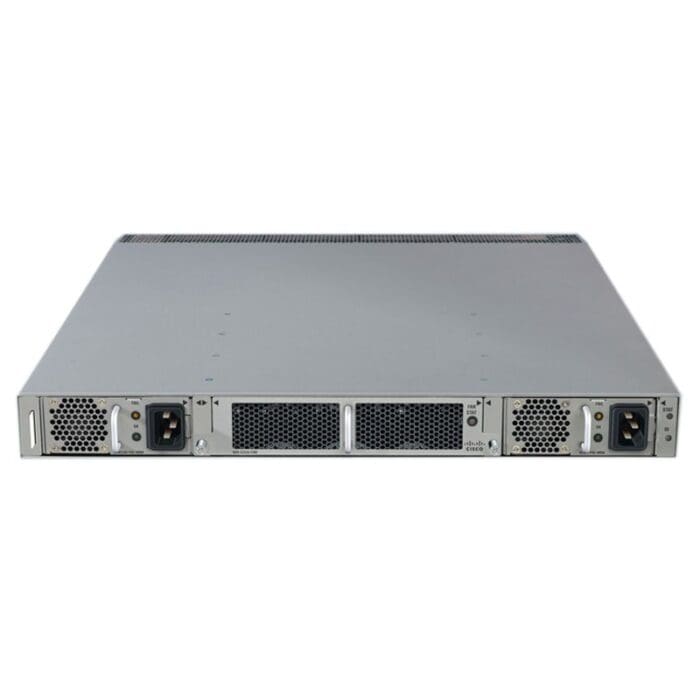

Quick Specs Figure 1 shows the appearance of N2K-C2248TP-E.

Table 1 shows the Quick Specs.

Type Cisco Nexus 2248TP-E
Fabric extender host interfaces 48
Fabric extender host interfaces type 100BASE-T/1000BASE-T ports: RJ-45 connectors
Fabric extender fabric interfaces 4
Fabric extender fabric interfaces type Fiber: Cisco Fabric Extender Transceiver (FET-10G) and SFP+ optics (SFP-10G-SR, SFP-10G-SR-S, SFP-10G-LR and SFP-10G-LR-S)Copper: 10 Gigabit Ethernet SFP+ passive Twinax copper cables (SFP-H10GB-CU1M, SFP-H10GB-CU3M, and SFP-H10GB-CU5M) and active Twinax copper cables (SFP-H10GB-ACU7M and SFP-H10GB-ACU10M)AOC cables:SFP-10G-AOC1M, SFP-10G-AOC2M, SFP-10G-AOC3M, SFP-10G-AOC5M, SFP-10G-AOC7M, SFP-10G-AOC10MAOC breakout cables: QSFP-4X10G-AOC1M, QSFP-4X10G-AOC2M, QSFP-4X10G-AOC3M, QSFP-4X10G-AOC5M, QSFP-4X10G-AOC7M, QSFP-4X10G-AOC10MCopper breakout cables: QSFP-4SFP10G-CU1M, QSFP-4SFP10G-CU3M, QSFP-4SFP10G-CU5M, QSFP-4x10G-AC7M, and QSFP-4x10G-AC10MDistance between Cisco Nexus 2000 Series Fabric Extender and Cisco Nexus 5000 or Nexus 6000 Series Switch: Up to 10 kmDistance between Cisco Nexus 2000 Series Fabric Extender and Cisco Nexus 7000 Series Switch: Up to 10 km
Fabric speed 40 Gbps in each direction(80 Gbps full duplex)
Oversubscription 1.2:1
Performance Hardware forwarding at 176 Gbps or 131 mpps
Cisco parent switch Cisco Nexus 5000 SeriesCisco Nexus 6000Cisco Nexus 7000 SeriesCisco Nexus 9000 Series
Minimum software Cisco NX-OS Software Release 5.1(3)N(1)1 (Cisco Nexus 5000 Series)Cisco Nexus 6000 Series Switches running Cisco NX-OS Software Release 6.0 and laterCisco NX-OS Software Release 6.1(1) on the Cisco Nexus 7000 SeriesCisco NX-OS Software Release 6.1 on the Cisco Nexus 9000 Series
Dimensions(H x W x D) 1.72 x 17.3 x 17.7 in. (4.37 x 43.94 x 44.96 cm)
Weight 17.7 lb (8.0 kg)*Systems are fully loaded with two power supplies and one fan tray
Power supply N2200-PAC-400W, N2200-PAC-400W-B, N2200-PDC-400W, and N2200-PDC-350W-B
Fan tray N2K-C2248-FAN and N2K-C2248-FAN-B
Typical input operating power 95W (max 110W)
Input current 1.0A/1.2A (typical/maximum)Note: Input currents listed for 110V; divide by 2 for 220VSupply will surge on AC power-up for a fraction of a second beyond this rating
Output current 8A/10A (typical/maximum)
Heat dissipation 322/403 BTU/hour (typical/maximum)
Regulatory compliance Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC.
Safety UL 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1IEC 60950-1AS/NZS 60950-1GB4943
EMC: Emissions 47CFR Part 15 (CFR 47) Class AAS/NZS CISPR22 Class ACISPR22 Class AEN55022 Class AICES003 Class AVCCI Class AEN61000-3-2EN61000-3-3KN22 Class ACNS13438 Class A
EMC: Immunity EN50082-1EN61000-6-1EN55024CISPR24EN300386KN 61000-4 series
RoHS The Cisco Nexus 2148T is RoHS-5 compliant, and the Cisco Nexus 2224T, 2248TP, 2232PP, 2248PQ, 2232TM, and 2232TM-E are RoHS-6 compliant.
Network Equipment Building Standards (NEBS) The Cisco Nexus 2248TP, 2248TP-E, and 2232PP meet NEBS level-3 standards (hardware revision 3).
Layer 2 features Layer 2 VLAN trunksIEEE 802.1Q VLAN encapsulationCisco EtherChannel technology on uplinksPortChannel on server ports on Cisco Nexus 2200 platformsAdvanced PortChannel hashingJumbo frames on all ports (up to 9216 bytes)Pause frames (Priority Flow Control [PFC] and IEEE 802.3x)Private VLANs (promiscuous only on uplinks)Local multicast replication on Cisco Nexus 2200 platform (8000 entries)Autonegotiation to 1000BASE-T; full duplex on host interfaces
Enhanced Ethernet DCB (Cisco Nexus 2232PP)
Quality of service (QoS) Layer 2 IEEE 802.1p (class of service [CoS])8 hardware queues per port (Cisco Nexus 2200 platforms), or 4 hardware queues per port (Cisco Nexus 2148T)Per-port QoS configurationLocal policing on Cisco Nexus 2200 platform (64 policers)CoS trustConfigurable tail-drop threshold on Cisco Nexus 2200 platformsEgress strict-priority queuingEgress port-based scheduling: Weighted Round Robin (WRR)
High availability Hot-swappable field-replaceable power supplies and fan modules1:1 power redundancyUplink traffic management through Cisco EtherChannel hashing or static port pinningvPCs for dual-homed active-active connectivity across two Cisco Nexus 5000 or 6000 Series SwitchesvPCs for dual-homed straight-through NIC connectivity across two Cisco Nexus 2000 Series Fabric ExtendersISSU
Security Local classification (256 access control list [ACL] entries)
Management Fabric extender management using in-band managementLocator and beacon LEDs on front and back of chassis (locator beacons on the front and rear of the chassis help reduce errors when the equipment is serviced)Per-port locator and beacon LEDsSyslogSimple Network Management Protocol Versions 1, 2, and 3 (SNMP v1, v2, and v3)Enhanced SNMP MIB supportXML (NETCONF) supportRemote Monitoring (RMON)Cisco Discovery Protocol Versions 1 and 2Cisco Switched Port Analyzer (SPAN) source on server portsPower-on self-test (POST)Cisco Generic Online Diagnostics (GOLD): EthernetComprehensive bootup diagnostic testsCiscoWorksCisco Data Center Network Manager (DCNM); the Cisco Nexus 2000 Series is managed through the parent Cisco Nexus switch using DCNM and standard SNMP, XML interface, and command-line interface (CLI)
Configuration MIBs ENTITY-MIBIF-MIBFABRIC-EXTENDER MIBCISCO-ENTITY-EXT-MIBCISCO-ENTITY-FRU-CONTROL-MIBCISCO-ENTITY-SENSOR-MIBCISCO-ETHERNET-FABRIC-EXTENDER-MIB
Monitoring MIBs RMON-MIB
Industry standards IEEE 802.1p: CoS prioritizationIEEE 802.1Q: VLAN taggingIEEE 802.3: EthernetIEEE 802.3ae: 10 Gigabit EthernetSFF 8431 SFP+ supportIEEE 802.3u 100BASE-TX specificationIEEE 802.3ab 1000BASE-T specificationIEEE 802.3an 10GBASE-T10GBASE-SR10GBASE-LRRMONSFF-8461
