N3224F-ON
Model: N3224F-ON – Dell EMC Networking PowerSwitch N3200 Series Series
Details: Dell N3224F-ON, 24x1G SFP, 4x10G SFP+, 2x100G QSFP28, 1xAC PSU, IO/PS, OS6
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3224F-ON Overview

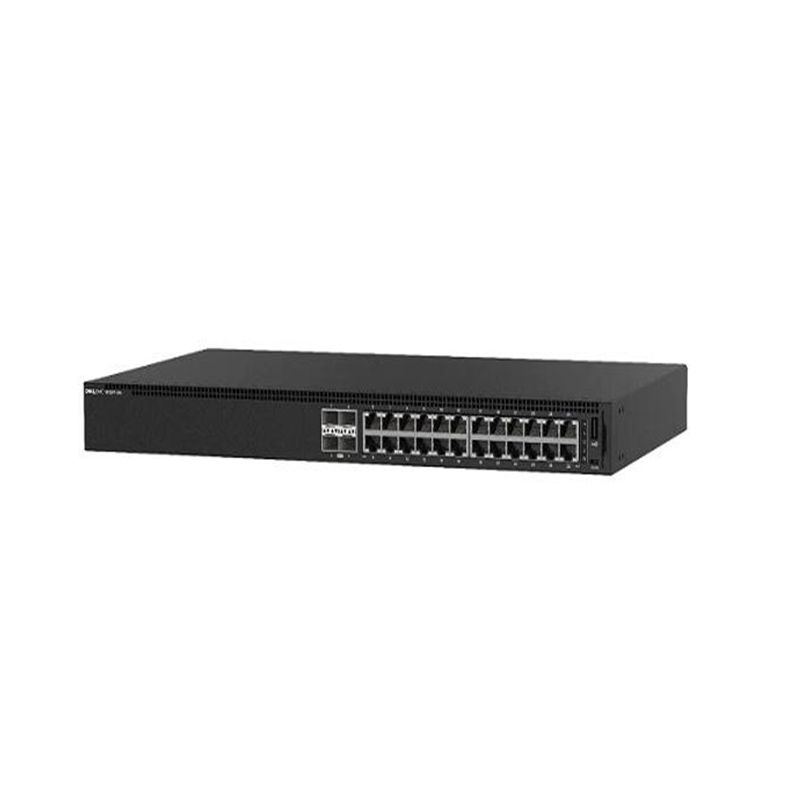

Quick Specs Figure 1 shows the appearance of N3224F-ON.
Table 1 shows the Quick Specs.
| Modular | Yes |
| Port/Expansion Slot Details | 24 x Gigabit Ethernet Expansion Slot, 4 x 10 Gigabit Ethernet Expansion Slot, 2 x 100 Gigabit Ethernet Stack |
| Media Type Supported | Optical Fiber |
| Ethernet Technology | Gigabit Ethernet, 10 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network Technology | 1000Base-X, 10GBase-X, 100GBase-X |
| Number of Total Expansion Slots | 28 |
| Expansion Slot Type | SFP (mini-GBIC), SFP+ |
| Number of SFP Slots | 24 |
| Number of SFP+ Slots | 4 |
| Layer Supported | 3 |
| Manageable | Yes |
| Power Source | Power Supply |
| Redundant Power Supply Supported | Yes |
| Number of Power Supplies Installed | 1 |
| Power Consumption | 224 W |
| Power Plug Type | C15 to NEMA 5-15 |
| Compatible Rack Unit | 1U |
| Form Factor | Rack-mountable |
| Height | 1.7″ |
| Width | 17.1″ |
| Depth | 15.8″ |
