N3224P-ON
Model: N3224P-ON – Dell EMC Networking PowerSwitch N3200 Series Series
Details: Dell N3224P-ON, 24x1G RJ-45, 4x10G SFP+, 2x100G QSFP28, PoE 30W, 1xAC PSU, IO/PS, OS6
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3224P-ON Overview

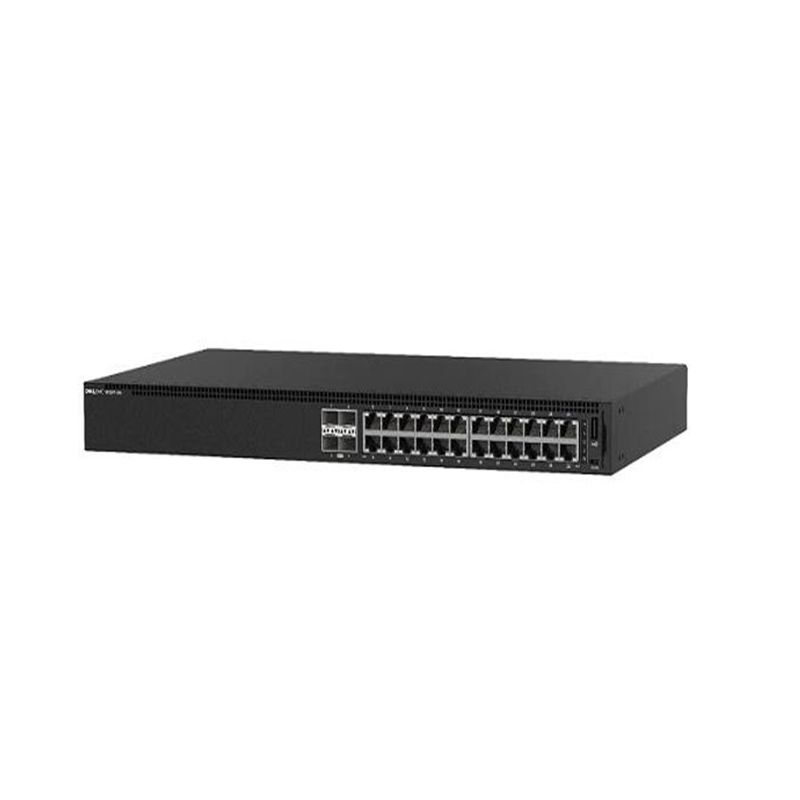

Quick Specs Figure 1 shows the appearance of N3224P-ON.
Table 1 shows the Quick Specs.
| Brand | Dell |
| Model | N3224P-ON |
| Ports | 24x 1G RJ-45 |
| Uplink Ports | 4x 10G SFP+ |
| High-Speed Ports | 2x 100G QSFP28 |
| PoE | 30W |
| Power Supply | 1x AC PSU |
| Airflow Direction | IO to Power Supply (IO/PS) |
| Operating System | OS6 |
| Switching Capacity | 220 Gbps |
| Forwarding Rate | 164 Mpps |
| Rack Units | 1U |
| Max Power Consumption | 420W |
| Dimensions (HxWxD) | 44.0 mm x 440.0 mm x 387.4 mm |
| Redundant Power Supply | Optional |
| Management | Web-based |
| VLAN | Supported |
| Stacking | Stackable up to 12 units |
| Link Aggregation | Supported |
| Jumbo Frames | Supported (up to 9216 bytes) |
| MAC Address Table | 16,000 entries |
| IPv6 Support | Yes |
