-5%
N3248PXE-ON
Model: N3248PXE-ON – Dell EMC Networking PowerSwitch N3200 Series Series
Details: Dell N3248PXE-ON, 48×1/2.5/5/10G RJ-45, 4x25G SFP28, 2x100G QSFP28, PoE 90W, 1xAC PSU, IO/PS, OS6
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3248PXE-ON Overview

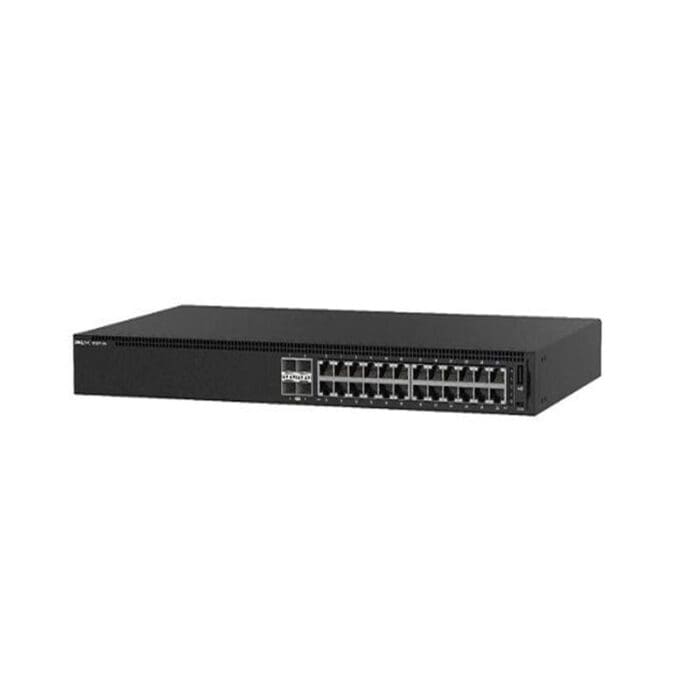

Quick Specs Figure 1 shows the appearance of N3248PXE-ON.
Table 1 shows the Quick Specs.
| Product Name | PWRSWCH N3248PXE-On IO/PS OS6 |
| Manufacturer Part Number | N3248PXE-ONF |
| Product Type | Ethernet Switch |
| Manageable | Yes |
| Ethernet Technology | Gigabit Ethernet10 Gigabit Ethernet100 Gigabit Ethernet |
| Number of Total Expansion Slots | 4 |
| Stack Port | Yes |
| Media Type Supported | Optical FiberTwisted Pair |
| Total Number of Network Ports | 48 |
| PoE (RJ-45) Port | Yes |
| Redundant Power Supply Supported | Yes |
| Expansion Slot Type | SFP28 |
| Form Factor | Rack-mountable |
| Power Consumption | 5344 W |
| Power Source | Power Supply |
| Layer Supported | 3 |
| Environmentally Friendly | Yes |
| Compatible Rack Unit | 1U |
| Number of Power Supplies Installed | 1 |
| Modular | Yes |
| Port / Expansion Slot Details | 48 x 10 Gigabit Ethernet PoE4 x 25 Gigabit Ethernet Expansion Slot2 x 100 Gigabit Ethernet Stack |
| PoE Budget | 90 W |
| Height | 1.7″ |
| Width | 17.1″ |
| Depth | 15.8″ |
| Product Series | N3200 |
| Product Model | N3248PXE-ON |
| Network Technology | 10/100/1000Base-T10GBase-X100GBase-X |
| Limited Warranty | Lifetime |
