N3K-C3048TP-1GE
Model: N3K-C3048TP-1GE – Cisco Nexus 3000 Switches
Details: Nexus 3048TP-1GE 1RU 48 x 10/100/1000 and 4 x 10GE ports
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3048TP-1GE Overview

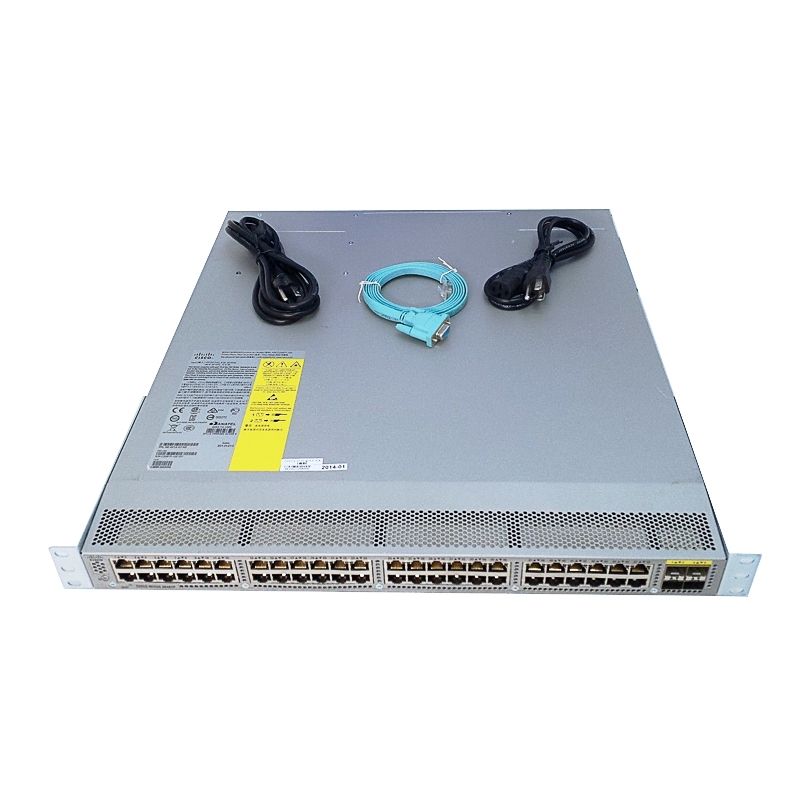

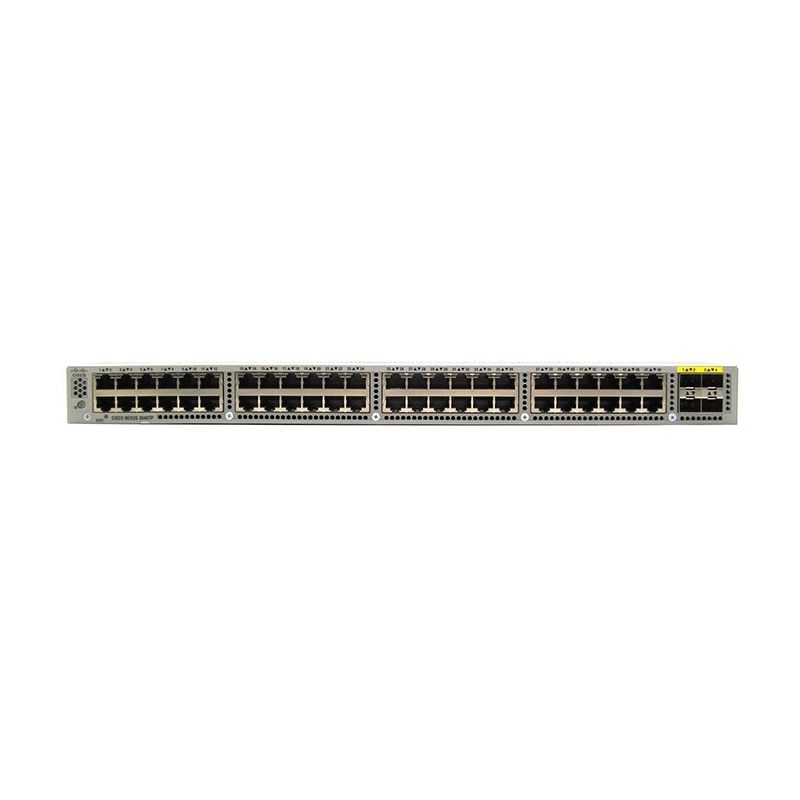

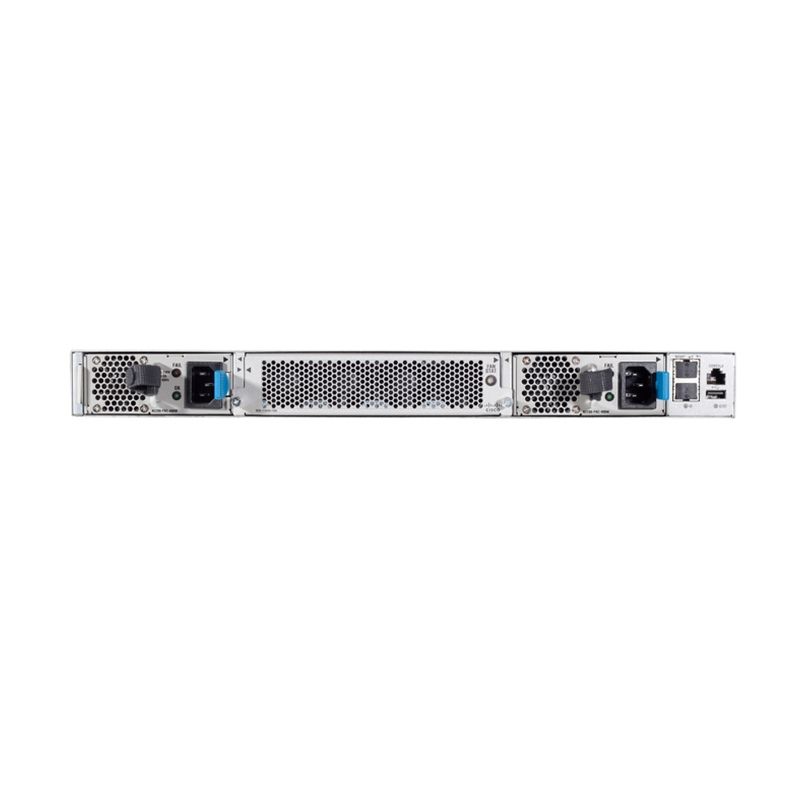

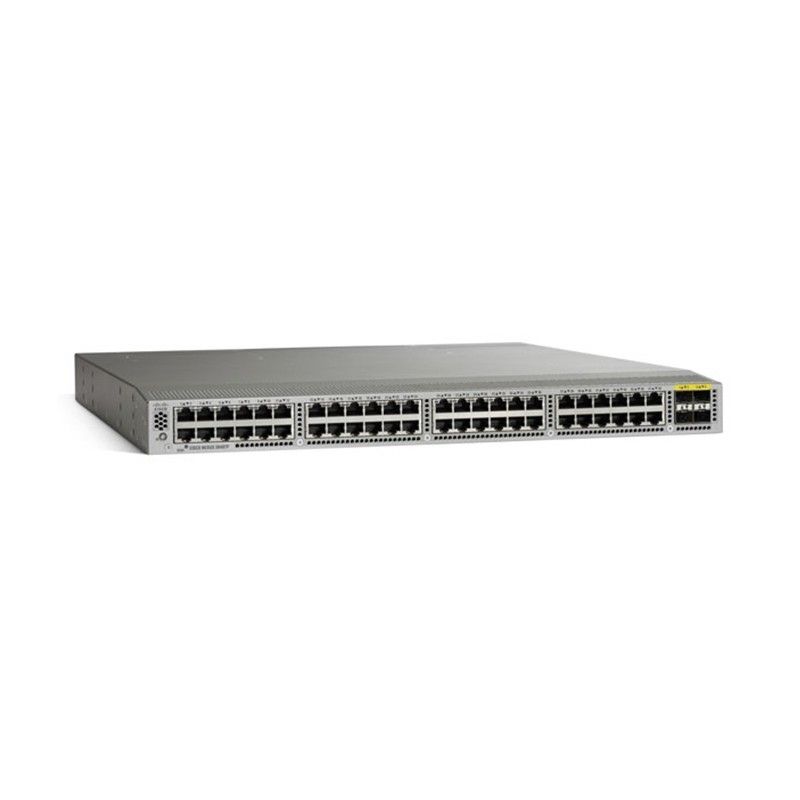

Quick Specs Figure 1 shows the appearance of N3K-C3048TP-1GE.
Table 1 shows the Quick Specs.
| Physical | · 1RU fixed form-factor switch· 48 10/100/1000-Mbps RJ-45 ports· 4 1/10 Gbps SFP+ uplink ports· 2 redundant power supplies· 1 fan tray with redundant fans· 1 I/O module with management, console, and USB flash memory ports |
| Performance | · 176-Gbps switching capacity· Forwarding rate of 132 mpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames) |
| MAC addresses | 128,000 |
| Number of VLANS | 4096 |
| Spanning-tree instances | · RSTP: 512· MSTP: 64 |
| ACL entries | 2000 ingress1000 egress |
| Routing table | 16,000 prefixes and 16,000 host entries8000 multicast routes |
| Number of EtherChannels | 52 (with vPC) |
| Number of ports per EtherChannel | 16 |
| Buffers | 9 MB shared |
| Boot flash memory | 2 GB |
| Number of power supplies | 2 (redundant) |
| Typical operating power | 120 watts (W) (48p of 1G and 4p of 10G/SR at 100% load, with 2 power supply units [PSUs]) |
| Maximum power | 124W |
| AC PSUsInput voltageFrequencyEfficiency | 100 to 240 VAC50 to 60 Hz89 to 91% at 220V |
| DC PSUsInput voltageMaximum currentEfficiency | -40 to -72 VDC33A85 to 88% |
| Typical heat dissipation | 409 BTU/hr (48p of 1G and 4p of 10G/SR at 100% load, with 2 PSUs) |
| Maximum heat dissipation | 423 BTU/hr |
| Cooling | Forward and reversed airflow schemesForward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports)Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)Single fan tray with redundant fansHot swappable (must swap within 1 minute) |
| Measured sound power (maximum)Fan speed: 40% duty cycleFan speed: 60% duty cycleFan speed: 100% duty cycle | 63.9 dBA64.7 dBA66.4 dBA |
| Dimensions (height x width x depth) | 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 50.5 cm) |
| Weight | 20.5 lb (9.3 kg) |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | -40 to 158°F (-40 to 70°C) |
| Operating relative humidity | 10 to 85% noncondensingUp to 5 days at maximum (85%) humidityRecommend ASHRAE data center environment |
| Storage relative humidity | 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
