N3K-C3064PQ-10GX
Model: N3K-C3064PQ-10GX – Cisco Nexus 3000 Series
Details: Nexus 3064-X, 48 SFP+ and 4 QSFP+ ports, with enhanced scale, low latency
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3064PQ-10GX Overview

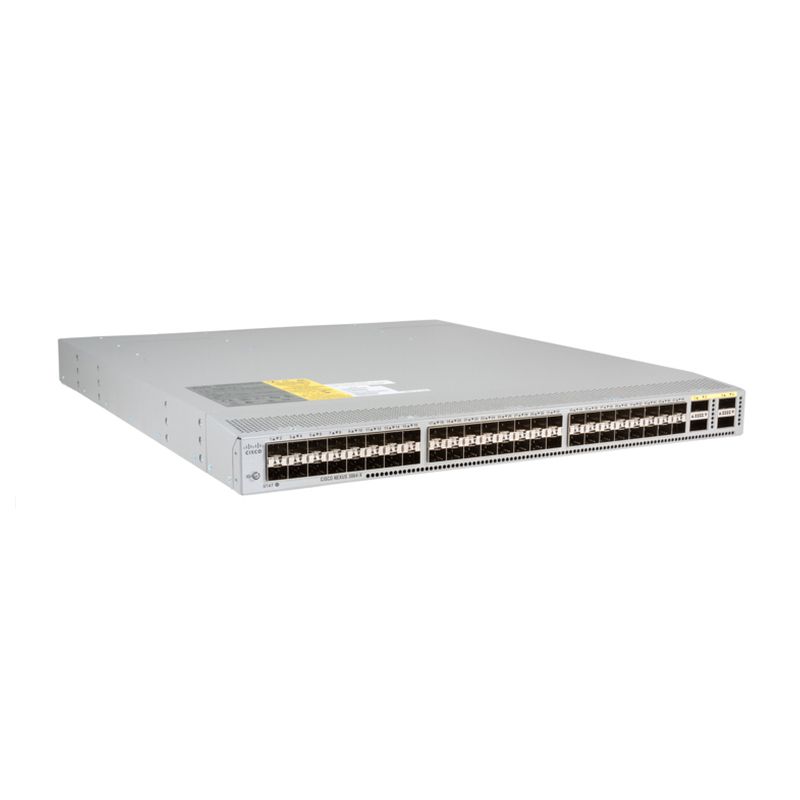

Quick Specs Figure 1 shows the appearance of N3K-C3064PQ-10GX.
Table 1 shows the Quick Specs.
| Physical | ● 1RU fixed form factor● Cisco Nexus 3064-X: 64 10 Gigabit Ethernet ports (48 SFP+ and 4 QSFP+)◦ 48 SFP ports support 1 and 10 Gigabit Ethernet◦ 4 QSFP ports support 4 x 10 Gigabit Ethernet or 40 Gigabit Ethernet each● 2 redundant power supplies● 1fan tray with redundant fans● 1 I/O module with management, console, and USB flash memory ports |
| Performance | ● 1.28-Tbps switching capacity● Forwarding rate of 950 mpps● Line-rate traffic throughput (both Layer 2 and 3) on all ports● Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames) |
| Hardware tables and scalability | MAC addresses |
| Number of VLANS | 4096 |
| Spanning-tree instances | ● Rapid Spanning Tree Protocol (RSTP): 512● Multiple Spanning Tree (MST) Protocol: 64 |
| ACL entries | ● 2000 ingress● 1000 egress |
| Routing table | ● 16,000 prefixes and 16,000 host entries● 8000 multicast routes |
| Number of EtherChannels | 64 (with vPC) |
| Number of ports per EtherChannel | 32 |
| Buffers | 9 MB shared |
| Boot flash memory | 2 GB |
| Power | Number of power supplies |
| Power supply types | ● AC (forward and reversed airflow)● DC (forward and reversed airflow) |
| Typical operating power | ● Cisco Nexus 3064-X◦ 143 watts (W; 64p with Twinax at 100% load; 2 power supply units [PSUs])◦ 177W (64p with SR optics at 100% load; 2 PSUs) |
| Maximum power | ● Cisco Nexus 3064-X: 199W |
| AC PSUs● Input voltage● Frequency● Efficiency | ● 100 to 240 VAC● 50 to 60 Hz● 89 to 91% at 220V |
| DC PSUs● Input voltage● Maximum current● Efficiency | ● -40 to -72 VDC● 33A● 85 to 88% |
| Typical heat dissipation | ● Cisco Nexus 3064-X◦ 488 BTU/hr (64p with Twinax at 100% load; 2 PSUs)◦ 605 BTU/hr (64p with SR optics at 100% load; 2 PSUs) |
| Maximum heat dissipation | ● Cisco Nexus 3064-X: 683 BTU/hr |
| Cooling | Forward and reversed airflow schemes:● Forward airflow: Port-side exhaust (air enters through fan-tray and power supplies and exits through ports)● Reversed airflow: Port-side intake (air enters through ports and exits through fan-tray and power supplies)Single fan tray with redundant fansHot swappable (must swap within 1 min) |
| Sound | Measured sound power (maximum)● Fan speed: 40% duty cycle● Fan speed: 60% duty cycle● Fan speed: 100% duty cycle |
| Environment | Dimensions (height x width x depth) |
| Weight | ● Cisco Nexus 3064-X: 20.5 lb (9.3 kg) |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | -40 to 158°F (-40 to 70°C) |
| Operating relative humidity | ● 10 to 85% noncondensing● Up to 5 days at maximum (85%) humidity● Recommend ASHRAE data center environment |
| Storage relative humidity | 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
