N3K-C3132C-Z
Model: N3K-C3132C-Z – Cisco Nexus 3000 Series
Details: Cisco Nexus 3132C-Z switch with 32 QSFP28
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3132C-Z Overview

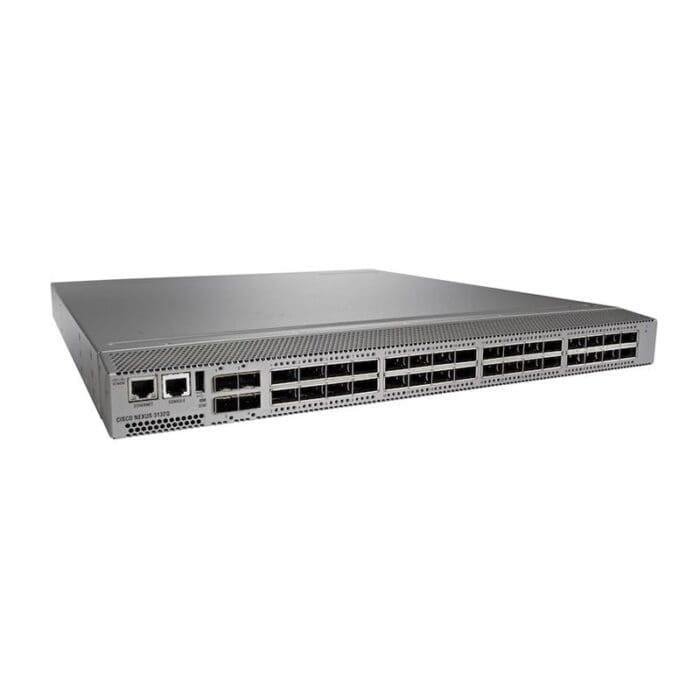

Quick Specs Figure 1 shows the appearance of N3K-C3132C-Z.
Table 1 shows the Quick Specs.
| Physical | ·   32 fixed 100 Gigabit Ethernet QSFP28 ports·   Beacon LED·   Environment LED·   Status LED·   Lane-selected LED·   Dual redundant power supplies·   Redundant (3+1) fans·   Two 10-Gbps SFP ports (port 33 and port 34 in front)·   One RJ-45 console port·   One RJ45 and one SFP management port·   One USB port |
| Performance | 6.4Tbps switching capacity |
| Typical operating power | 312W |
| Maximum power | 493W |
| Typical heat dissipation | 1064 BTUs/hr |
| Maximum heat dissipation | 1682 BTUs/hr |
| Number of MAC addresses | 32,000 min 288,000 max |
| Number of IPv4 unicast routes | 24,000 |
| Number of IPv4 hosts | 16K min/168K max |
| Number of IPv4 multicast routes | 8000 |
| Number of VLANs | 4096 |
| Number of ACL entries | 4096 |
| Number of spanning-tree instances | RSTP: 512MSTP: 64 |
| Number of EtherChannels | 24 |
| Number of ports per EtherChannel | 24 |
| Buffer size | 32 MB |
| Boot flash memory | 128 GB |
| Number of power supplies | 2 (redundant) |
| Power supply types | AC (forward and reversed airflow) |
| Input voltage | 100 to 240 VAC |
| Frequency | 50 to 60Hz |
| Power supply efficiency | 89 to 91% at 220V |
| Forward and reversed airflow schemes | ·   Forward airflow: port-side exhaust (air enters through fan tray and power supplies and exits through ports)·   Reversed airflow: port-side intake (air enters through ports and exits through fan tray and power supplies)Four individual, hot-swappable fans (3+1 redundant) |
| Weight | 19.2 lb. with PSU and fan13.8 lb. without PSU and fan |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | –40 to 158°F (–40 to 70°C) |
| Relative humidity: storage | 5 to 95% noncondensing |
| Relative humidity: operating | ·   10 to 85% noncondensing·   Up to 5 days at maximum (85%) humidity·   Recommend ASHRAE data center environment |
| Altitude (operating and nonoperating | 0 ft. to 10,000 ft. |
