Name: N3K-C3132Q-40GE
SKU: N3K-C3132Q-40GE
Price: 7434.70 USD
Availability: InStock

N3K-C3132Q-40GE

Model: N3K-C3132Q-40GE – Cisco Nexus 3000 Series
Details: Nexus 3132Q, 32 QSFP+ ports, 1RU switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

N3K-C3132Q-40GE Overview

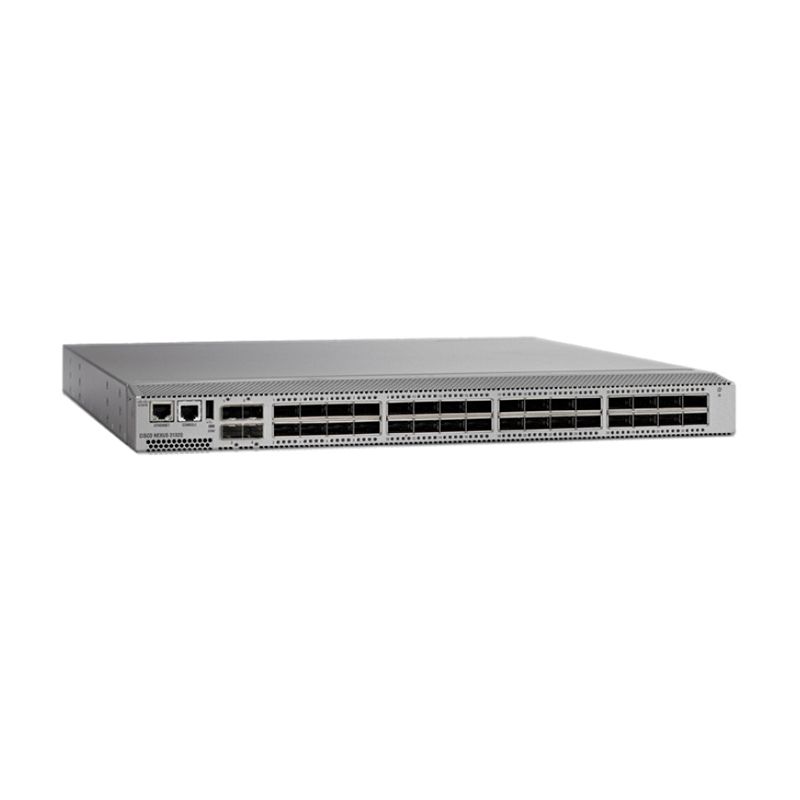

Quick Specs Figure 1 shows the appearance of N3K-C3132Q-40GE.

Table 1 shows the Quick Specs.

Physical	· 1RU fixed form-factor switch· 32 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes· 4 SFP+ ports· 2 redundant power supplies· 4 redundant (3+1) fans· Management, console, and USB flash-memory ports
Performance	· 2.5-Tbps switching capacity· Forwarding rate up to 1.4 bpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability*	Number of MAC addresses
Number of VLANS	4096
Number of spanning-tree instances	· RSTP: 512· MSTP: 64
Number of ACL entries	· 4000 ingress· 1000 egress
Routing table	· 16,000 prefixes and 16,000 host entries· 8000 multicast routes
Number of EtherChannels	64 (with vPC)
Number of ports per EtherChannel	16
System memory	4 GB
Buffer size	12 MB shared
Boot-flash memory	4 GB
Power	Frequency
Power supply types	· AC (forward and reversed airflow)· DC (forward and reversed airflow)
Typical operating power	210W
Maximum power	340W
AC PSUs· Input voltage· Frequency· Efficiency	· 100 to 240 VAC· 50 to 60 Hz· 89 to 91% at 220V
DC PSUs· Input voltage· Maximum current (PSU output – System input)· Efficiency	· –40 to –-72 VDC· 33A (400W unit)· 85 to 88%
Power-supply efficiency	89 to 91% at 220V
Typical heat dissipation	717 BTU/hr
Maximum heat dissipation	1160 BTU/hr
Cooling	· Forward and reversed airflow schemes◦ Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports); supported with AC and DC power supplies◦ Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies); supported with AC power supply only· Redundant fans· Hot swappable (must swap within 1 minute)
Sound	Measured sound power (maximum)· Fan speed: 40% duty cycle· Fan speed: 70% duty cycle· Fan speed: 100% duty cycle
Environment	Dimensions (height x width x depth)
Weight	21.5 lb (9.3 kg)
Operating temperature	32 to 104°F (0 to 40°C)
Storage temperature	–40 to 158°F (–40 to 70°C)
Operating relative humidity	· 10 to 85% noncondensing· Up to 5 days at maximum (85%) humidity· Recommend ASHRAE data center environment
Storage relative humidity	5 to 95% noncondensing
Altitude	0 to 10,000 ft (0 to 3000m)

Get more information
Do you have any question about the N3K-C3132Q-40GE?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured

-5%

Click to enlarge

Original price was: $7,826.00.Current price is: $7,434.70.

Add to compare

Add to wishlist

SKU: N3K-C3132Q-40GE Categories: Cisco Nexus 3000 Series, Cisco Switches, Switches

Security/Data Center/Networking

End-to-End Project Support
Smart Industrial Solutions
Global Expert Team
Certified ICT Professionals

Ask the Experts

24/7 Online Service

We're Always Here

+1-737-282-1616 (USA)

+971 58 6900 135 (United Arab Emirates)

+966 55 0033 948 (Saudi Arabia)

Partner with Us

Join Global Partner Program in Pakistan

Get Started

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

HPE 840G7-Z97 i7-10510U/16G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,146.65.Current price is: $1,089.32.
HPE 840G7-Q17 i7-10510U/8G/512G SSD/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-P99 i5-10210U/16G/512G/Integrated Graphics Card/FHD 1920*1080 Original price was: $1,010.65.Current price is: $960.12.
HPE 840G7-Q16 i5-10210U/8G/256G/Integrated Graphics Card/FHD 1920*1080 Original price was: $924.80.Current price is: $878.56.

Description

Physical	· 1RU fixed form-factor switch· 32 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes· 4 SFP+ ports· 2 redundant power supplies· 4 redundant (3+1) fans· Management, console, and USB flash-memory ports
Performance	· 2.5-Tbps switching capacity· Forwarding rate up to 1.4 bpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
Hardware tables and scalability*	Number of MAC addresses
Number of VLANS	4096
Number of spanning-tree instances	· RSTP: 512· MSTP: 64
Number of ACL entries	· 4000 ingress· 1000 egress
Routing table	· 16,000 prefixes and 16,000 host entries· 8000 multicast routes
Number of EtherChannels	64 (with vPC)
Number of ports per EtherChannel	16
System memory	4 GB
Buffer size	12 MB shared
Boot-flash memory	4 GB
Power	Frequency
Power supply types	· AC (forward and reversed airflow)· DC (forward and reversed airflow)
Typical operating power	210W
Maximum power	340W
AC PSUs· Input voltage· Frequency· Efficiency	· 100 to 240 VAC· 50 to 60 Hz· 89 to 91% at 220V
DC PSUs· Input voltage· Maximum current (PSU output – System input)· Efficiency	· –40 to –-72 VDC· 33A (400W unit)· 85 to 88%
Power-supply efficiency	89 to 91% at 220V
Typical heat dissipation	717 BTU/hr
Maximum heat dissipation	1160 BTU/hr
Cooling	· Forward and reversed airflow schemes◦ Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports); supported with AC and DC power supplies◦ Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies); supported with AC power supply only· Redundant fans· Hot swappable (must swap within 1 minute)
Sound	Measured sound power (maximum)· Fan speed: 40% duty cycle· Fan speed: 70% duty cycle· Fan speed: 100% duty cycle
Environment	Dimensions (height x width x depth)
Weight	21.5 lb (9.3 kg)
Operating temperature	32 to 104°F (0 to 40°C)
Storage temperature	–40 to 158°F (–40 to 70°C)
Operating relative humidity	· 10 to 85% noncondensing· Up to 5 days at maximum (85%) humidity· Recommend ASHRAE data center environment
Storage relative humidity	5 to 95% noncondensing
Altitude	0 to 10,000 ft (0 to 3000m)
