N3K-C3132Q-XL
Model: N3K-C3132Q-XL – Cisco Nexus 3000 Series
Details: Nexus 3132Q-XL, 32 QSFP+ ports, 1RU switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3132Q-XL Overview

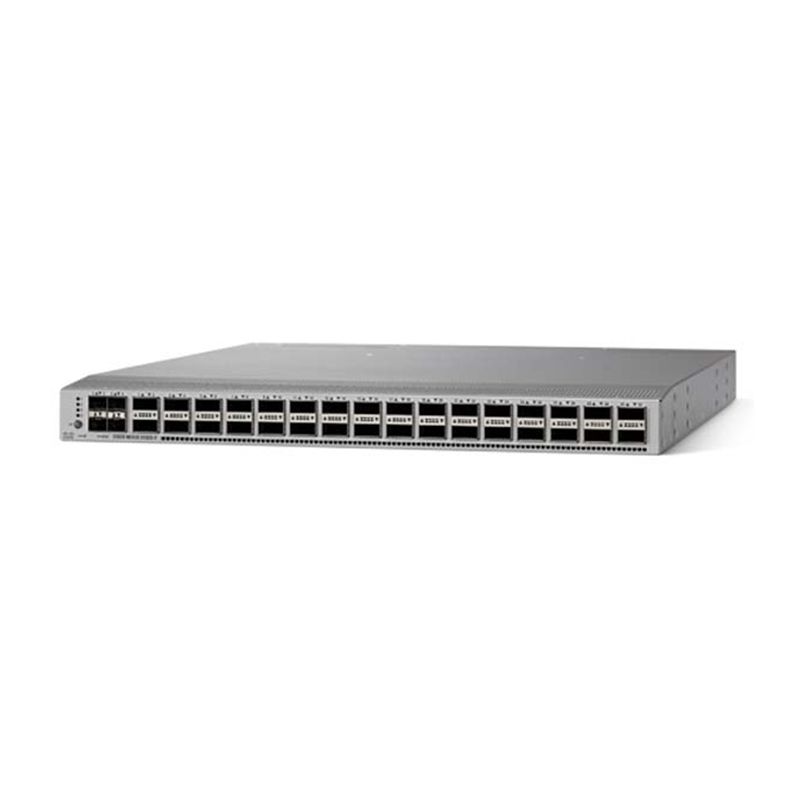

Quick Specs Figure 1 shows the appearance of N3K-C3132Q-XL.
Table 1 shows the Quick Specs.
| Physical | · 1RU fixed form-factor switch· 32 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes· 4 SFP+ ports· 2 redundant power supplies· 4 redundant (3+1) fans· Management, console, and USB flash-memory ports |
| Performance | · 2.5-Tbps switching capacity· Forwarding rate up to 1.4 bpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames) |
| Hardware tables and scalability | Number of MAC addresses |
| Number of VLANS | 4096 |
| Number of spanning-tree instances | · RSTP: 512· MSTP: 64 |
| Number of ACL entries | · 4000 ingress· 1000 egress |
| Routing table | · 16,000 prefixes and 16,000 host entries· 8000 multicast routes |
| Number of EtherChannels | 64 (with vPC) |
| Number of ports per EtherChannel | 16 |
| System memory | 8 GB |
| Buffer size | 12 MB shared |
| Boot-flash memory | 16 GB |
| Power | Frequency |
| Power supply types | · AC (forward and reversed airflow)· DC (forward and reversed airflow) |
| Typical operating power | 170W |
| Maximum power | 290W |
| AC PSUs· Input voltage· Frequency· Efficiency | · 100 to 240 VAC· 50 to 60 Hz· 89 to 91% at 220V |
| DC PSUs· Input voltage· Maximum current (PSU output – System input)· Efficiency | · –40 to –-72 VDC· 33A (400W unit)· 85 to 88% |
| Power-supply efficiency | 89 to 91% at 220V |
| Typical heat dissipation | 580 BTU/hr |
| Maximum heat dissipation | 989 BTU/hr |
| Cooling | · Forward and reversed airflow schemes◦   Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports); supported with AC and DC power supplies◦   Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies); supported with AC power supply only· Redundant fans· Hot swappable (must swap within 1 minute) |
| Sound | Measured sound power (maximum)· Fan speed: 40% duty cycle· Fan speed: 70% duty cycle· Fan speed: 100% duty cycle |
| Environment | Dimensions (height x width x depth) |
| Weight | 21.5 lb (9.3 kg) |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | –40 to 158°F (–40 to 70°C) |
| Operating relative humidity | · 10 to 85% noncondensing· Up to 5 days at maximum (85%) humidity· Recommend ASHRAE data center environment |
| Storage relative humidity | 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
