N3K-C3164Q-40GE
Model: N3K-C3164Q-40GE – Cisco Nexus 3000 Series
Details: Nexus 3164Q, 64 QSFP+ ports, 2RU switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3164Q-40GE Overview

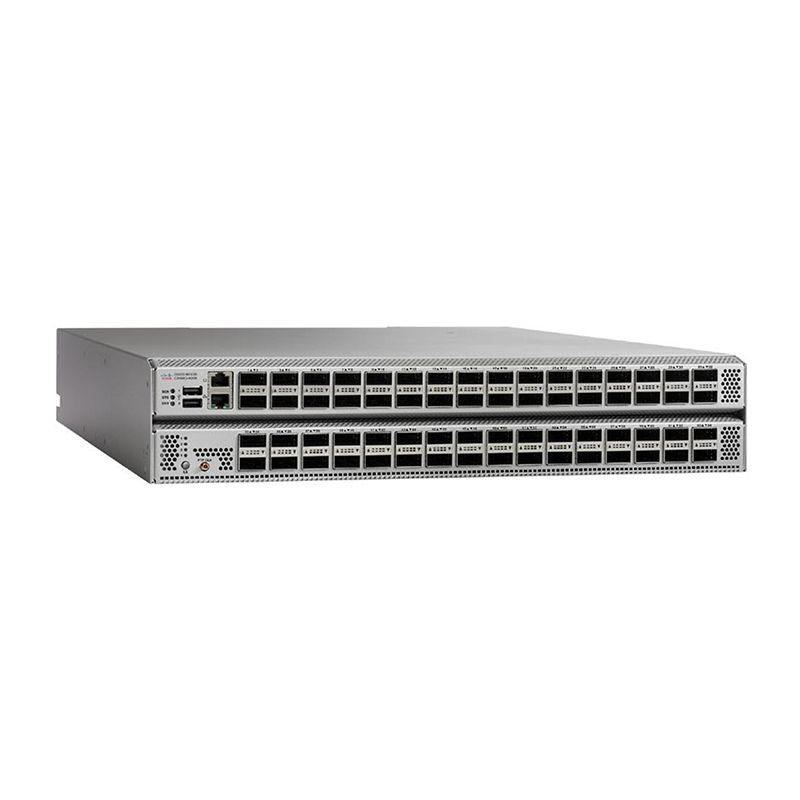

Quick Specs Figure 1 shows the appearance of N3K-C3164Q-40GE.
Table 1 shows the Quick Specs.
| Physical | · 2 RU fixed form-factor switch· 64 QSFP+ ports; each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes· 2 redundant power supplies· 3+1 redundant fans· Management, console, and USB flash-memory ports |
| Performance | · 5.12 Tbps switching capacity· Forwarding rate up to 3.8 bpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames) |
| Hardware tables and scalability | Number of VLANS |
| Number of spanning-tree instances | MSTP: 64RPVST+: 507 |
| Number of access control list (ACL) entries | 4000 to 16000 ingress1000 to 4000 egress |
| Routing table | Maximum number of longest prefix match (LPM) routes 128,000Maximum number of IP host entries 120,000Maximum number of MAC address entries 96,000 |
| Number of EtherChannels | 256 |
| Number of ports per EtherChannel | 32 |
| Buffer size | 48 MB shared |
| System memory | 16 GB |
| Power | Frequency |
| Power supply types | AC |
| Typical operating power | 803 Watts (W) with SR4 optics at 100% load; 2 PSUs |
| Maximum power | 1100 Watts (W) |
| AC PSUs· Input voltage· Frequency· Efficiency | · 200 to 240 VAC· 50 to 60 Hz· 93% at 220V |
| Typical heat dissipation | 2739 BTU/hr (with SR4 optics at 100% load) |
| Maximum heat dissipation | 3753 BTU/hr |
| Cooling | Port-side intake and port-side exhaust optionsPort-side intake: YesPort-side exhaust: Post FCS |
| Dimensions | · Dimensions (height x width x depth) |
| Environment | Weight |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | -40 to 158°F (-40 to 70°C) |
| Operating relative humidity | · 10 to 85% noncondensing· Up to 5 days at maximum (85%) humidityRecommend ASHRAE data center environment |
| Storage relative humidity | 5% to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
