N3K-C3232C
Model: N3K-C3232C – Nexus Switches Power Supply
Details: Nexus 3232C 32 x 100G,1RU switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3232C Overview

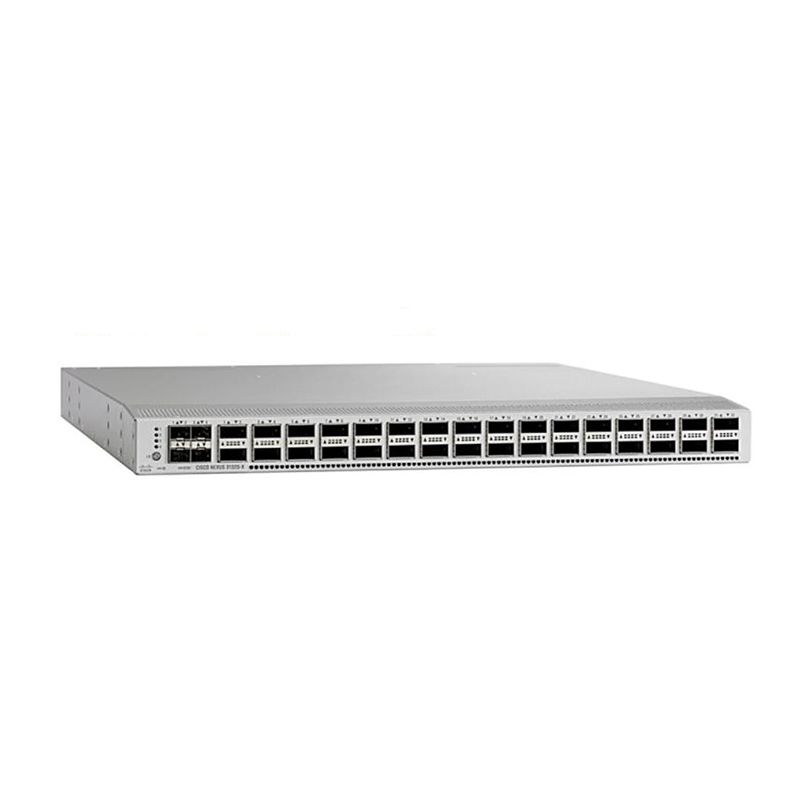

Quick Specs Figure 1 shows the appearance of N3K-C3232C.
Table 1 shows the Quick Specs.
| Physical | · 1RU fixed form-factor switch· 32 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes· 2 redundant power supplies· 4 redundant (3+1) fans· Management, console, and USB flash-memory ports |
| Performance | · 6.4-Tbps switching capacity· Forwarding rate of up to 3.3 bpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames) |
| Hardware tables and scalability | Number of MAC addresses |
| Number of VLANS | 4096 |
| Number of spanning-tree instances | · RSTP: 512· MSTP: 64 |
| Number of ACL entries | · 6000 ingress· 1000 egress |
| Routing table | · Maximum number of longest-prefix-match (LPM) routes: 128,000· Maximum number of IP host entries:72,000· Maximum number of MAC address entries: 136,000· Maximum number of Layer 3 multicast entries: 64,000 |
| Number of EtherChannels | 256 (with vPC) |
| Latency | ~450ns |
| Number of ports per EtherChannel | 32 |
| Buffer size | 16 MB shared |
| System memory | 8 GB |
| Boot-flash memory | 64 GB |
| Power | Frequency |
| Power-supply types | · AC (forward and reverse airflow) |
| Typical operating power | 205 watts (W) |
| Maximum power | 402W |
| AC PSUs· Input voltage· Frequency· Efficiency | · 100 to 240 VAC· 50 to 60 Hz· 89 to 91% at 220V |
| Power-supply efficiency | 89 to 91% at 220V |
| Typical heat dissipation | 700 BTU/hr |
| Maximum heat dissipation | 1371 BTU/hr |
| Cooling | · Forward and reverse airflow schemes◦   Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports)◦   Reverse airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)· Redundant fans· Hot swappable (must swap within 1 minute) |
| Sound | Measured sound power (maximum)· Fan speed: 40% duty cycle· Fan speed: 70% duty cycle· Fan speed: 100% duty cycle |
| Environment | Dimensions (height x width x depth) |
| Weight | 22.2 lb (10.06 kg) |
| Temperature: Operating | 32 to 104°F (0 to 40°C) |
| Temperature: Storage | -40 to 158°F (-40 to 70°C) |
| Relative humidity: Operating | · 10 to 85% noncondensing· Up to 5 days at maximum (85%) humidity· Recommend ASHRAE data center environment |
| Relative humidity: Storage | 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
