N3K-C3264Q
Model: N3K-C3264Q – Cisco Nexus 3000 Series
Details: Nexus 3264Q, 64 QSFP+ ports, 2RU switch
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3264Q Overview

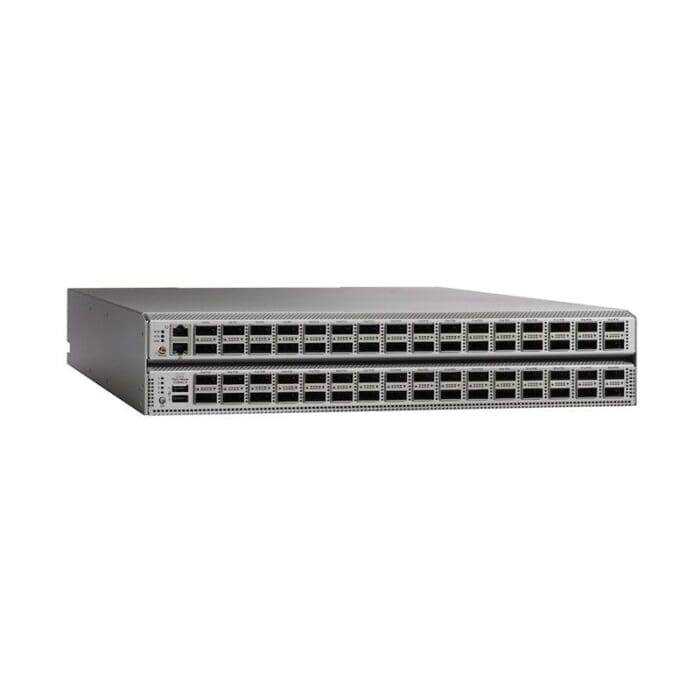

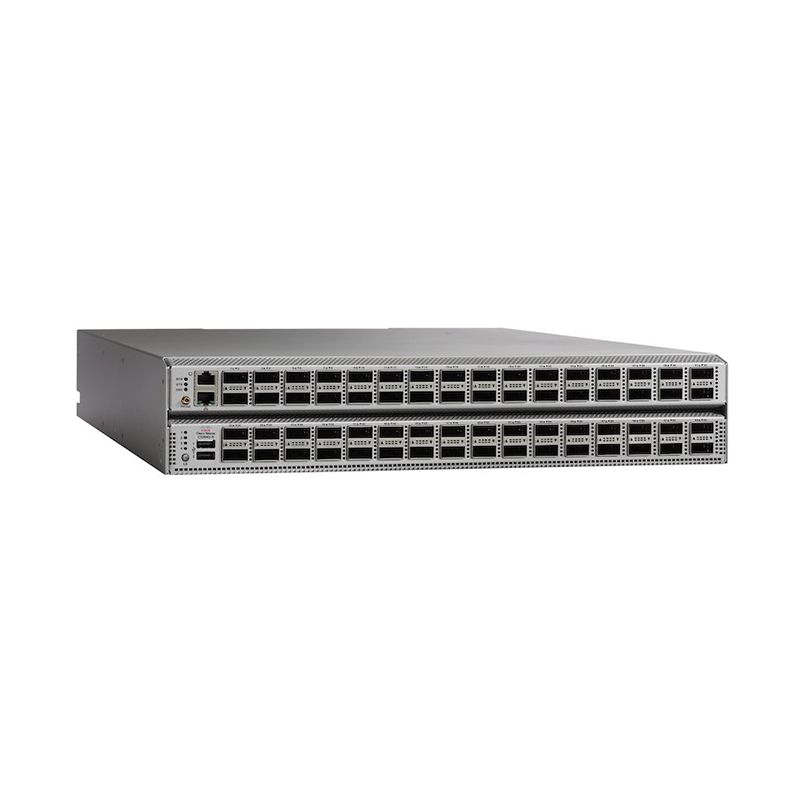

Quick Specs Figure 1 shows the appearance of N3K-C3264Q.
Table 1 shows the Quick Specs.
| Physical | · 2RU fixed form-factor switch· 64 QSFP+ ports; each supports native 40 Gigabit Ethernet.· 2 redundant power supplies· 3+1 redundant fans· Management, console, and USB flash-memory ports |
| Performance | · 5.12 Tbps switching capacity· Forwarding rate up to 3.8 bpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable maximum transmission unit (MTU) of up to 9216 bytes (jumbo frames) |
| Hardware tables and scalability | Number of VLANS |
| Number of spanning-tree instances | · MSTP: 64· RPVST+: 512 |
| Number of access control list (ACL) entries | · 7000 ingress· 1000 egress |
| Routing table | · Maximum number of longest prefix match (LPM) routes: 128K· Maximum number of IP host entries:72K· Maximum number of MAC address entries: 136K· Maximum Number of L3 Multicast: 64K |
| Number of EtherChannels | 256 (With VPC) |
| Number of ports per EtherChannel | 32 |
| Switch ASIC Buffer size | 16 MB shared |
| System memory | 8 GB |
| Log Flash | 64 GB |
| Power | Frequency |
| Power supply types | AC |
| Typical operating power | 285 watts (W) |
| Maximum power | 715W |
| AC PSUs· Input voltage· Frequency· Efficiency | · 200 to 240 VAC· 50 to 60 Hz· 93% at 220V |
| Typical heat dissipation | 2739 BTU/hr (with SR4 optics at 100% load) |
| Maximum heat dissipation | 1160 BTU/hr |
| Cooling | Port-side intake and port-side exhaust optionsPort-side intake: YesPort-side exhaust: Post FCS |
| Dimensions | Dimensions (height x width x depth) |
| Environment | Weight |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Storage temperature | -40 to 158°F (-40 to 70°C) |
| Operating relative humidity | · 10 to 85% noncondensing· Up to 5 days at maximum (85%) humidityRecommend ASHRAE data center environment |
| Storage relative humidity | 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
