N3K-C34180YC
Model: N3K-C34180YC – Cisco Nexus 3000 Series
Details: Nexus 34180YC programmable switch, 48 10/25G SFP and 6 40/100G QSFP28 ports
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C34180YC Overview

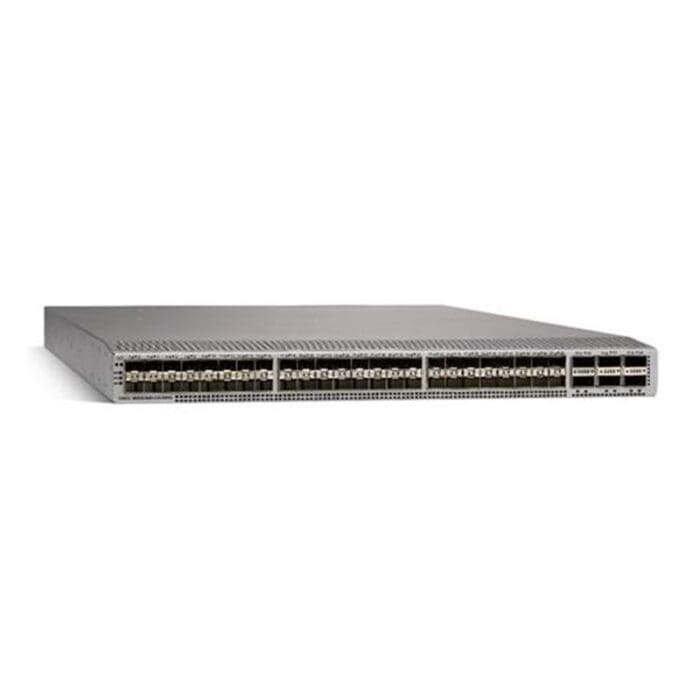

Quick Specs Figure 1 shows the appearance of N3K-C34180YC.
Table 1 shows the Quick Specs.
| Ports | 48 x SFP+/SFP28 and 6 x QSFP+/QSFP28 ports |
| Port speeds | 10 and 25 Gb on SFP ports40, 4×10, 100, and 4×25 Gb on QSFP ports |
| CPU | 4 cores |
| System memory | 16 GB |
| SSD drive | 128 GB |
| System buffer | 20 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies (up to 2) | 500W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC/DC) | 190W |
| Maximum power (AC/DC) | 350W |
| Input voltage AC | 100 to 240V |
| Input voltage(high-voltage AC [HVAC]) | 200 to 277V |
| Input voltage DC | –48 to –60V |
| Input voltage(high-voltage DC [HVDC]) | –240 to –380V |
| Frequency (AC) | 50 to 60Hz |
| Fans | 4 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions(H x W x D) | 1.72 x 17.3 x 22.5 in.(4.4 x 43.9 x 57.1 cm) |
| Weight | 18.4 lb. (8.4 kg) |
| Acoustics | 63.9 dBA at 50% fan speed, 68.9 dBA at 70% fan speed, and 77.4 dBA at 100% fan speed |
| RoHS compliance | Yes |
| MTBF | 347,890 hours |
| LAN Enterprise license (N3K‑LAN1K9) | ·   Layer 3 features, including full OSPF, EIGRP, BGP, and VXLAN |
| Cisco Nexus Data Broker license (NDB-FX-SWT-K9) | ·   License for using the TAP and SPAN aggregation functions with Cisco Nexus Data Broker |
| Cisco ONE™ Foundation for Networking | Cisco ONE Foundation for Networking includes the following integrated products to help you deploy an architecturally flexible data center network:·   Cisco Enterprise Layer 3 Services (LAN)·   Cisco Prime® Infrastructure, Cisco Prime Data Center Network Manager (DCNM), and Cisco Energy Management (JouleX)·   Cisco Intelligent Traffic Director (ITD)·   Cisco Remote Integrated Services Engine (RISE) |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Non-operating (storage) temperature | –40 to 158°F (–40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000 m) |
