Name: N3K-C3524P-XL
SKU: N3K-C3524P-XL
Availability: InStock

N3K-C3524P-XL

Model: N3K-C3524P-XL – Cisco Nexus 3000 Series
Details: Nexus 3524-XL Switch, 24 SFP+
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

N3K-C3524P-XL Overview

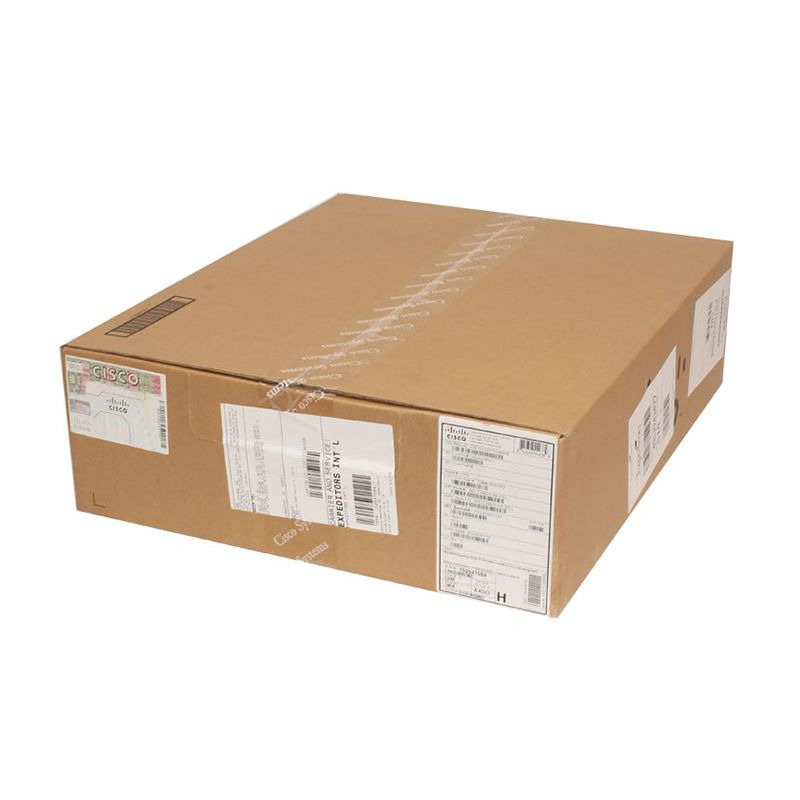

Quick Specs Figure 1 shows the appearance of N3K-C3524P-XL.

Table 1 shows the Quick Specs.

Physical	· 24 fixed SFP+ ports (1 or 10 Gbps); expandable to 48 ports· Dual redundant hot-swappable power supplies· Four individual redundant hot-swappable fans· One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type· One 10/100/1000-Mbps management port· One RS-232 serial console port· Two USB ports· Locator LED· Locator LED button
Performance	· 480-Gbps switching capacity· Forwarding rate of 360 mpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable MTUs of up to 9216 bytes (jumbo frames)
Typical operating power	· 102W
Maximum power	· 193W
Typical heat dissipation	· 348 BTUs per hr
Maximum heat dissipation	· 658 BTUs per hr
Mode	Normal mode
Number of MAC addresses	64,000
Number of IPv4 unicast routes	24,000
Number of IPv4 hosts	64,000
Number of IPv4 multicast routes	8000
Number of VLANS	4096
Number of ACL entries	4096
Number of spanning-tree instances	Rapid Spanning Tree Protocol (RSTP): 512Multiple Spanning Tree (MST) Protocol: 64
Number of EtherChannels	24
Number of ports per EtherChannel	24
Buffer size	6 MB shared among 16 ports; 18 MB total
System memory	16 GB
Boot flash memory	16 GB
Number of power supplies	2 (redundant)
Power supply types	· AC (forward and reversed airflow)· DC (forward and reversed airflow)
Input voltage	100 to 240 VAC
Frequency	50 to 60 Hz
Power supply efficiency	89 to 91% at 220V
Dimensions (height x width x depth)	1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)
Weight	17.4 lb (7.9 kg)
Operating temperature	32 to 104° F (0 to 40°C)
Storage temperature	-40 to 158° F (-40 to 70°C)
Relative humidity (operating)	· 10 to85% noncondensing· Up to 5 days at maximum (85%) humidity· Recommend ASHRAE data center environment
Relative humidity (nonoperating)	5 to 95% noncondensing
Altitude	0 to 10,000 ft (0 to 3000m)

Get more information
Do you have any question about the N3K-C3524P-XL?
Contact us now via Live Chat or sales@metafinitivetech.com

Warrenty Description

100% Low Price Guarantee: Metafinitivetech.com provides high-quality products at low wholesale prices

100% Quality Assurance: All items are ORIGINAL and GENUINE only. Item conditions are “New Sealed” or “Used / Refurbished”. Used & refurbished items are fully tested with good conditions by Cisco-certified Engineers.

Free CCIE Technical Support: Our FREE Cisco CCIE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.

100% Money Back Guarantee: You can contact our customer service team to exchange or return any product that you bought from us.

Flexible Secure Payment & Shipment: Verified authorization: Mcafee Secure, VeriSign Secured

-5%

Click to enlarge

Original price was: $5,831.00.Current price is: $5,539.45.

Add to compare

Add to wishlist

SKU: N3K-C3524P-XL Categories: Cisco Nexus 3000 Series, Cisco Switches, Switches
