N3K-C3548P-10GX
Model: N3K-C3548P-10GX – Cisco Nexus 3000 Series Switch
Details: Nexus 3548-X Switch 48 SFP+ ports, Enhanced
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3548P-10GX Overview

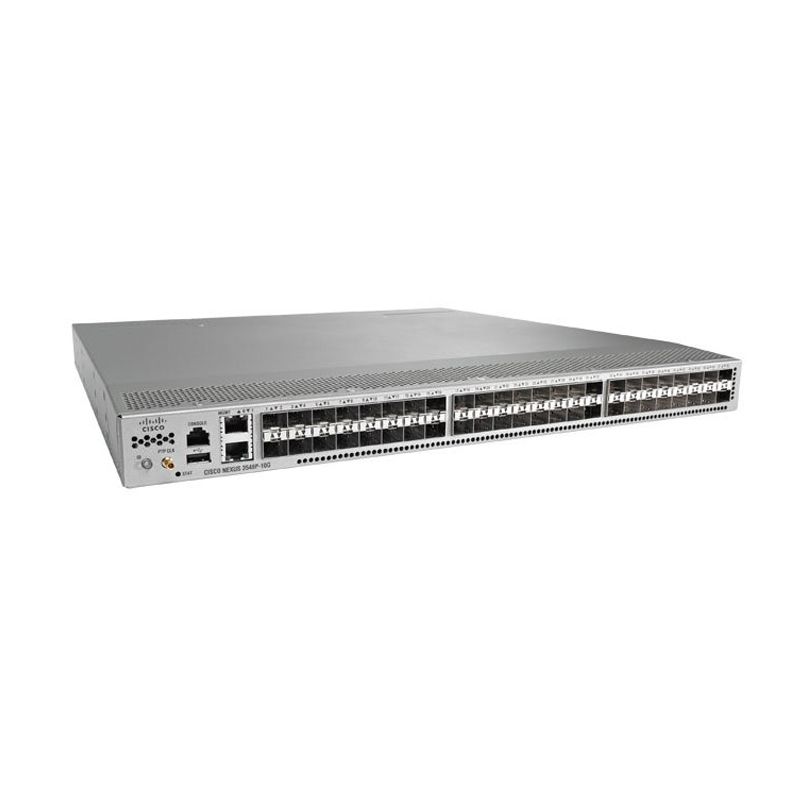

Quick Specs Figure 1 shows the appearance of N3K-C3548P-10GX.
Table 1 shows the Quick Specs.
| Physical | ● 48 fixed SFP+ ports (1 or 10 Gbps)● Dual redundant hot-swappable power supplies● Four individual redundant hot-swappable fans● One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type*● One 10/100/1000-Mbps management port● One RS-232 serial console port● Two USB ports● Locator LED● Locator LED button |
| Performance | ● 960-Gbps switching capacity● Forwarding rate of 720 mpps● Line-rate traffic throughput (both Layer 2 and 3) on all ports● Configurable MTUs of up to 9216 bytes (jumbo frames) |
| Typical operating power | ● 112W |
| Maximum power | ● 213W |
| Typical heat dissipation | ● 383 BTUs per hr |
| Maximum heat dissipation | ● 727 BTUs per hr |
| Hardware tables and scalability | Number of MAC addresses |
| Number of IPv4 unicast routes | 24,000 |
| Number of IPv4 hosts | 64,000 |
| Number of IPv4 multicast routes | 8000 |
| Number of VLANS | 4096 |
| Number of ACL entries | 4096 |
| Number of spanning-tree instances | Rapid Spanning Tree Protocol (RSTP): 512Multiple Spanning Tree (MST) Protocol: 64 |
| Number of EtherChannels | 24 |
| Number of ports per EtherChannel | 24 |
| Buffer size | 6 MB shared among 16 ports; 18 MB total |
| Boot flash memory | 2 GB (3524P and 3548P models)4 GB (3524X and 3548X models) |
| Power | Number of power supplies |
| Power supply types | ● AC (forward and reversed airflow)● DC (forward and reversed airflow) |
| Input voltage | 100 to 240 VAC |
| Frequency | 50 to 60 Hz |
| Power supply efficiency | 89 to 91% at 220V |
| Cooling | Forward and reversed airflow schemes● Forward airflow:Port-side exhaust (air enters through fan tray and power supplies and exits through ports)● Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)Four individual, hot-swappable fans (3+1 redundant) |
| Environment | Dimensions (height x width x depth) |
| Weight | 17.4 lb (7.9 kg) |
| Operating temperature | 32 to 104° F (0 to 40°C) |
| Storage temperature | -40 to 158° F (-40 to 70°C) |
| Relative humidity (operating) | ● 10 to 85% noncondensing● Up to 5 days at maximum (85%) humidity● Recommend ASHRAE data center environment |
| Relative humidity (nonoperating) | 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
| Mean time between failure (MTBF) | 317,030 hours |
| Layer 2 | ● Layer 2 switch ports and VLAN trunks● IEEE 802.1Q VLAN encapsulation● Support for up to 4096 VLANs● Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible)● MSTP (IEEE 802.1s): 64 instances● Spanning Tree PortFast● Spanning Tree Root Guard● Spanning Tree Bridge Assurance● Cisco EtherChannel technology (up to 24 ports per EtherChannel)● LACP: IEEE 802.3ad, IEEE 802.1ax● Advanced PortChannel hashing based on Layer 2, 3, and 4 information● Jumbo frames on all ports (up to 9216 bytes)● Storm control (multicast and broadcast)● Link-level flow control (IEEE 802.3x)● vPC |
| Layer 3 | ● Layer 3 interfaces: Routed ports on interfaces, switch virtual interfaces (SVIs), PortChannels, and subinterfaces (total: 1024)● 24-way Equal-Cost Multipath (ECMP)● 4096 ACL entries● Routing protocols: Static, RIPv2, EIGRP, OSPF, and BGP● HSRP and VRRP● ACL: Routed ACL with Layer 3 and 4 options to match ingress and egress ACLs● VRF: VRF-Lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF‑aware multicast● VRF route leaking● Jumbo frame support (up to 9216 bytes) |
| Multicast | ● Multicast: PIMv2, PIM Sparse Mode (PIM-SM), SSM, and BiDir● Bootstrap router (BSR), Auto-RP, and Static RP● MSDP and Anycast RP● Internet Group Management Protocol (IGMP) Versions 2 and 3 |
| Security | ● Ingress ACLs (standard and extended) on Ethernet● Standard and extended Layer 3 to 4 ACLs include IPv4, Internet Control Message Protocol (ICMP), TCP, and User Datagram Protocol (UDP)● VLAN-based ACLs (VACLs)● Port-based ACLs (PACLs)● Named ACLs● ACLs on virtual terminals (VTYs)● Dynamic Host Configuration Protocol (DHCP) relay● Control Plane Policing (CoPP) |
| Cisco Nexus Data Broker | ● Topology support for tap and SPAN aggregation● Traffic load balancing to multiple monitoring tools● Time stamping using PTP● Packet truncation● Traffic filtering based on Layer 1 through Layer 4 header information● Traffic replication and forwarding to multiple monitoring tools● Robust RBAC● Northbound Representational State Transfer (REST) API for all programmability support |
| Management | ● Power On Auto Provisioning (POAP)● Python scripting● Switch management using 10/100/1000-Mbps management or console ports● CLI-based console to provide detailed out-of-band management● In-band switch management● Locator and beacon LEDs● Configuration rollback● SSHv2● Telnet● AAA● AAA with RBAC● RADIUS● TACACS+● Syslog● Embedded packet analyzer● SNMP v1, v2, and v3● Enhanced SNMP MIB support● XML (NETCONF) support● Remote monitoring (RMON)● Advanced Encryption Standard (AES) for management traffic● Unified username and passwords across CLI and SNMP● Microsoft Challenge Handshake Authentication Protocol (MS-CHAP)● Digital certificates for management between switch and RADIUS server● Cisco Discovery Protocol Versions 1 and 2● RBAC● SPAN on physical, PortChannel, and VLAN● ERSPAN Versions 2 and 3● Ingress and egress packet counters per interface● Network Time Protocol (NTP)● Cisco OHMS● Comprehensive bootup diagnostic tests● Cisco Call Home● Cisco DCNM● Active buffer monitoring● PTP (IEEE 1588) boundary clock |
| MIB support | Generic MIBs● SNMPv2-SMI● CISCO-SMI● SNMPv2-TM● SNMPv2-TC● IANA-ADDRESS-FAMILY-NUMBERS-MIB● IANAifType-MIB● IANAiprouteprotocol-MIB● HCNUM-TC● CISCO-TC● SNMPv2-MIB● SNMP-COMMUNITY-MIB● SNMP-FRAMEWORK-MIB● SNMP-NOTIFICATION-MIB● SNMP-TARGET-MIB● SNMP-USER-BASED-SM-MIB● SNMP-VIEW-BASED-ACM-MIB● CISCO-SNMP-VACM-EXT-MIBEthernet MIBs● CISCO-VLAN-MEMBERSHIP-MIBConfiguration MIBs● ENTITY-MIB● IF-MIB● CISCO-ENTITY-EXT-MIB● CISCO-ENTITY-FRU-CONTROL-MIB● CISCO-ENTITY-SENSOR-MIB● CISCO-SYSTEM-MIB● CISCO-SYSTEM-EXT-MIB● CISCO-IP-IF-MIB● CISCO-IF-EXTENSION-MIB● CISCO-NTP-MIB● CISCO-IMAGE-MIB● CISCO-IMAGE-UPGRADE-MIB |
| Standards | ● IEEE 802.1D: Spanning Tree Protocol● IEEE 802.1p: CoS Prioritization● IEEE 802.1Q: VLAN Tagging● IEEE 802.1s: Multiple VLAN Instances of Spanning Tree Protocol● IEEE 802.1w: Rapid Reconfiguration of Spanning Tree Protocol● IEEE 802.3z: Gigabit Ethernet● IEEE 802.3ad: Link Aggregation Control Protocol (LACP)● IEEE 802.1ax: Link Aggregation Control Protocol (LACP)● IEEE 802.3ae: 10 Gigabit Ethernet● IEEE 802.3ba: 40 Gigabit Ethernet● IEEE 802.1ab: LLDP |
| RFC | BGP● RFC 1997: BGP CommunitiesAttribute● RFC 2385: Protection of BGP Sessions with the TCP MD5 Signature Option● RFC 2439: BGP Route Flap Damping● RFC 2519: A Framework for Inter-Domain Route Aggregation● RFC 2545: Use of BGPv4 Multiprotocol Extensions● RFC 2858: Multiprotocol Extensions for BGPv4● RFC 3065: Autonomous System Confederations for BGP● RFC 3392: Capabilities Advertisement with BGPv4● RFC 4271: BGPv4● RFC 4273: BGPv4 MIB: Definitions of Managed Objects for BGPv4● RFC 4456: BGP Route Reflection● RFC 4486: Subcodes for BGP Cease Notification Message● RFC 4724: Graceful Restart Mechanism for BGP● RFC 4893: BGP Support for Four-Octet AS Number SpaceOSPF● RFC 2328: OSPFVersion 2● 8431RFC 3101: OSPF Not-So-Stubby-Area (NSSA) Option● RFC 3137: OSPF Stub Router Advertisement● RFC 3509: Alternative Implementations of OSPF Area Border Routers● RFC 3623: Graceful OSPF Restart● RFC 4750: OSPF Version 2 MIBRIP● RFC1724: RIPv2 MIB Extension● RFC 2082: RIPv2 MD5 Authentication● RFC 2453: RIP Version 2● IP Services● RFC 768: User Datagram Protocol (UDP)● RFC 783: Trivial File Transfer Protocol (TFTP)● RFC 791: IP● RFC 792: Internet Control Message Protocol (ICMP)● RFC 793: TCP● RFC 826: ARP● RFC 854: Telnet● RFC 959: FTP● RFC 1027: Proxy ARP● RFC 1305: Network Time Protocol (NTP) Version 3● RFC 1519: Classless Interdomain Routing (CIDR)● RFC 1542: BootP Relay● RFC 1591: Domain Name System (DNS) Client● RFC 1812: IPv4 Routers● RFC 2131: DHCP Helper● RFC 2338: VRRPIP Multicast● RFC 2236: InternetGroup Management Protocol, version 2● RFC 3376: Internet Group Management Protocol, Version 3● RFC 3446: Anycast Rendezvous Point Mechanism Using PIM and MSDP● RFC 3569: An Overview of SSM● RFC 3618: Multicast Source Discovery Protocol (MSDP)● RFC 4601: Protocol Independent Multicast – Sparse Mode (PIM-SM): Protocol Specification (Revised)● RFC 4607: Source-Specific Multicast for IP● RFC 4610: Anycast-RP using PIM● RFC 5015: PIM BiDir● RFC 5132: IP Multicast MIB |
