N3K-C3548P-XL
Model: N3K-C3548P-XL – Cisco Nexus 3000 Series
Details: Nexus 3548-XL Switch, 48 SFP+
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C3548P-XL Overview

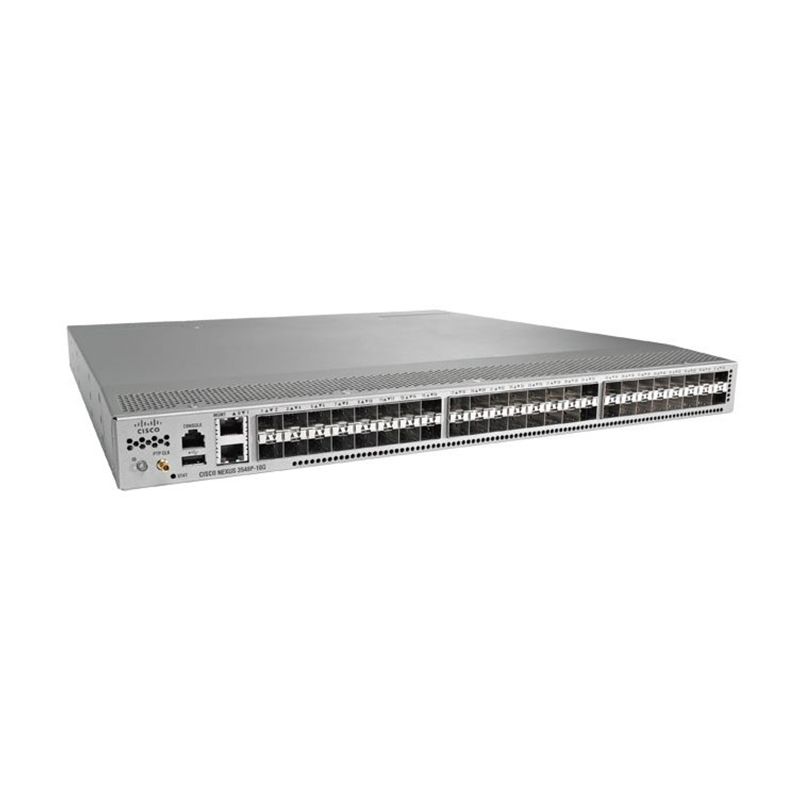

Quick Specs Figure 1 shows the appearance of N3K-C3548P-XL.
Table 1 shows the Quick Specs.
| Physical | · 48 fixed SFP+ ports (1 or 10 Gbps)· Dual redundant hot-swappable power supplies· Four individual redundant hot-swappable fans· One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type· One 10/100/1000-Mbps management port· One RS-232 serial console port· Two USB ports· Locator LED· Locator LED button |
| Performance | · 960-Gbps switching capacity· Forwarding rate of 720 mpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports· Configurable MTUs of up to 9216 bytes (jumbo frames) |
| Typical operating power | · 112W |
| Maximum power | · 213W |
| Typical heat dissipation | · 383 BTUs per hr |
| Maximum heat dissipation | · 727 BTUs per hr |
| Mode | Normal mode |
| Number of MAC addresses | 64,000 |
| Number of IPv4 unicast routes | 24,000 |
| Number of IPv4 hosts | 64,000 |
| Number of IPv4 multicast routes | 8000 |
| Number of VLANS | 4096 |
| Number of ACL entries | 4096 |
| Number of spanning-tree instances | Rapid Spanning Tree Protocol (RSTP): 512Multiple Spanning Tree (MST) Protocol: 64 |
| Number of EtherChannels | 24 |
| Number of ports per EtherChannel | 24 |
| Buffer size | 6 MB shared among 16 ports; 18 MB total |
| System memory | 16 GB |
| Boot flash memory | 16 GB |
| Number of power supplies | 2 (redundant) |
| Power supply types | · AC (forward and reversed airflow)· DC (forward and reversed airflow) |
| Input voltage | 100 to 240 VAC |
| Frequency | 50 to 60 Hz |
| Power supply efficiency | 89 to 91% at 220V |
| Dimensions (height x width x depth) | 1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm) |
| Weight | 17.4 lb (7.9 kg) |
| Operating temperature | 32 to 104° F (0 to 40°C) |
| Storage temperature | -40 to 158° F (-40 to 70°C) |
| Relative humidity (operating) | · 10 to85% noncondensing· Up to 5 days at maximum (85%) humidity· Recommend ASHRAE data center environment |
| Relative humidity (nonoperating) | 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
