N3K-C36180YC-R
Model: N3K-C36180YC-R – Cisco Nexus 3000 Series
Details: Nexus 36180YC-R, 48p 10/25G and 6p QSFP28
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N3K-C36180YC-R Overview

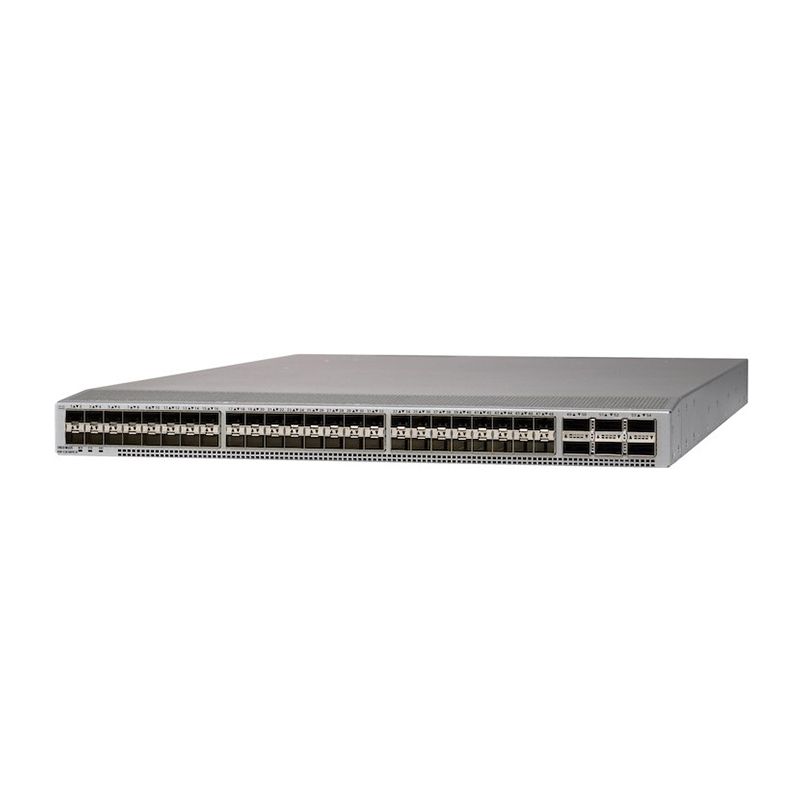

Quick Specs Figure 1 shows the appearance of N3K-C36180YC-R.
Table 1 shows the Quick Specs.
| Physical | · 1RU fixed-form-factor switch· 48 SFP ports; each supports native 25, 10, or 1 Gigabit Ethernet mode· 6 QSFP28 ports; each supports native 100 Gigabit Ethernet and 4 x 25 Gigabit Ethernet modes· 2 redundant power supplies· Management, console, and USB flash-memory ports |
| Performance | · 1.8-Tbps switching capacity· Forwarding rate of up to 1.67 bpps· Line-rate traffic throughput (both Layer 2 and 3) on all ports, for packet size bigger than 115B· Configurable Maximum Transmission Unit (MTU) of up to 9216 bytes (jumbo frames) |
| Hardware tables and scalability | Number of MAC addresses |
| Number of VLANS | 4096 |
| Number of spanning-tree instances | · Rapid Spanning Tree Protocol (RSTP): 512· Multiple Spanning Tree Protocol (MSTP): 64 |
| Number of ACL entries | · 7000 ingress |
| Routing table | · Maximum number of Longest-Prefix-Match (LPM) routes: 256,000· Maximum number of IP host entries: 750,000· Maximum number of MAC address entries: 750,000· Maximum number of Layer 3 multicast entries: 128,000 |
| Number of EtherChannels | 256 (with vPC) |
| Number of ports per EtherChannel | 32 |
| Buffer size | 8 GB |
| System memory | 32 GB |
| Boot-flash memory | 128 GB |
| Frequency | 50 to 60 Hz |
| Power | Power-supply types |
| Typical operating power | Watts (W) |
| Maximum power | 771W |
| AC Power-Supply Units (PSUs)· Input voltage· FrequencyEfficiency | · 100 to 240 VAC· 50 to 60 Hz89 to 91% at 220V |
| · Power-supply efficiency | · 89 to 91% at 220V |
| Maximum heat dissipation | 2,631MBTU |
| Cooling | Measured sound power (maximum)· Fan speed: 40% duty cycle· Fan speed: 70% duty cycle· Fan speed: 100% duty cycle |
| Sound | Dimensions(Height x Width x Depth) |
| Environment | Weight |
| Temperature: Operating | 32 to 104°F (0 to 40°C) |
| Temperature: Storage | –40 to 158°F (–40 to 70°C) |
| Relative humidity: Operating | · 10 to 85% noncondensing· Up to 5 days at maximum (85%) humidityRecommend American Society of Heating, Refrigeration, andAir-Conditioning Engineers (ASHRAE) data center environment |
| Relative humidity: Storage | · 5 to 95% noncondensing |
| Altitude | 0 to 10,000 ft (0 to 3000m) |
