N7K-C7004
Model: N7K-C7004 – Cisco Nexus 7000 Series
Details: Cisco Nexus 7000 Series 4-Slot Chassis including Fan Tray, Cable Management Kit, No Power Supply
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N7K-C7004 Overview

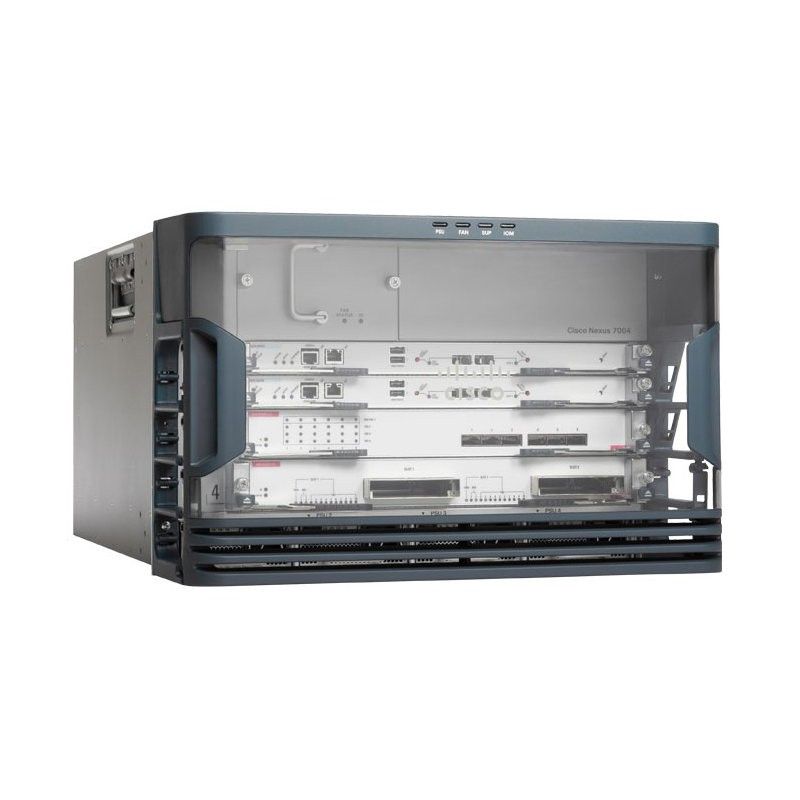

Quick Specs Figure 1 shows the appearance of N7K-C7004.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | N7K-C7004 |
| Series | Cisco Nexus 7000 |
| Chassis Slots | 4 |
| Fan Tray | Included |
| Cable Management Kit | Included |
| Power Supply | Not Included |
| Dimensions (H x W x D) | 12.25 x 17.3 x 33.5 inches |
| Rack Units | 7U |
| Airflow | Front-to-back |
| Cooling Fans | 6 |
| Maximum Power Consumption | 3000 W |
| Operating Temperature | 32��F to 104��F (0��C to 40��C) |
| Storage Temperature | -40��F to 158��F (-40��C to 70��C) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| Network Ports | Up to 96 10-GbE or up to 32 40-GbE |
| Expansion Modules | Supported |
| Redundancy | Control Plane, Data Plane, Power Supply, Fan Tray |
| Compliance | RoHS, NEBS Level 3 |
| Warranty | Limited Lifetime |
