N9K-C92300YC
N9K-C92300YC Original price was: $10,066.00.Current price is: $9,562.70.

N9K-C9236C

Original price was: $19,066.00.Current price is: $18,112.70.

Model: N9K-C9236C – Cisco Nexus 9000 Series
Details: Nexus 9200 with 36p 40G 100G QSFP28
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

SKU: N9K-C9236C Categories: , ,
Description

N9K-C9236C Overview

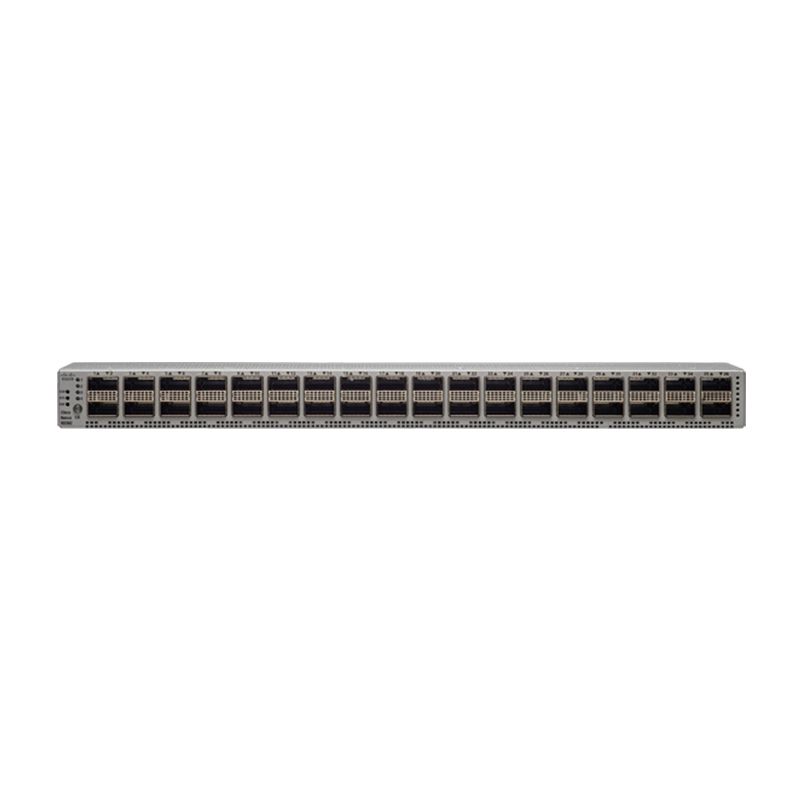

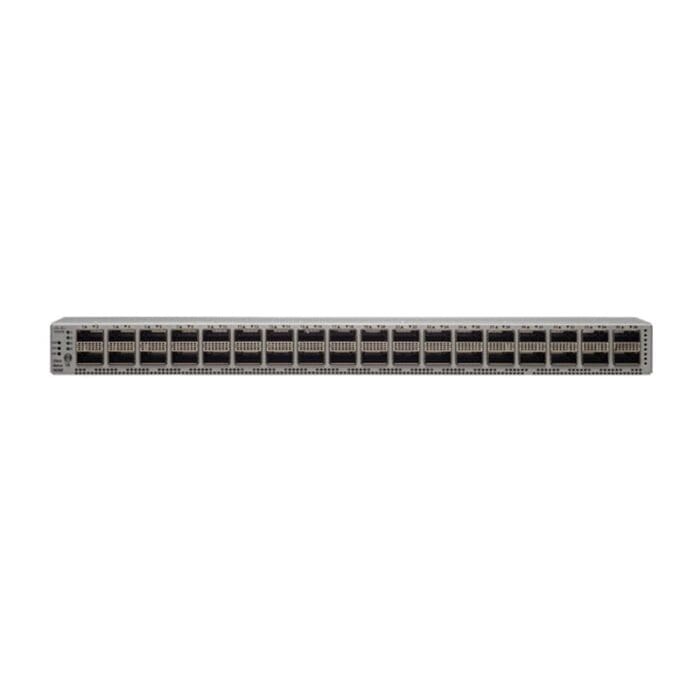

Quick Specs Figure 1 shows the appearance of N9K-C9236C.

Table 1 shows the Quick Specs.

Ports 36 x 100-Gbps QSFP28 ports
Supported speeds 1, 10, 25, 40, 50, and 100 Gbps
Port configuration 36 fixed QSFP28 ports, with each being individually configured into 1 x 100 Gbps, 4 x 10 Gbps, 4 x 25 Gbps, 1 x 40 Gbps, or 2 x 50 Gbps ports
Telemetry support –
CPU 4 cores
System memory 16 GB
Solid-State Disk (SSD) drive 64 GB
Shared system buffer 30 MB
Management ports 3 RJ-45 ports
USB ports 1
RS-232 serial ports 1
Power supplies (PSU – up to 2) 930W DC, 650W AC, or 1200W HVAC/DC
Typical power (AC) 275W
Maximum power (AC) 640W
Input voltage (AC) 100 to 240V
Input voltage (HVAC) 200 to 277V
Input voltage (DC) –40 to –72V DC (minimum and maximum) -48 to –60V DC (nominal)
Input voltage (HVDC) 240 to 380V
Frequency (AC) 50 to 60 Hz
Fans 4
Airflow Port-side intake and exhaust
MTBF (hours) 399,300
Physical (H x W x D) 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm)
Acoustics 58.8 dBA 40% fan speed, 65.3 dBA at 70% fan speed, and 69.6 dB at 100% fan speed
RoHS compliance Yes
Weight 18.2 lb (8.3 kg) (without power supplies or fans)
