N9K-C93108TC-EX

Original price was: $14,564.00.Current price is: $13,835.80.

Model: N9K-C93108TC-EX – Cisco Nexus 9000 Switches
Details: Cisco Nexus 93108TC-EX, Nexus 9K,48p 10GT, 6p 100G QSFP28,Spare(No Acc kit,PS&fan)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: N9K-C93108TC-EX Categories: , ,
Description

N9K-C93108TC-EX Overview

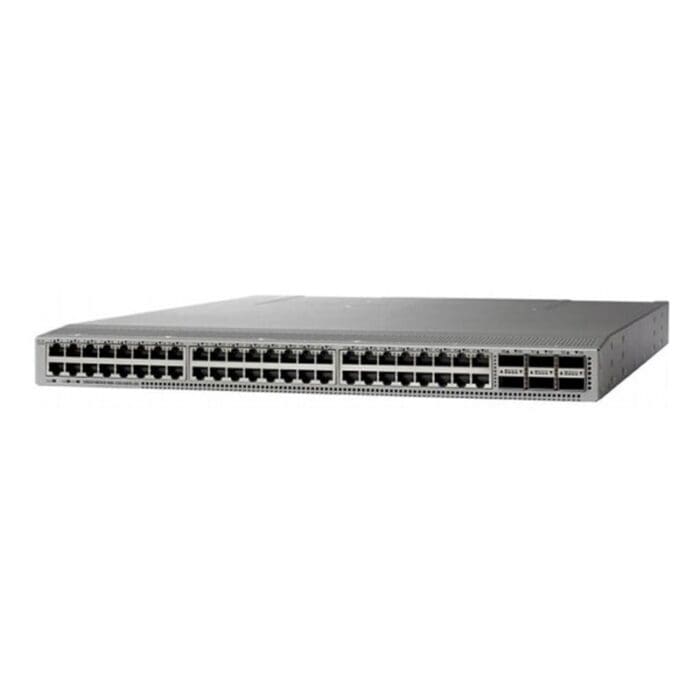

Quick Specs Figure 1 shows the appearance of N9K-C93108TC-EX.

Table 1 shows the Quick Specs.

Ports 48 x 10GBASE-T and 6 x 40/100-Gbps QSFP28 ports
Downlink supported speeds 100-Mbps and 1/10-Gbps speeds
CPU 4 cores
System memory 24 GB
SSD drive 64 GB
System buffer 40 MB
Management ports 2 ports: 1 RJ-45 and 1 SFP
USB ports 1
RS-232 serial ports 1
Power supplies (up to 2) 650W AC, 930W DC, or 1200W HVAC/HVDC
Typical power (AC/DC) 290W
Maximum power (AC/DC) 499W
Input voltage (AC) 100 to 240V
Input voltage(high-voltage AC [HVAC]) 200 to 277V
Input voltage (DC) –48 to –60V
Input voltage(high-voltage DC [HVDC]) –240 to –380V
Frequency (AC) 50 to 60 Hz
Fans 4
Airflow Port-side intake and exhaust
Physical dimensions(H x W x D) 1.72 x 17.3 x 22.5 in.(4.4 x 43.9 x 57.1 cm)
Acoustics 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dBA at 100% fan speed
RoHS compliance Yes
MTBF 366,130 hours
Maximum number of Longest Prefix Match (LPM) routes 896,000
Maximum number of IP host entries 896,000
Maximum number of MAC address entries 256,000
Maximum number of multicast routes 32,000
Number of Interior Gateway Management Protocol (IGMP) snooping groups Shipping: 8,000Maximum: 32,000
Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch 16
Maximum number of Access Control List (ACL) entries Per slice of the forwarding engine:4000 ingress2000 egressTotal (2 forwarding slices):8000 ingress4000 egress
Maximum number of VLANs 3,967
Number of Virtual Routing and Forwarding (VRF) instances Shipping: 1,000Maximum: 16,000
Maximum number of ECMP paths 64
Maximum number of port channels 512
Maximum number of links in a port channel 32
Number of active SPAN sessions 4
Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances 3,967
Maximum number of Hot-Standby Router Protocol (HSRP) groups 490
Number of Network Address Translation (NAT) entries 1,023
Maximum number of Multiple Spanning Tree (MST) instances 64
Flow-table size used for Cisco Tetration Analytics platform 64,000
Operating temperature 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature –40 to 158°F (–40 to 70°C)
Humidity 5 to 95% (noncondensing)
Altitude 0 to 13,123 ft (0 to 4000m)
Weight (without power supplies or fans) 17.7 lb (8.0 kg)
