N9K-C93128TX-B18Q
Model: N9K-C93128TX-B18Q Switch
Details: 2 Nexus 93128TX with 8 QSFP-40G-SR-BD
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C93128TX-B18Q Overview

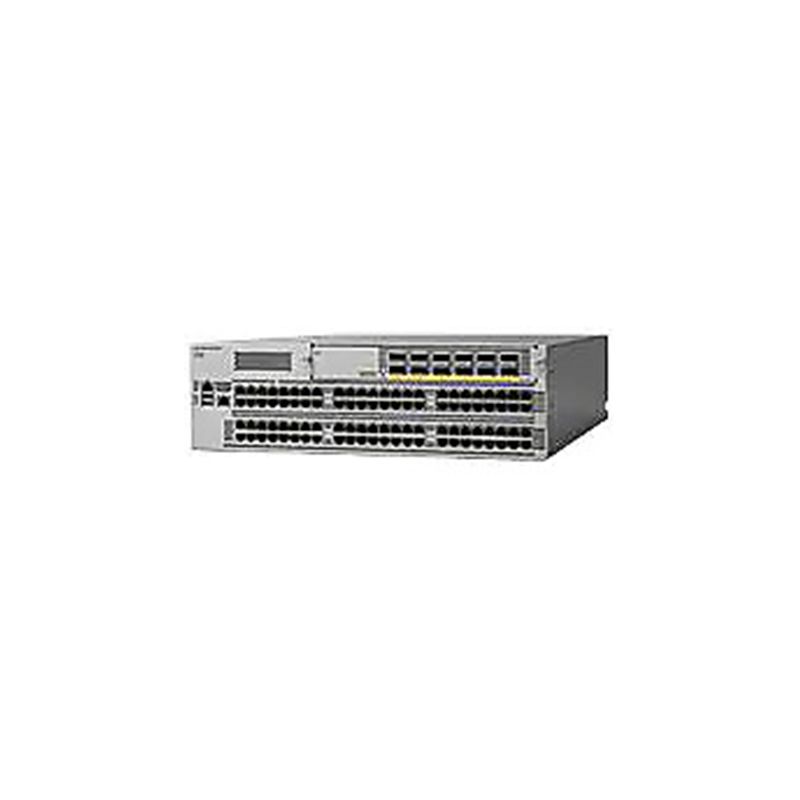

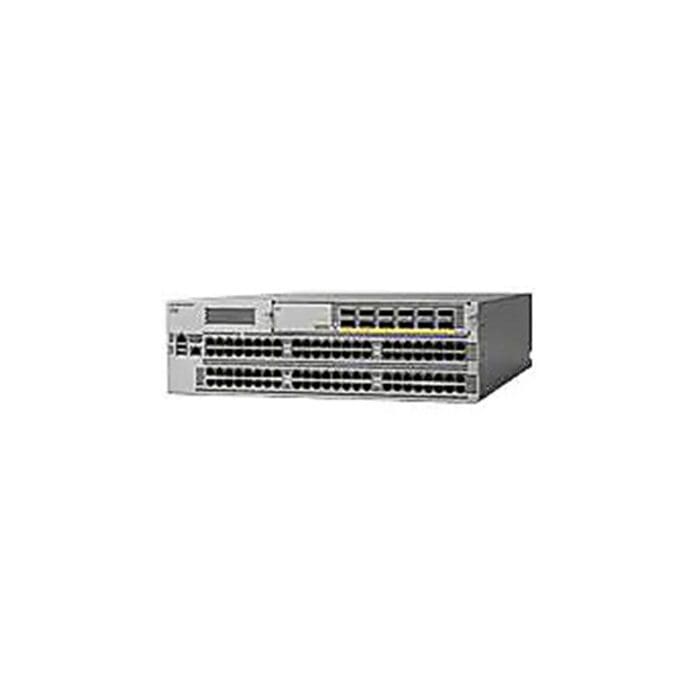

Quick Specs Figure 1 shows the appearance of N9K-C93128TX-B18Q.
Table 1 shows the Quick Specs.
| Ports | 96 fixed 1/10GBASE-T ports |
| Supported speeds | 100 Megabit Ethernet and 1/10 Gigabit Ethernet speeds |
| 40 Gigabit Ethernet uplink ports | 6 or 8 QSFP+ ports active through the uplink module |
| 100 Gigabit Ethernet uplink ports | Customer can have 100 Gigabit Ethernet uplink connectivity to spine switches or routers through the N9K-M4PC- uplink module, with CPF2 optics as well as the Cisco CPAK®100-Gbps module through converters. |
| Power supplies (up to 2) | 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC) | 582W |
| Maximum power (AC) | 853W |
| Input voltage (AC) | 100 to 120V (maximum output 800W)200 to 240V (maximum output 1200W) |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | –48 to –60V |
| Input voltage (HVDC) | –240 to –380V |
| Frequency (AC) | 47 to 63 Hz |
| Fans | 3 |
| Physical (H x W x D) | 5.3 x 17.5 x 22.5 in.(13.3 x 44.5 x 57.1 cm) |
| Acoustics | 71.4 dBA at 40% fan speed, 80.2 dBA at 70% fan speed, and 85.7 dB at 100% fan speed |
| RoHS compliance | Yes |
