N9K-C93216TC-FX2=
Model: N9K-C93216TC-FX2= – Cisco Nexus 9300 Switch
Details: Nexus 9300 with 96p 10G-T, 12p 100G QSFP, MACsec capable
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
N9K-C93216TC-FX2= Overview

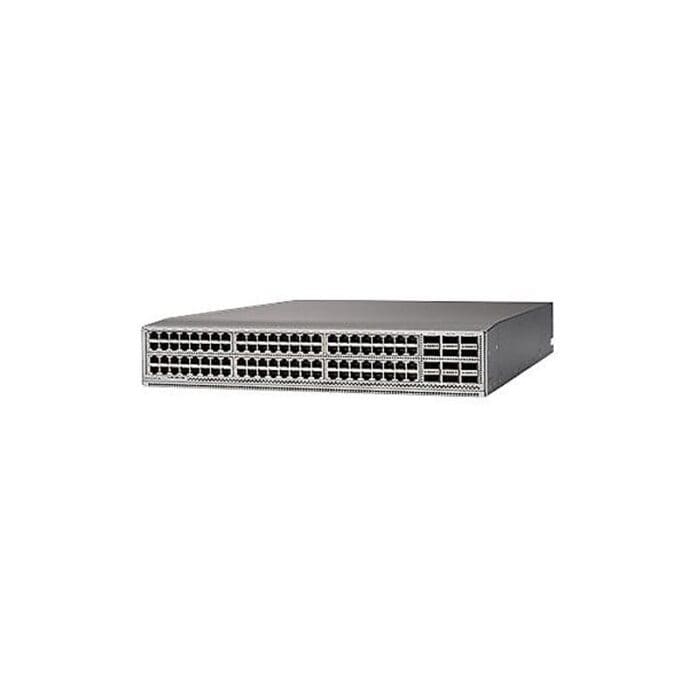

Quick Specs Figure 1 shows the appearance of N9K-C93216TC-FX2=.
Table 1 shows the Quick Specs.
| Item | N9K-C93216TC-FX2= |
| Ports | 96 x 100M/1/10GBASE-T ports and 12 x 40/100-Gbps QSFP28 ports |
| Supported speeds | 100M/1/10 Gbps RJ45 downlinks40/100-Gbps on uplinksBreakout supported ports, 97-108: 4×10/25G |
| CPU | 4 cores |
| System memory | Up to 24 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Power supplies(up to 2) | 1200W AC, 1200W HVAC/HVDC |
| Typical power (AC) | 580W |
| Maximum power (AC) | 965W |
| Fans | 3 fan trays |
| Physical dimensions(H x W x D) | 3.38 x 17.41 x 23.6 in (8.59 x 44.2 x 59.9 cm) |
| Maximum number of Longest Prefix Match (LPM) routes** | 896,000 |
| Maximum number of IP host entries** | 896,000 |
| Maximum number of MAC address entries** | 256,000 |
| Maximum number of multicast routes | 128,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8,000Maximum: 32,000 |
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries | Per slice of the forwarding engine:5000 ingress2000 egress |
| Maximum number of VLANs | 4096 |
| Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
| Number of Queues | 8 |
