N9K-C93240YC-FX2
Model: N9K-C93240YC-FX2 – Cisco Nexus 9000 Series
Details: Nexus 9K Fixed with 48p 1/10G/25G SFP and 12p 40G/100G QSFP28
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C93240YC-FX2 Overview

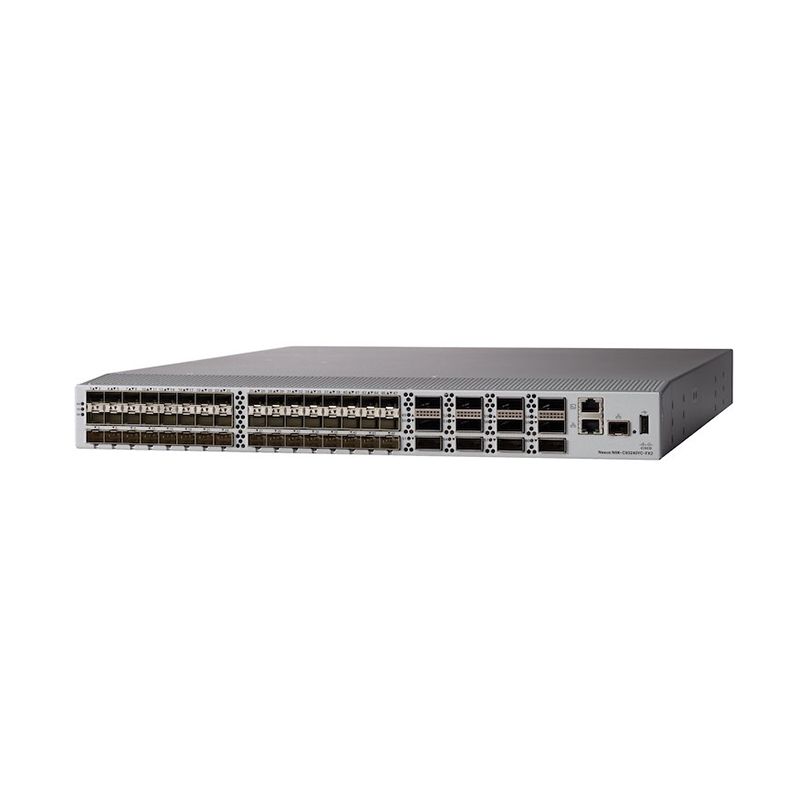

Quick Specs Figure 1 shows the appearance of N9K-C93240YC-FX2.
Table 1 shows the Quick Specs.
| Item | Cisco Nexus 9300-FX2 Series Switches |
| Feature | Cisco Nexus 93240YC-FX2 |
| Ports | 48 x 1/10/25-Gbps and 12 x 40/100-Gbps QSFP28 ports |
| Supported speeds | 1/10/25-Gbps on downlinks40/100-Gbps on uplinks |
| CPU | 4 cores |
| System memory | Up to 24 GB |
| SSD drive | 128 GB |
| System buffer | 40 MB |
| Management ports | 2 ports: 1 RJ-45 and 1 SFP+ |
| USB ports | 1 |
| RS-232 serial ports | 1 |
| Power supplies(up to 2) | 750W AC*, 1100W AC, 1100W DC, 1100W HVAC/HVDC |
| Typical power (AC) | 298W |
| Maximum power (AC) | 708W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (High-Voltage AC [HVAC]) | 100 to 277V |
| Input voltage (DC) | –40 to –72V |
| Input voltage (High-Voltage DC [HVDC]) | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 5 |
| Airflow | Port-side intake and exhaust |
| Physical dimensions(H x W x D) | 2.1 x 17.3 x 23.3 in. (5.3 x 43.9 x 59.1 cm) |
| MTBF | 365,610 hours |
| Maximum number of Longest Prefix Match (LPM) routes** | 896,000 |
| Maximum number of IP host entries** | 896,000 |
| Maximum number of MAC address entries** | 256,000 |
| Maximum number of multicast routes | 128,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | Shipping: 8,000Maximum: 32,000 |
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Maximum number of Access Control List (ACL) entries | Per slice of the forwarding engine:5000 ingress2000 egress |
| Maximum number of VLANs | 4096 |
| Number of Virtual Routing and Forwarding (VRF) instances | Shipping: 1,000Maximum: 16,000 |
| Maximum number of ECMP paths | 64 |
| Maximum number of port channels | 512 |
| Maximum number of links in a port channel | 32 |
| Number of active SPAN sessions | 4 |
| Maximum number of VLAN’s in Rapid per-VLAN Spanning Tree (RPVST) instances | 3,967 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Number of Network Address Translation (NAT) entries | 1,023 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Flow-table size used for Cisco Tetration Analytics platform | 64,000 |
| Number of Queues | 8 |
