N9K-C9332PQ
Model: N9K-C9332PQ – Cisco Nexus 9000 Series
Details: Nexus 9300 with 32p 40G QSFP
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C9332PQ Overview

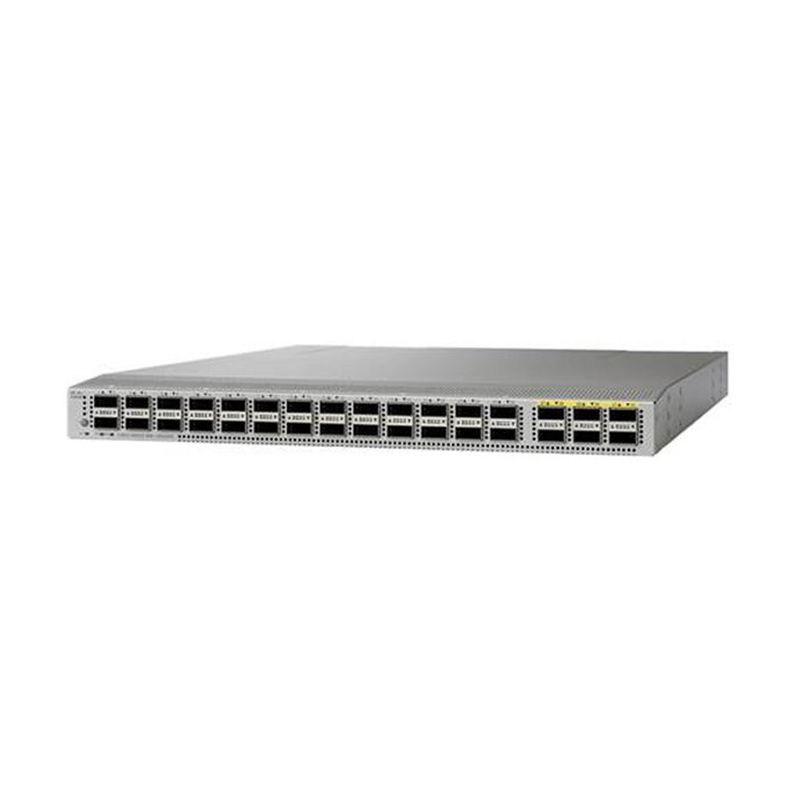

Quick Specs Figure 1 shows the appearance of N9K-C9332PQ.
Table 1 shows the Quick Specs.
| Ports | 32 QSFP+ ports |
| Supported speeds | 40 Gigabit Ethernet speeds |
| Power supplies (up to 2) | 650-watt (W) AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power (AC) | 228W |
| Maximum power (AC) | 508W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | -40V to -72V DC (min-max)-48V to -60V DC (nominal) |
| Input voltage (HVDC) | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4Â x 43.9 x 57.1 cm) |
| Acoustics | 49.1 dBA at 40% fan speed, 65.6 dBA at 70% fan speed, and 78.5 dB at 100% fan speed |
| RoHS compliance | Yes |
| Weight | 22 lb (10.0 kg) (without power supplies or fans) |
