N9K-C9336PQ
Model: N9K-C9336PQ – Cisco Nexus 9000 Series
Details: Nexus 9336 ACI Spine switch with 36p 40G QSFP
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C9336PQ Overview

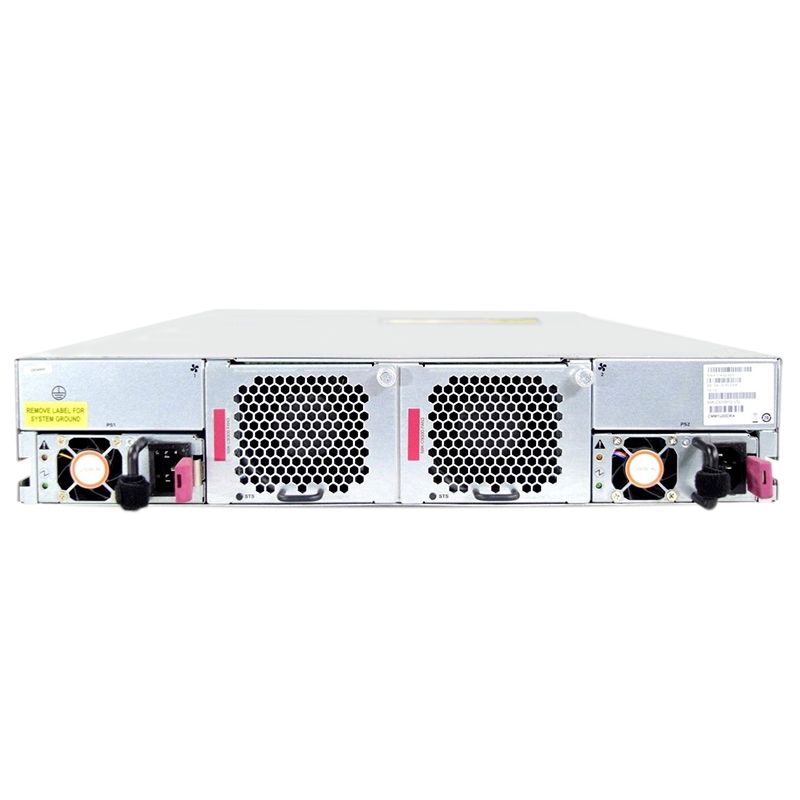

Quick Specs Figure 1 shows the appearance of N9K-C9336PQ.
Table 1 shows the Quick Specs.
| Physical | ● 36-port 40G QSFP ports● 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)● 80 Plus Platinum-rated power supplies that provide at least 90% efficiency with 20% utilization● Hot-swappable, dual fan trays with redundant fans● Port-side intake or Port side exhaust airflow direction● System memory: 16GB● SSD: 64GB● USB: 2 ports● RS-232 serial console ports: 1● Management ports: 1 x 10/100/1000BASE-T |
| Power and Cooling | ● Power: 1200W AC, 930W DC or 1200W HVAC/HVDC● Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal)*Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W● Frequency: 50 to 60 Hz (AC)● Efficiency: 90% or greater(20 to 100% load)● RoHS compliance: Yes● Hot swappable: Yes● Port-side intake or port-side exhale options● Typical power: 400W (AC)● Maximum power: 660W (AC) |
| Environmental | ● Physical (H x W x D): 3.5 x 17.5 x 22.5 in. (8.9 x 44.5 x 57.1 cm)● Weight: 34.4 lb● Operating temperature: 32 to 104°F (0 to 40°C)● Nonoperating (storage) temperature: -40 to 158°F (-40 to 70°C)● Humidity: 5 to 95% (noncondensing)● Altitude: 0 to 13,123 ft (0 to 4000m) |
| Acoustics | ● Fan speed at 40%: 64.4 dBA● Fan speed at 70%: 79.6 dBA● Fan speed at 100%: 89.8 dBA |
| MTBF | ● 242,000 hours |
| Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety | ● UL 60950-1 Second Edition● CAN/CSA-C22.2 No. 60950-1 Second Edition● EN 60950-1 Second Edition● IEC 60950-1 Second Edition● AS/NZS 60950-1● GB4943 |
| EMC: Emissions | ● 47CFR Part 15 (CFR 47) Class A● AS/NZS CISPR22 Class A● CISPR22 Class A● EN55022 Class A● ICES003 Class A● VCCI Class A● EN61000-3-2● EN61000-3-3● KN22 Class A● CNS13438 Class A |
| EMC: Immunity | ● EN55024● CISPR24● EN300386● KN 61000-4 series |
| RoHS | The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and leadpress-fit connectors |
