N9K-C9364C
Model: N9K-C9364C – Cisco Nexus 9000 Series
Details: Nexus 9364C ACI Spine switch with 64p 40/100G QSFP28
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C9364C Overview

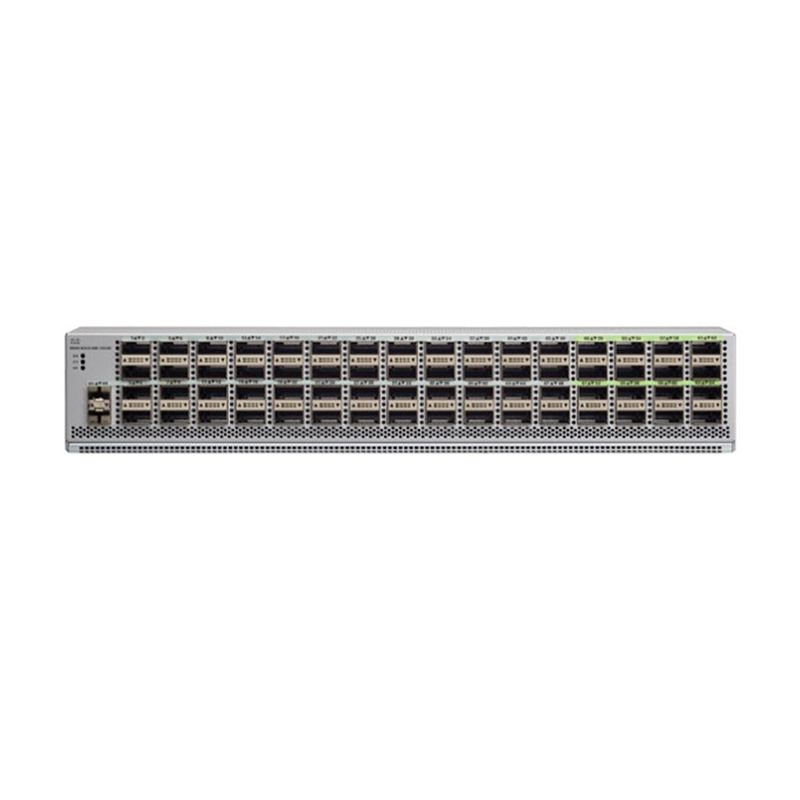

Quick Specs Figure 1 shows the appearance of N9K-C9364C.
Table 1 shows the Quick Specs.
| Physical | ● 64-port 40/100G QSFP28 ports & 2-port 1/10G SFP+ ports● 1200 watt (W) AC power supplies or 930W DC power supplies (up to 2)● Hot-swappable, dual fan trays with redundant fans● System memory: 32GB● SSD: 256GB● USB: 1 port● RS-232 serial console ports: 1● Management ports:2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP+)● Broadwell-DE CPU: 4 cores |
| Power and Cooling | ● Power: 1200W AC, 930W DC or 1200W HVAC/HVDC● Input voltage: 100 to 240V* AC or -40V to -72V DC (min‑max), -48V to -60V DC (nominal)*Supports input voltage of 100-120V for a max output of 800W; 200-240V for a max output of 1200W; PSU redundancy is not supported when used in 100-120V● Frequency: 50 to 60 Hz (AC)● Efficiency: 90% or greater (20 to 100% load)● RoHS compliance: Yes● Hot swappable: Yes● Port-side intake or port-side exhale options● Typical power: 429W (AC)● Maximum power: 1245W (AC) |
| Environmental | ● Physical (H x W x D): 3.38 x 17.37 x 22.27 in. (8.59 x 44.13 x 56.58 cm)● Weight: 36.9lb (16.74kg) with power supplies and fans, 27.4 lb (12.43kg) without power supplies and fans● Operating temperature: 32 to 104°F (0 to 40°C)● Nonoperating (storage) temperature: -40 to 158°F(-40 to 70°C)● Humidity: 5 to 85% (noncondensing)● Altitude: 0 to 13,123 ft (0 to 4000m) |
| Acoustics | ● Fan speed at 40%: 76.7 dBA● Fan speed at 70%: 88.7 dBA● Fan speed at 100%: 97.4 dBA |
| MTBF | ● 257,860 hours |
| Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety | ● UL 60950-1 Second Edition● CAN/CSA-C22.2 No. 60950-1 Second Edition● EN 60950-1 Second Edition● IEC 60950-1 Second Edition● AS/NZS 60950-1● GB4943 |
| EMC: Emissions | ● 47CFR Part 15 (CFR 47) Class A● AS/NZS CISPR22 Class A● CISPR22 Class A● EN55022 Class A● ICES003 Class A● VCCI Class A● EN61000-3-2● EN61000-3-3● KN22 Class A● CNS13438 Class A |
| EMC: Immunity | ● EN55024● CISPR24● EN300386● KN 61000-4 series |
| RoHS | The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and leadpress-fit connectors |
