-5%
N9K-C9372PX-E
Model: N9K-C9372PX-E – Cisco Nexus 9000 Series Switch
Details: Nexus 9300 Switch with 48p 10G SFP+ and 6p 40G QSFP+, a minor hardware revision of Nexus 9372PX
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C9372PX-E Overview

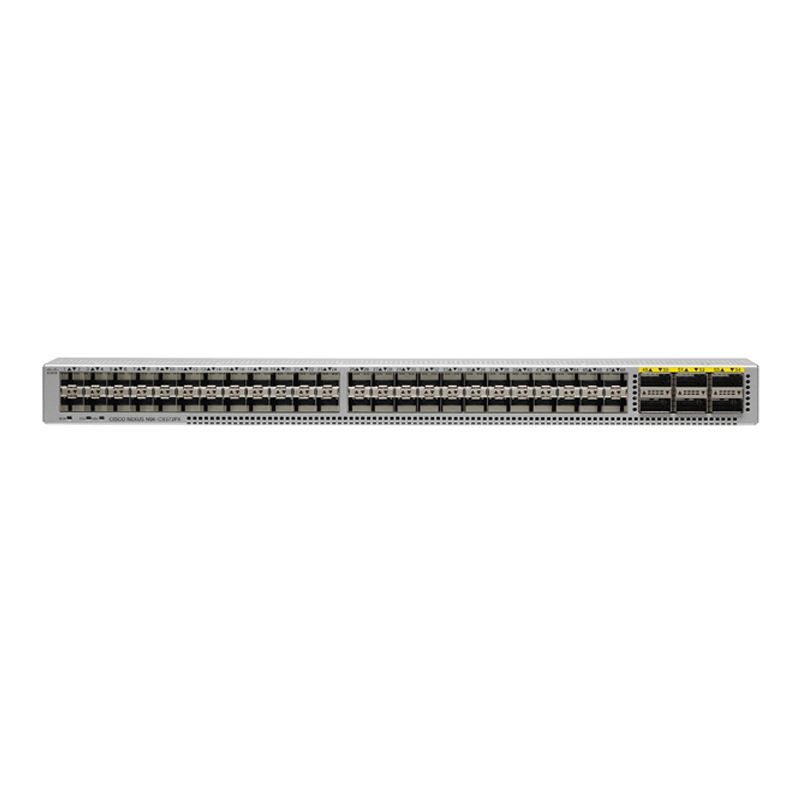

Quick Specs Figure 1 shows the appearance of N9K-C9372PX-E.
Table 1 shows the Quick Specs.
| Ports | 48 fixed 1/10-Gbps SFP+ and 6 QSFP+ ports |
| Supported speeds | 1/10 Gigabit Ethernet speeds |
| 40 Gigabit Ethernet uplink port | 6 fixed QSFP+ ports |
| Power supplies (up to 2) | 650W AC, 930W DC, or 1200W HVAC/HVDC |
| Typical power*(AC & DC) | 210W |
| Maximum power* (AC & DC) | 537W |
| Input voltage (AC) | 100 to 240V |
| Input voltage (HVAC) | 200 to 277V |
| Input voltage (DC) | -40V to -72V DC (min-max)-48V to -60V DC (nominal) |
| Input voltage (HVDC) | –240 to –380V |
| Frequency (AC) | 50 to 60 Hz |
| Fans | 4 |
| Physical (H x W x D) | 1.72 x 17.3 x 22.5 in. (4.4 x 43.9 x 57.1 cm) |
| Acoustics | 48.5 dBA at 40% fan speed, 64.9 dBA at 70% fan speed, and 77.8 dB at 100% fan speed |
| RoHS compliance | Yes |
| Maximum number of longest prefix match (LPM) routes | 128,000* |
| Maximum number of IP host entries | 208,000* |
| Maximum number of MAC address entries | 96,000* |
| Number of multicast routes | ● 32,000 (without virtual PortChannel [vPC])● 32,000 (with vPC) |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups | ● 32,000 (without vPC)● 32,000 (with vPC) |
| Maximum number of Cisco Nexus 2000 Series Fabric Extenders per switch | 16 |
| Number of access control list (ACL) entries | ● 4000 ingress● 1000 egress |
| Maximum number of VLANs | 4096 |
| Maximum number of Virtual Routing and Forwarding (VRF) instances | 1000 |
| Maximum number of links in a PortChannel | 32 |
| Maximum number of ECMP paths | 64 |
| Maximum number of PortChannels | 528 |
| Number of active SPAN sessions | 4 |
| Maximum number of Rapid per-VLAN Spanning Tree (RPVST) instances | 507 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups | 490 |
| Maximum number of Multiple Spanning Tree (MST) instances | 64 |
| Maximum number of VXLAN tunnel endpoints (VTEP) | 256 |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | -40 to 158°F (-40 to 70°C) |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Cisco Nexus 9372PX/9372PX-E without power supplies or fans | 22.2 lb (10.1 kg) |
| Cisco Nexus 9372TX/9372TX-E without power supplies or fans | 22.6 lb (10.25 kg) |
| Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety | ● UL 60950-1 Second Edition● CAN/CSA-C22.2 No. 60950-1 Second Edition● EN 60950-1 Second Edition● IEC 60950-1 Second Edition● AS/NZS 60950-1● GB4943 |
| EMC: Emissions | ● 47CFR Part 15 (CFR 47) Class A● AS/NZS CISPR22 Class A● CISPR22 Class A● EN55022 Class A● ICES003 Class A● VCCI Class A● EN61000-3-2● EN61000-3-3● KN22 Class A● CNS13438 Class A |
| EMC: Immunity | ● EN55024● CISPR24● EN300386● KN 61000-4 series |
| RoHS | The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors |
