N9K-C9504-B3
Model: N9K-C9504-B3 – Cisco Nexus 9500 Series
Details: Cisco Nexus 9504 Chassis Bundle with 1 Sup, 3 PS, 2 SC, 4 FM, 3 FT
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C9504-B3 Overview

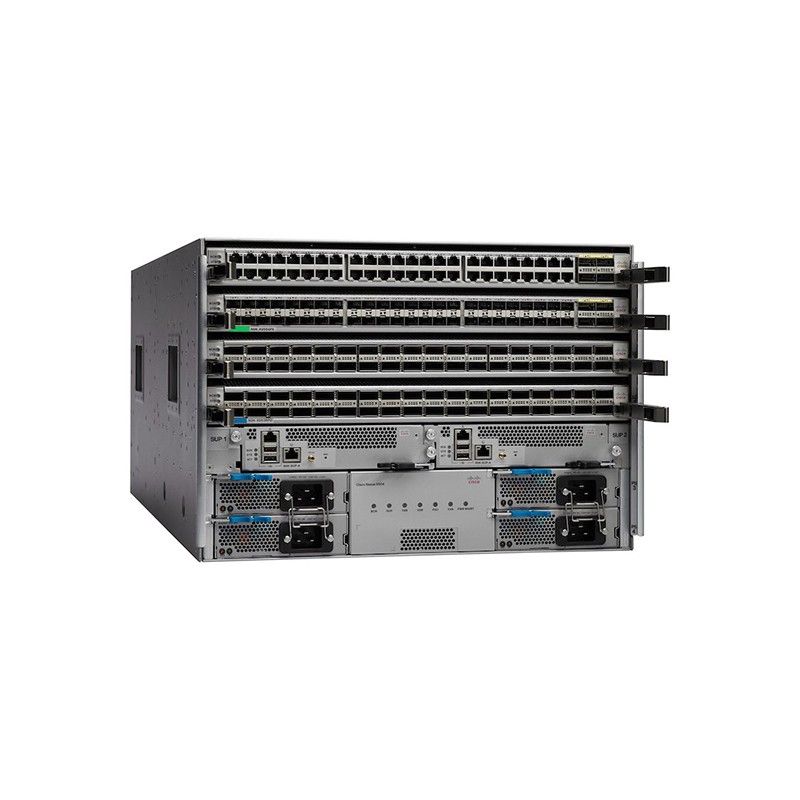

Quick Specs Figure 1 shows the appearance of N9K-C9504-B3.
Table 1 shows the Quick Specs.
| Product Brand | Cisco |
| Product Name | Nexus 9504 Chassis Bundle |
| Supervisor Engine | 1 Sup |
| Power Supplies | 3 PS |
| System Controllers | 2 SC |
| Fabric Modules | 4 FM |
| Fan Trays | 3 FT |
| Chassis Height | 7 RU |
| Maximum Line Cards | 4 |
| Ports | Up to 288 40-Gbps or 1152 10-Gbps ports |
| Switching Capacity | Up to 30 Tbps |
| Forwarding Rate | Up to 720 Mpps |
| Redundancy | N+1 for power supplies; N+1 for fabric modules |
| Airflow | Front-to-back |
| Power Consumption | 1500-2000 Watts per logical system |
| Cooling | Front-to-back airflow |
| Configuration | 1 Supervisor, 3 Power Supplies, 2 System Controllers, 4 Fabric Modules, 3 Fan Trays |
| Dimensions (H x W x D) | 12.25 x 17.3 x 30.7 inches (31.1 x 43.9 x 78.1 cm) |
| Chassis Type | Modular |
| Mounting | Rack-mountable |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Relative Humidity | 5% to 95% non-condensing |
| Software Compatibility | Cisco NX-OS Software |
