N9K-C9508-B3-E
Model: N9K-C9508-B3-E – Cisco Nexus 9500 Series
Details: Cisco Nexus 9508 Chassis Bundle with 1 SupB, 3 PS, 2 SC, 4 FM-E, 3 Fan
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C9508-B3-E Overview

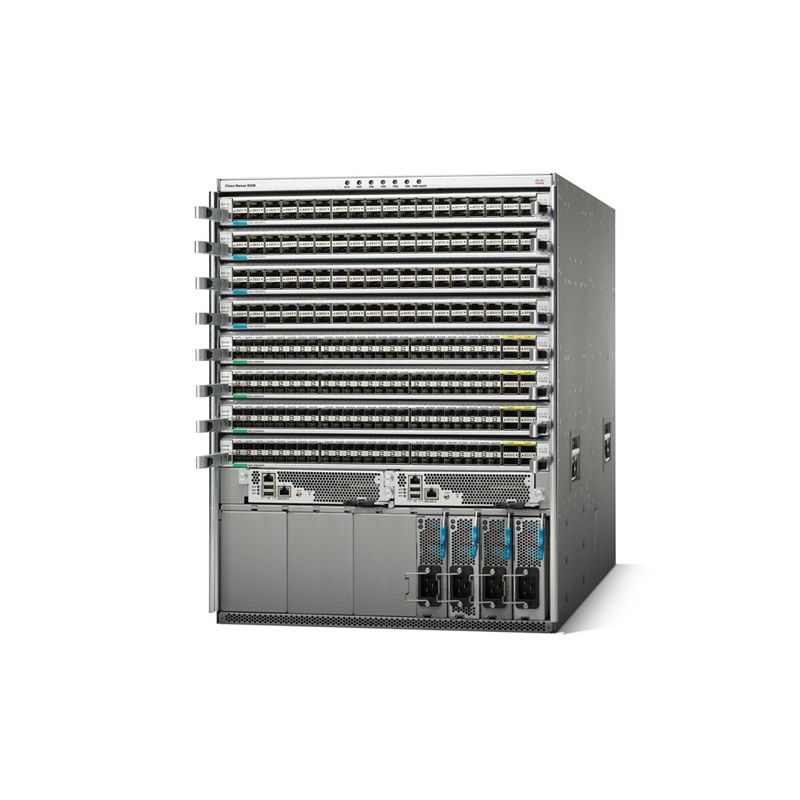

Quick Specs Figure 1 shows the appearance of N9K-C9508-B3-E.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | N9K-C9508-B3-E |
| Product Description | Cisco Nexus 9508 Chassis Bundle with 1 SupB, 3 PS, 2 SC, 4 FM-E, 3 Fan |
| Supervisors | 1 SupB |
| Power Supplies | 3 PS |
| System Controllers | 2 SC |
| Fabric Modules | 4 FM-E |
| Fans | 3 Fans |
| Form Factor | Chassis |
| Dimensions (H x W x D) | 17.47 x 36.75 x 30.00 inches |
| Total Slots | 8 |
| Max Rack Units | 21 RU |
| Power Redundancy | N+N and N+1 |
| Cooling Method | Front-to-Back |
| Maximum Cooling Capacity | Up to 18000 LFM |
| Management Interfaces | 2 x 10/100/1000 Mbps Management Ports, 1 Serial Console Port, 1 USB Port |
| Operating Temperature | 32??F to 104??F (0??C to 40??C) |
| Storage Temperature | -40??F to 158??F (-40??C to 70??C) |
| Operating Humidity | 10% to 90% (non-condensing) |
| Storage Humidity | 5% to 95% (non-condensing) |
| System LED Indicators | Status, Power, Fans, Network |
| Warranty | Limited Lifetime Warranty |
