N9K-C9516
Model: N9K-C9516 – Cisco Nexus 9500 Series
Details: Cisco Nexus 9516 Chassis with 16 linecard slots
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
N9K-C9516 Overview

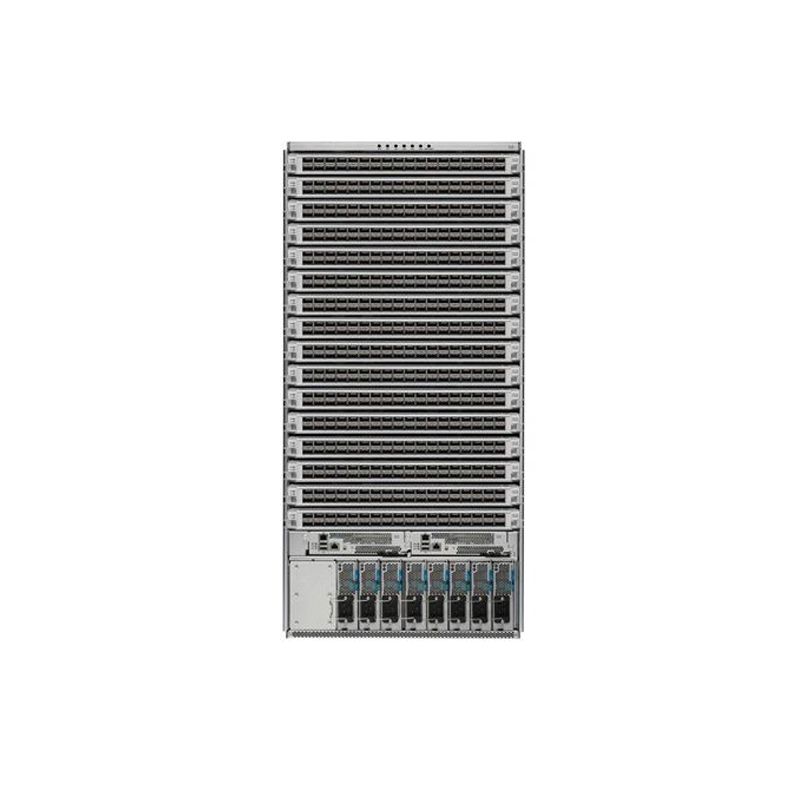

Quick Specs Figure 1 shows the appearance of N9K-C9516.
Table 1 shows the Quick Specs.
| Chassis | ●Up to 16 line cards●Up to 10 power supplies●Up to 6 fabric modules of the same type●Up to 2 system controllers●Up to 2 supervisors of the same type●Up to 3 fan trays |
| Number of line card slots | 16 |
| Physical (H x W x D) | 36.70 x 17.50 x 31.76 in. (93.41 x 44.50 x 80.67 cm) |
| Weight (chassis) | 192 lb (87.3 kg) |
| Operating temperature | 32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature | -40 to 158°F (-40 to 70°C) |
| Rack Units | 21 |
| Mean Time Between Failure (MTBF) Hours | 680,000 |
| Humidity | 5 to 95% (noncondensing) |
| Altitude | 0 to 13,123 ft (0 to 4000m) |
| Regulatory compliance | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety | ●UL 60950-1 Second Edition●CAN/CSA-C22.2 No. 60950-1 Second Edition●EN 60950-1 Second Edition●IEC 60950-1 Second Edition●AS/NZS 60950-1●GB4943 |
| EMC: Emissions | ●47CFR Part 15 (CFR 47) Class A●AS/NZS CISPR22 Class A●CISPR22 Class A●EN55022 Class A●ICES003 Class A●VCCI Class A●EN61000-3-2●EN61000-3-3●KN22 Class A●CNS13438 Class A |
| EMC: Immunity | ●EN55024●CISPR24●EN300386●KN 61000-4 series |
| RoHS | The product is RoHS-6 compliant with exceptions for leaded-ball grid-array (BGA) balls and lead press-fit connectors. |
