NEDD000PQ100
Model: Huawei NetEngine Series Routers Module NEDD000PQ100
Details: 4 Channels OC-3/STM-1 POS Optical Interface Board
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NEDD000PQ100 Overview

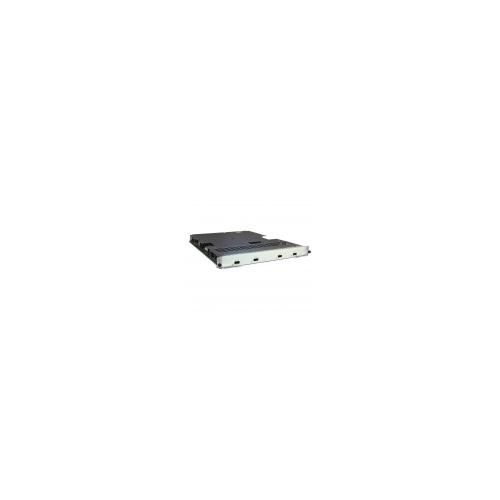

Quick Specs Figure 1 shows the appearance of NEDD000PQ100.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | NEDD000PQ100 |
| Product Type | POS Optical Interface Board |
| Number of Channels | 4 |
| Interface Type | OC-3/STM-1 |
| Optical Port | SFP |
| Line Rate | 155.52 Mbps |
| Compliance | ITU-T G.957 |
| Wavelength | 1310 nm |
| Maximum Transmission Distance | 40 km |
| Connector Type | LC |
| Power Consumption | 5W |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity Range | 5% to 95% (non-condensing) |
| Dimensions | 220 mm x 198 mm x 28 mm |
| MTBF | Over 100,000 hours |
| EMC Standards | EN 55022 Class B, EN 55024 |
| Safety Standards | IEC 60950-1 |
| RoHS Compliance | Yes |
| Warranty | 1 Year |
