NEDD00EF8F00
Model: Huawei NetEngine Series Routers Module NEDD00EF8F00
Details: 8 Channels Fast Ethernet Optical Interface Board
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NEDD00EF8F00 Overview

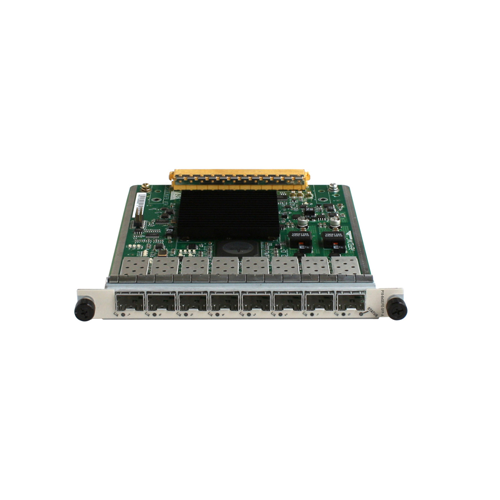

Quick Specs Figure 1 shows the appearance of NEDD00EF8F00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | NEDD00EF8F00 |
| Interface Type | Optical |
| Number of Channels | 8 |
| Ethernet Standard | Fast Ethernet |
| Data Rate | 100 Mbps |
| Connector Type | LC |
| Maximum Distance | 2 km |
| Wavelength | 1310 nm |
| Supported Protocols | IEEE 802.3u |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -40°C to 70°C |
| Operating Humidity | 10% to 90% RH |
| Power Consumption | 5 W |
| Dimensions (L x W x H) | 200 mm x 150 mm x 20 mm |
| Compliance | RoHS, CE |
| MTBF | 150,000 hours |
| Management Interface | CLI, SNMP |
| Firmware Upgrade | Supports Online Upgrade |
| LED Indicators | Power, Link/Activity |
| Warranty | 1 Year |
