NIM-1MFT-T1/E1

Original price was: $504.00.Current price is: $478.80.

Model: Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module NIM-1MFT-T1/E1
Details: Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module NIM-1MFT-T1/E1
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Add to quote
Add to compare
Add to wishlist
SKU: NIM-1MFT-T1/E1 Categories: , ,
Description

NIM-1MFT-T1/E1 Overview

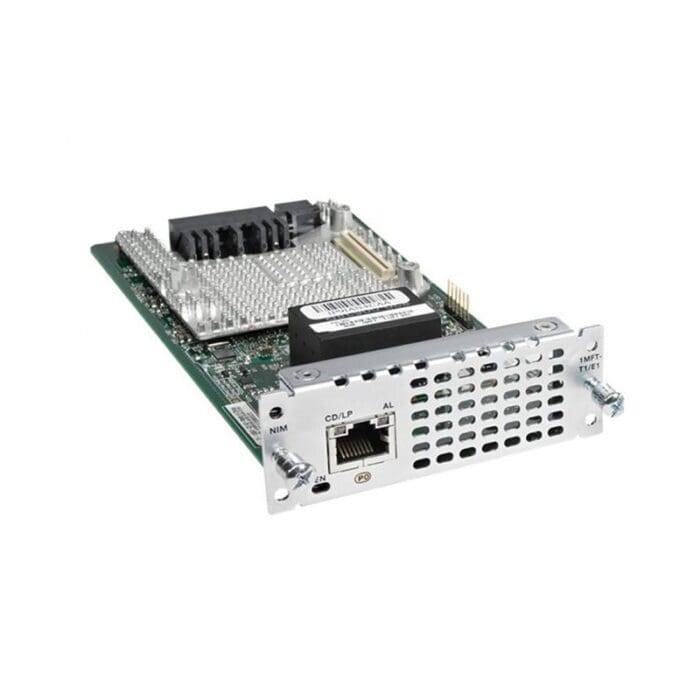

Quick Specs Figure 1 shows the appearance of NIM-1MFT-T1/E1.

Table 1 shows the Quick Specs.

Serial data (channel-group) 2 per port
E1 unframed G.703 Not supported
Voice channel associated signaling (CAS) (ds0-group) 24 per port (T1)31 per port (E1)1 per timeslot
PRI (pri-group) 1 per port
Drop and insert(tdm-group) 24 per port (T1)31 per port (E1)1 per timeslot
Transmit bit rate 2.048 Mbps ±100 bps/50 ppm
Receive bit rate 2.048 Mbps ±100 bps/50 ppm
Line code Alternate mark inversion (AMI) and binary 8-zero substitution (B8ZS)
AMI ones density Enforced for n x 56-kbps channels
Framing format D4 (Super Frame [SF]) and Extended Super Frame (ESF)
Output level (line build-out [LBO]) 0, -7.5 or -15 dB
Input level +1 dB0 down to -24 dB0
Data-terminal-equipment (DTE) interface (WIC mode) Fractional service
DTE interface (VIC mode) G.704 or structured
Data-communications-equipment (DCE) interface G.704 or structured
Data rate 1.984 Mbps (framed mode) per E1 port
Clocking Internal and loop (recovered from network)
E1 national bits Fixed (nonconfigurable)
Encoding High-density bipolar three (HDB3)
DTE interface (WIC mode) Fractional service
DCE interface G.704 or structured
Dimensions (H x W x D) 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm)
Environmental ●  Operating temperature: 0 to 50°C (32 to 122°F)●  Storage temperature: -20 to +65°C (-4 to 148°F)●  Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating
T1 Compliance (partial list) ●  TIA-968-A●  CS-03●  Jate●  ANSI T1.403
E1 Compliance (partial list) ●  TBR4, TBR12, and TBR13●  ITU-T G.703, G.704, G.823, and I.431●  S016 (Australia)
Weight 0.40 lb (181g)
