NIM-2FXSP=
Model: NIM-2FXSP= – Cisco ISR 4000 Router Modules & Cards
Details: 2-port Network Interface Module – FXS, FXS-E and DID
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NIM-2FXSP= Overview

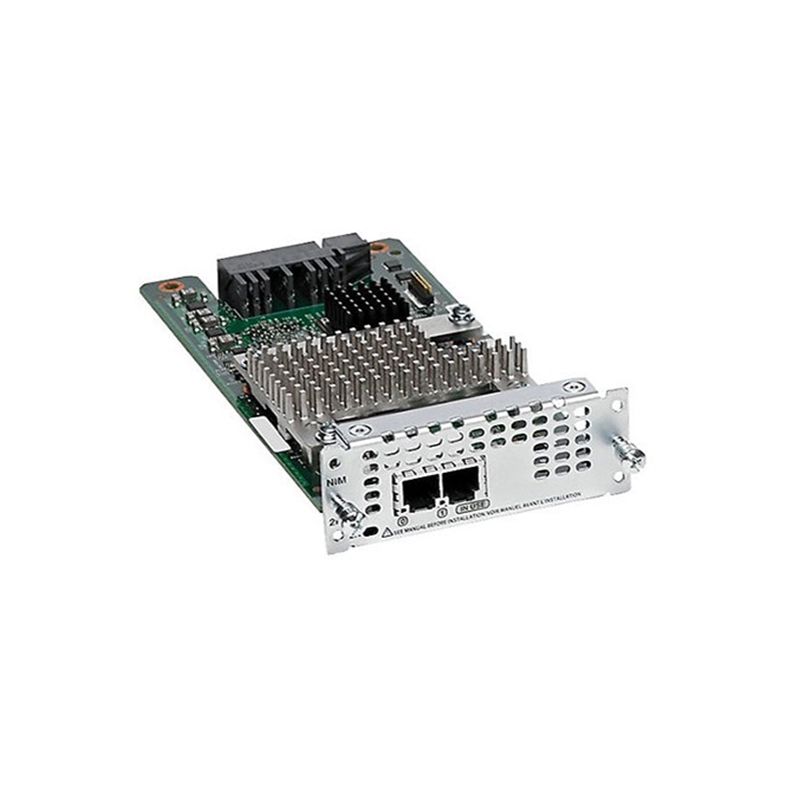

Quick Specs Figure 1 shows the appearance of NIM-2FXSP=.
Table 1 shows the Quick Specs.
| Product Name | Cisco NIM-2FXSP= |
| Brand | Cisco |
| Module Type | Network Interface Module |
| Interface | 2-port |
| Port Type | FXS (Foreign Exchange Station), FXS-E (Enhanced FXS), DID (Direct Inward Dial) |
| Compatibility | Cisco 4000 Series Integrated Services Router (ISR) |
| Power Requirement | 12 VDC, 1A |
| Operating Temperature | 0��C to 40��C (32��F to 104��F) |
| Storage Temperature | -20��C to 70��C (-4��F to 158��F) |
| Relative Humidity (Operating) | 10% to 85% (non-condensing) |
| Relative Humidity (Storage) | 5% to 95% (non-condensing) |
| Dimensions | 125 mm x 75 mm x 18 mm (W x H x D) |
| MTBF (Mean Time Between Failures) | 300,000 hours |
| Voice Quality | G.711, G.729 |
| Echo Cancellation | 64 ms echo tail |
| LED Indicators | Activity and Link status |
| Compliance | FCC part 15 Class A, UL/CSA 60950-1, CE Mark |
| Warranty | 1-year limited hardware warranty |
| Installation | Plug-and-play |
| Management | CLI via Cisco IOS Software |
