NIM-8MFT-T1/E1
Model: Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module NIM-8MFT-T1/E1
Details: Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module NIM-8MFT-T1/E1
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NIM-8MFT-T1/E1 Overview

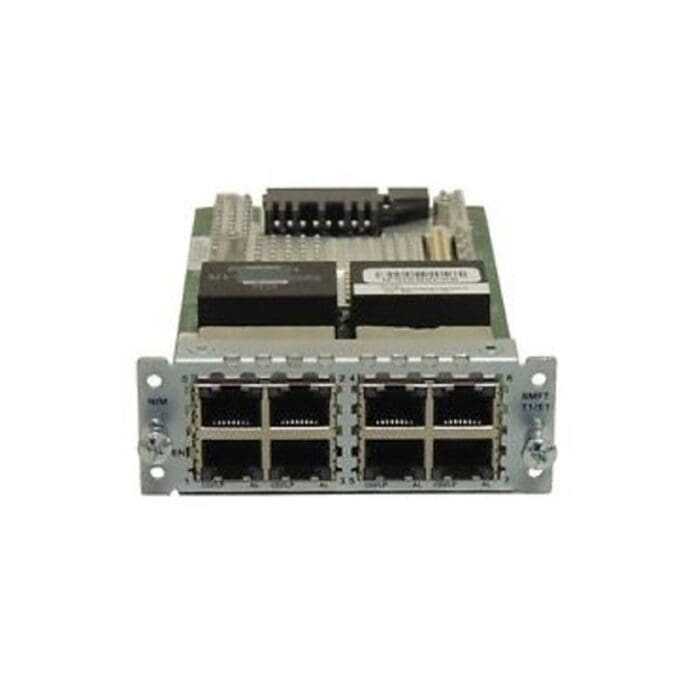

Quick Specs Figure 1 shows the appearance of NIM-8MFT-T1/E1.
Table 1 shows the Quick Specs.
| ProductNumber | NIM-8MFT-T1/E1 |
| ProductDescription | 8 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module |
| Number of Ports | 8 |
| Clear-Channel Data | Yes |
| MFT Packet Voice | Yes |
| Unstructured E1 (G.703) Support | No |
| Channelized Data | No |
| Dimensions (H x W x D) | 1.25 x 3.50 x 7.24 in. (3.18 x 8.89 x 18.39 cm) |
| Weight | 0.52 lb (236g) |
| Environmental | ● Operating temperature: 0 to 50°C (32 to 122°F)● Storage temperature: -20 to +65°C (-4 to 148°F)● Relative humidity: 10 to 85% noncondensing operating; 5 to 95% noncondensing, nonoperating |
| T1 Compliance (partial list) | ● TIA-968-A● CS-03● Jate● ANSI T1.403 |
| E1 Compliance (partial list) | ● TBR4, TBR12, and TBR13● ITU-T G.703, G.704, G.823, and I.431● S016 (Australia) |
Get more information
Do you have any question about the NIM-8MFT-T1/E1?
Contact us now via Live Chat or sales@metafinitivetech.com
