NIM-PVDM-64
Model: NIM-PVDM-64 – Cisco Catalyst 8000 Series Edge Platforms Modules & Cards Series
Details: 64-channel Voice DSP NIM Module
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NIM-PVDM-64 Overview

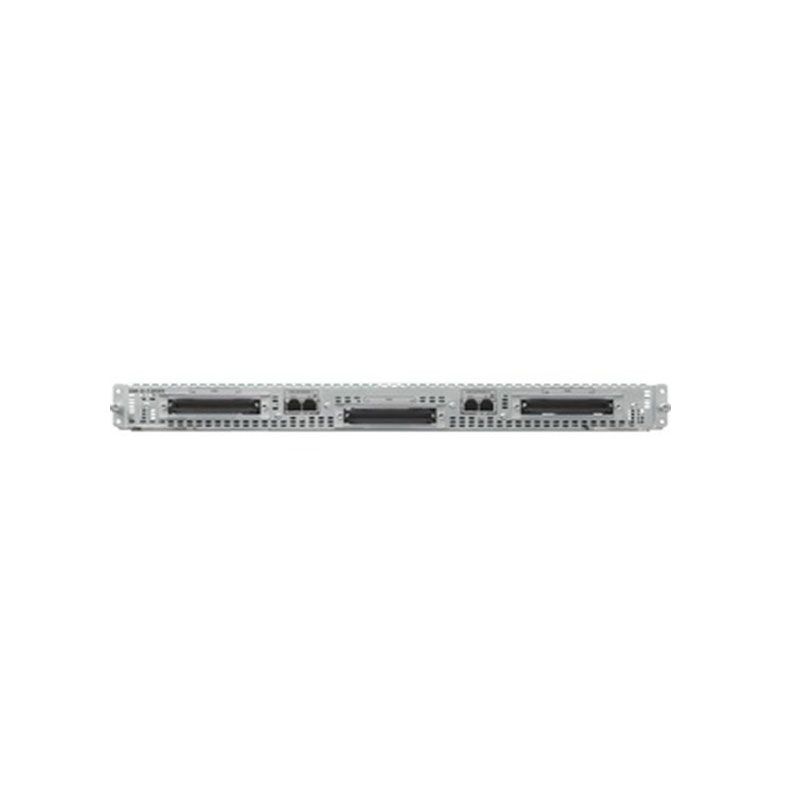

Quick Specs Figure 1 shows the appearance of NIM-PVDM-64.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | NIM-PVDM-64 |
| Type | Voice DSP Module |
| Channel Capacity | 64 channels |
| DSPs (Digital Signal Processors) | 4 |
| DSP Architecture | High-density voice and media |
| Max Power Consumption | 35W |
| Operating Temperature | 32 to 104 ??F (0 to 40 ??C) |
| Storage Temperature | -40 to 158 ??F (-40 to 70 ??C) |
| Operating Humidity | 5% to 85% non-condensing |
| Dimensions (H x W x D) | 1.56 x 5.16 x 7.28 inches (39.62 x 130.81 x 184.9 mm) |
| Voice Codec Support | G.711, G.729a, G.729ab, G.722 |
| Compatibility | Cisco Integrated Services Routers Generation 2 (ISR G2) |
| Compliance | RoHS compliant |
| MTBF (Mean Time Between Failures) | 1.2 million hours |
| Warranty | 1 year limited warranty |
| Management | Remote management via SNMP |
| Port Interfaces | Ethernet, Serial |
| Encryption | Secure RTP for voice encryption |
| Multipoint Control Unit (MCU) | Supported for conferencing |
| Power Supply | External power supply |
