NVR-104H-D/4P
Model: NVR-104H-D/4P – Hikvision HiLook IP Products
Details: 4-ch Mini 1U 4 PoE NVR
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
NVR-104H-D/4P Overview

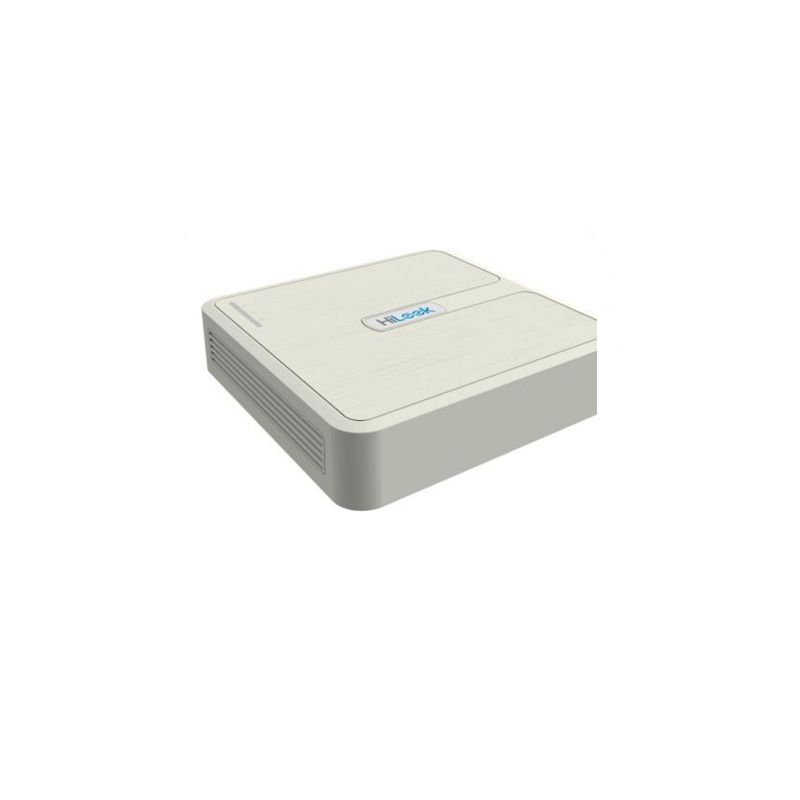

Quick Specs Figure 1 shows the appearance of NVR-104H-D/4P.
Table 1 shows the Quick Specs.
| Brand | Hikvision |
| Model | NVR-104H-D/4P |
| Video/Audio Input | 4 channels |
| PoE Ports | 4 independent PoE network interfaces |
| Operating System | Embedded Linux |
| Video Compression | H.264 |
| HDMI Output | 1 channel, 1920��1080 resolution |
| Network Interface | 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| USB Interface | 2 �� USB 2.0 |
| Hard Disk Drive | 1 SATA interface for 1 HDD |
| HDD Capacity | Up to 4 TB capacity |
| Record Rate | Up to 6 Mbps per channel |
| Playback | Simultaneous 4-ch |
| Protocols | TCP/IP, DHCP, Hik Cloud P2P, NTP, SADP, SMTP, SNMP, UPnP?, NFS, iSCSI |
| Power Supply | 48V DC |
| Power Consumption | �� 30 W (without HDD) |
| Operating Temperature | -10 ��C to 55 ��C (14 ��F to 131 ��F) |
| Operating Humidity | 10% to 90% humidity |
| Chassis | Mini 1U |
| Dimensions | 260 �� 204 �� 45 mm (10.2″ �� 8″ �� 1.8″) |
