NVR2104HS-W-4KS2
Model: NVR2104HS-W-4KS2 – Dahua 4 Channel NVR
Details: 4 Channel Compact 1U Lite 4K H.265 Wireless Network Video Recorder
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NVR2104HS-W-4KS2 Overview

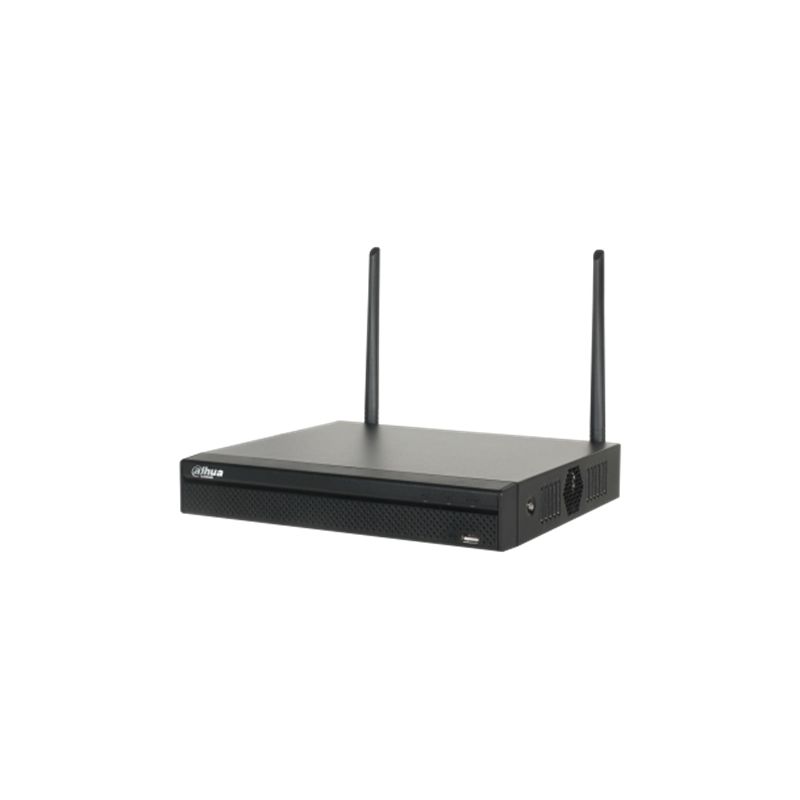

Quick Specs Figure 1 shows the appearance of NVR2104HS-W-4KS2.
Table 1 shows the Quick Specs.
| Main Processor | Dual-core embedded processor |
| Operating System | Embedded LINUX |
| IP Camera Input | 4Â Channel |
| Two-way Talk | N/A |
| Interface | 1 RJ-45 port (10/100Mbps) |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/720P/D1&etc. |
| Decoding Capability | 1ch@8MP 30fps, 4ch@1080P 30fps |
| Multi-screen Display | 1/4 |
| OSD | Camera title, Time, Camera lock, Motion detection, Recording |
| Compression | H.265+/H.264+/H.265/H.264 |
| Record Rate | 80Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule(Regular(Continuous), MD, Stop |
| Record Interval | 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec |
| Trigger Events | Recording, PTZ, Tour, Video Push, Snapshot, and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 x 18), and Tampering |
| Alarm input | N/A |
| Relay Output | N/A |
| Sync Playback | 1/4 |
| Search Mode | Time /Date, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Third-party Support | Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, and more |
| Wireless | IEEE802.11b/g/n(2.4GHz) |
| PoE | N/A |
| Network Function | HTTP/HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, IP Filter, DDNS, IP Search(Support Dahua IP camera, DVR, NVS and etc.), P2P |
| Optical Fiber Interface | N/A |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, SDK, CGI |
| Internal HDD | 1 SATA III Port, up to 4TB capacity for each HDD |
| HDD Mode | Single |
| eSATA | N/A |
| USB | 2 ports (2 USB2.0) |
| RS232 | N/A |
| RS485 | N/A |
| Power Supply | Single, DC12V/2A |
| Power Consumption | <6.6W (without HDD) |
| Operating Conditions | 0°C ~ +40°C (+32°F ~ +104°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Dimensions | Compact 1U, 226mm x 226.9mm x 40.4mm (8.9″ x 8.9″ x 1.6″) |
| CE | EN55032, EN55024, EN50130-4, EN60950-1 |
| FCC | Part 15 Subpart B, ANSI C63.4-2014 |
| UL | UL60950-1 |
