-5%
NVR4216-16P-4KS2/L
Model: NVR4216-16P-4KS2/L – Dahua 16 Channel NVR
Details: 16 Channel 1U 2HDDs 16PoE Network Video Recorder
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
NVR4216-16P-4KS2/L Overview

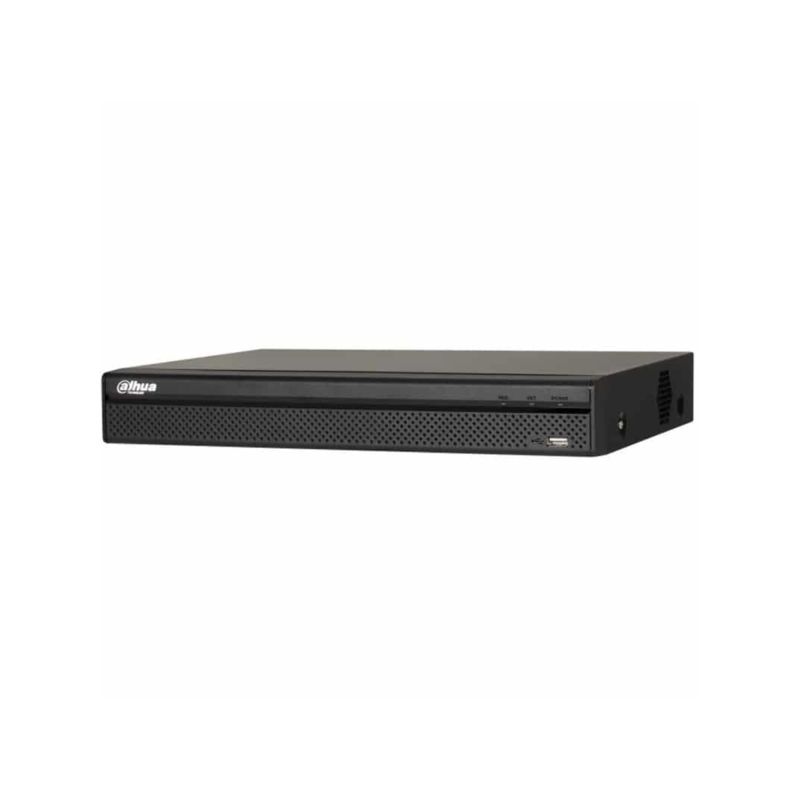

Quick Specs Figure 1 shows the appearance of NVR4216-16P-4KS2/L.
Table 1 shows the Quick Specs.
| Main Processor | Industrial-grade embedded processor |
| OS | Embedded Linux |
| Operation Interface | Web/operating in local GUI |
| Performance | 4 channels |
| AI Search | Search for pictures by channel, time and face attributes |
| Face Attributes | 6 attributes: Gender, age, glasses, expression, mouth mask, and beard |
| Access Channel | 16 |
| Network Bandwidth | Access: 160 Mbps; Storage: 160 Mbps; Forward: 64Mbps |
| Resolution | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 x 1080p@30 fps |
| Video Output | 1 x VGA output, 1 x HDMI output, supports simultaneous video sources output for VGA and HDMI |
| Multi-screen Display | 1, 4, 8, 9, 16 views |
| Third-party Camera Access | ONVIF; RTSP |
| Video | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
| Audio | PCM/G711A/G711U/G726/AAC |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register |
| Mobile Phone Access | Android; iOS |
| Interoperability | ONVIF(profile T/S/G); CGI; SDK |
| Browser | Chrome; IE9 or later; firefox |
| Multi-channel Playback | Up to 16 channels for playback |
| Record Mode | Manual record; alarm recording; SMD recording; smart recording |
| Storage | Local HDD; network |
| Backup | USB storage device |
| Playback Function | 1. Play/pause/stop/slow/quick/backward/by frame2. Full screen, backup (video clip/file), partial zoom in, and audio on/off |
| Disk Group | Yes |
| General Alarm | Motion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm |
| Anomaly Alarm | Camera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception |
| Intelligent Alarm | Face detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms |
| Alarm Linkage | Recording, snapshot, audio, buzzer, log, preset, and email |
| Audio Input | 1 x RCA input |
| Audio Output | 1 x RCA output |
| HDD | 2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| Alarm Input | 4 |
| Alarm Output | 2 |
| USB | 2 (1 × front USB2.0; 1 × back USB2.0) |
| HDMI | 1 (supports up to 4K resolution output) |
| VGA | 1 |
| Network | 1 x RJ-45, 10/100 Mbps self-adaptive Ethernet port |
| POE | 16 |
| Power Supply | 100 V–240 V, 47 Hz–63 HZ, 3.5 A |
| Power Consumption | < 10 W (HDD not included, idling) |
| Net Weight | 2.63 kg (5.80 lb) |
| Gross Weight | 3.91 kg (8.62 lb) |
| Product Dimensions | 375 mm × 327.4 mm × 53.8 mm (14.76″ × 12.89″ ×2.12″) (W × L × H) |
| Package Dimensions | 170 mm × 449 mm × 421 mm (6.69″ × 17.68″ × 16.57″)(W × L × H) |
| Operating Conditions | –10 °C to +50 °C (+10 °F to +122 °F) |
| Storage Conditions | 0 °C to +40 °C (32 °F to 104 °F) |
| Operating Humidity | 10â„…~93â„… |
| Storage Humidity | 30%~85% |
| Operating Altitude | 3000 m (9842.52 ft) |
| Installation | Desktop mounted |
| Certifications | CE: EN62368-1; EN55032, EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4FCC: Part 15 Subpart B |
