OMXD30002

Original price was: $44.00.Current price is: $41.80.

Model: Huawei Optical Transceiver OMXD30002
Details: Optical Transceiver(SFP+,1550nm,9.95~11.1Gb/s,-4.7~4dBm,-14.1dBm,LC,SM,40km)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.

Description

OMXD30002 Overview

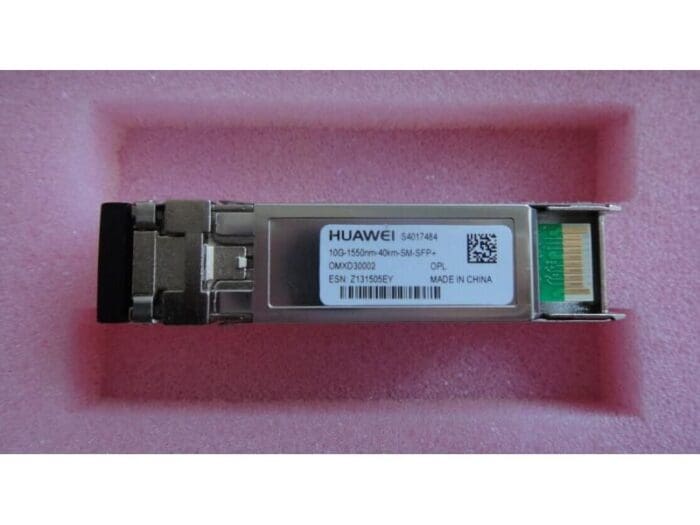

Quick Specs Figure 1 shows the appearance of OMXD30002.

Table 1 shows the Quick Specs.

Brand Huawei
Model OMXD30002
Type Optical Transceiver
Form Factor SFP+
Wavelength 1550 nm
Data Rate 9.95~11.1 Gb/s
Transmit Power (dBm) -4.7~4 dBm
Receiver Sensitivity (dBm) -14.1 dBm
Optical Connector LC
Cable Type SM (Single-mode)
Maximum Transmission Distance 40 km
Operating Temperature Range 0°C to 70°C
Storage Temperature Range -40°C to 85°C
Humidity 5% to 95% (non-condensing)
Power Supply Voltage 3.3V
Power Consumption < 1.5W
Compliance RoHS, CE, FCC
Bit Error Rate (BER) 10^-12
Compatible Platforms Common with various routers and switches
Warranty 1 year
