Sold out
ONS-CCC-100G-20=
Model: ONS-CCC-100G-20= – Cisco ONS Transceivers
Details: CXP-CFP MPO cable, 20m long
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ONS-CCC-100G-20= Overview

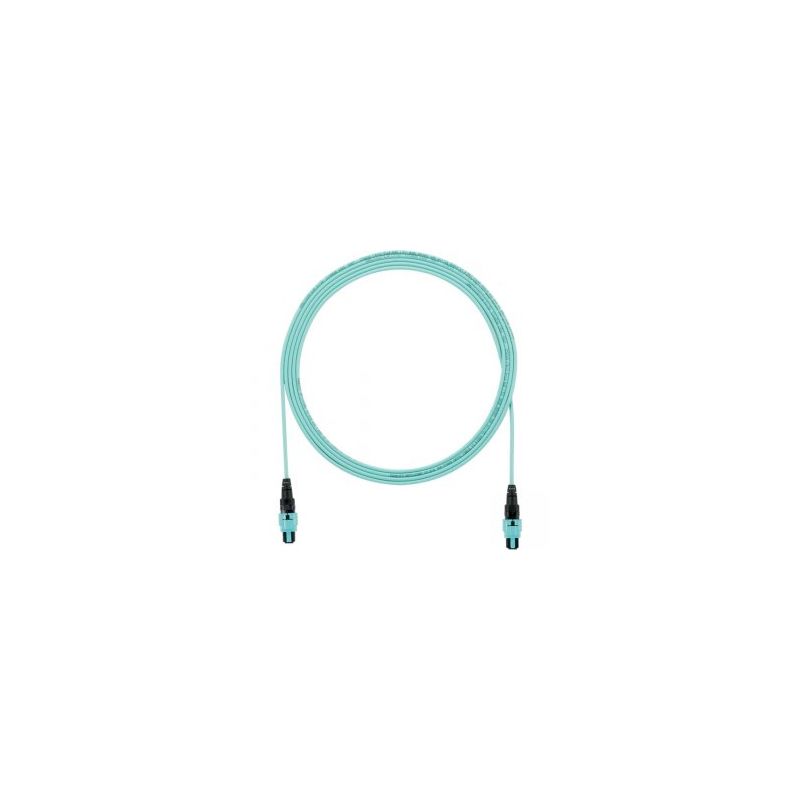

Quick Specs Figure 1 shows the appearance of ONS-CCC-100G-20=.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Product Name | ONS-CCC-100G-20= |
| Cable Type | MPO |
| Connector Type 1 | CXP |
| Connector Type 2 | CFP |
| Cable Length | 20 meters |
| Data Rate Support | 100 Gbps |
| Optical Fiber | Multimode |
| Operating Temperature | 0 to 70??C |
| Storage Temperature | -40 to 85??C |
| Insertion Loss | 0.5 dB maximum |
| Return Loss | 35 dB minimum |
| Compliance | RoHS |
| Application | Data Center, High Performance Computing |
| Compatibility | Cisco ONS |
| Fiber Count | 12 fibers |
| Outer Jacket | LSZH |
| Durability | 500 Matings |
| Bend Radius | 30 mm minimum |
| Attenuation | 3.5 dB/km at 850 nm |
