ONS-CFP2-WDM-1KL=
Model: ONS-CFP2-WDM-1KL= – Cisco ONS Transceivers
Details: 100G QPSK / 200G 16-QAM – WDM CFP2 Pluggable, C temp
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Out of stock
Description
ONS-CFP2-WDM-1KL= Overview

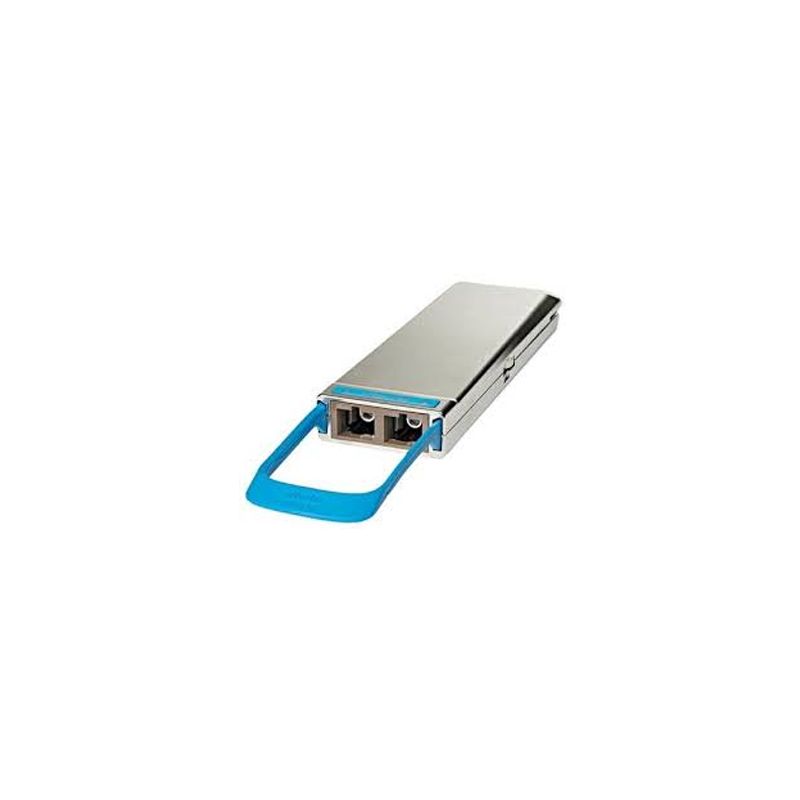

Quick Specs Figure 1 shows the appearance of ONS-CFP2-WDM-1KL=.
Table 1 shows the Quick Specs.
| Brand | Cisco |
| Model | ONS-CFP2-WDM-1KL= |
| Form Factor | CFP2 |
| Data Rate | 100G QPSK / 200G 16-QAM |
| Wavelength | WDM |
| Temperature Range | Commercial |
| Connector Type | LC Duplex |
| Reach | Up to 2000 km (dependent on modulation) |
| Modulation Formats | QPSK and 16-QAM |
| Power Supply | 3.3V |
| Power Consumption | Max 24W |
| Digital Diagnostics | Available |
| Operating Humidity | 5% to 95% |
| Laser Type | Tunable Laser |
| Protocols | OTU4, 100GbE, 200GbE, 16G Fibre Channel |
| Compliance | RoHS |
| Encryption | Not Supported |
| Firmware Upgrades | Supported |
| MTBF | Over 1 million hours |
| Physical Dimensions | 41.5 mm x 107.5 mm x 12.6 mm |
