-5%
OSG040002
Model: Huawei Optical Transceiver(eSFP,1310nm,1.25Gb/s,-5~0dBm,-23dBm,LC,SM,40km)
Details: Huawei Optical Transceiver(eSFP,1310nm,1.25Gb/s,-5~0dBm,-23dBm,LC,SM,40km)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
OSG040002 Overview

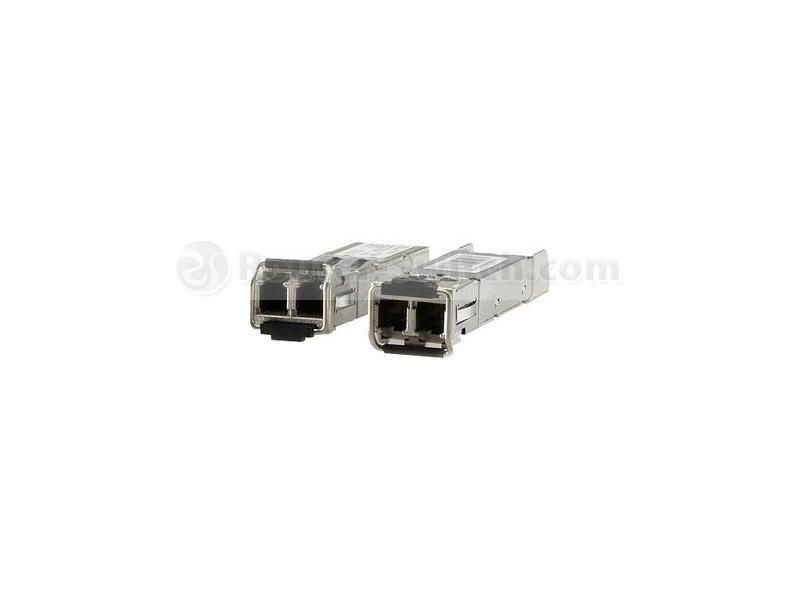

Quick Specs Figure 1 shows the appearance of OSG040002.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | OSG040002 |
| Type | Optical Transceiver |
| Form Factor | eSFP |
| Wavelength | 1310nm |
| Data Rate | 1.25Gb/s |
| Transmit Power | -5~0dBm |
| Receiver Sensitivity | -23dBm |
| Connector | LC |
| Fiber Type | Single Mode |
| Maximum Distance | 40 km |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption | < 1W |
| Digital Diagnostic Monitoring | Yes |
| Compliance | SFF-8472 |
| EMI | FCC Part 15 Class B, CISPR22 Class B |
| Safety | FDA/CDRH, IEC60825-1, 2 |
| RoHS | RoHS6 |
