OST040N00
Model: Huawei Optical Transceiver OST040N00
Details: Optical Transceiver,eSFP,622M,Single-mode Module(1310nm,40km,LC)
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
OST040N00 Overview

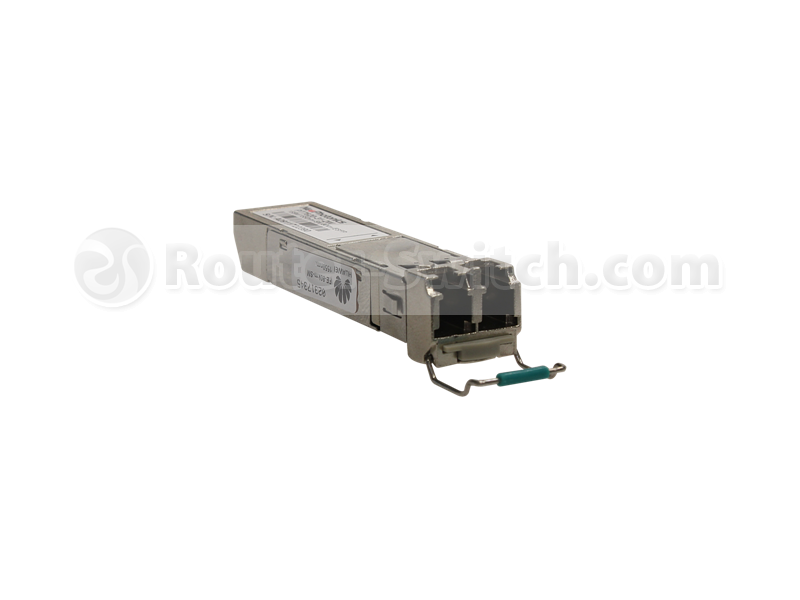

Quick Specs Figure 1 shows the appearance of OST040N00.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model | OST040N00 |
| Type | Optical Transceiver |
| Form Factor | eSFP |
| Data Rate | 622 Mbps |
| Wavelength | 1310nm |
| Maximum Distance | 40 km |
| Cable Type | Single-mode |
| Connector | LC |
| Transmitter Type | Laser |
| Receiver Type | APD |
| Operating Temperature Range | 0°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Voltage Supply | 3.3V |
| Power Consumption | Less than 2W |
| DDM/DOM | Yes |
| Compliance | RoHS |
| MTBF | Over 1,000,000 hours |
| EMC | FCC Part 15 |
| Warranty | 1 year |
