-5%
OSX070003
Model: Huawei Optical Transceiver OSX070003
Details: Optical Transceiver-SFP+-1491nm-9.95~11.1Gb/s-0dBm-4dBm–23dBm-LC-SM-70km
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
OSX070003 Overview

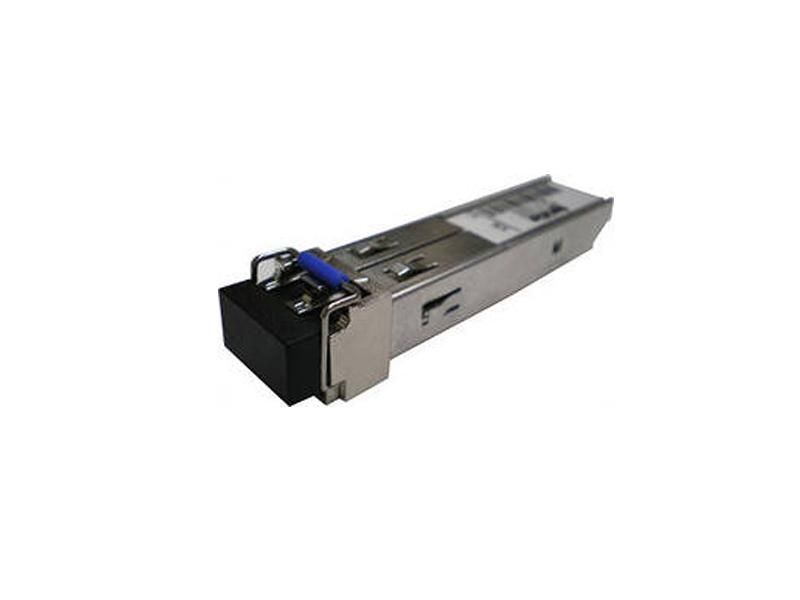

Quick Specs Figure 1 shows the appearance of OSX070003.
Table 1 shows the Quick Specs.
| Brand | Huawei |
| Model Number | OSX070003 |
| Product Type | Optical Transceiver |
| Form Factor | SFP+ |
| Transmission Distance | 70 km |
| Wavelength | 1491 nm |
| Data Rate | 9.95 ~ 11.1 Gb/s |
| Transmitter Power | 0 dBm ~ 4 dBm |
| Receiver Sensitivity | -23 dBm |
| Connector Type | LC |
| Fiber Type | Single Mode (SM) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Power Supply Voltage | 3.3 V |
| Max Voltage | 3.6 V |
| Protocol Standards | IEEE 802.3ae, SFF-8431, SFF-8472 |
| Compatibility | Compatible with various networking equipment for data centers and enterprise infrastructure |
| MTBF | Over 1 million hours |
| Digital Diagnostic Monitoring | Supported |
| Applications | 10G Ethernet, 10G Fiber Channel, SONET, SDH |
| Compliance | RoHS, MSA Compliant |
