-5%
P02607-B21
Model: P02607-B21 – HPE DL360 Server Processors
Details: HPE DL360 Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) Processor Kit S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
P02607-B21 Overview

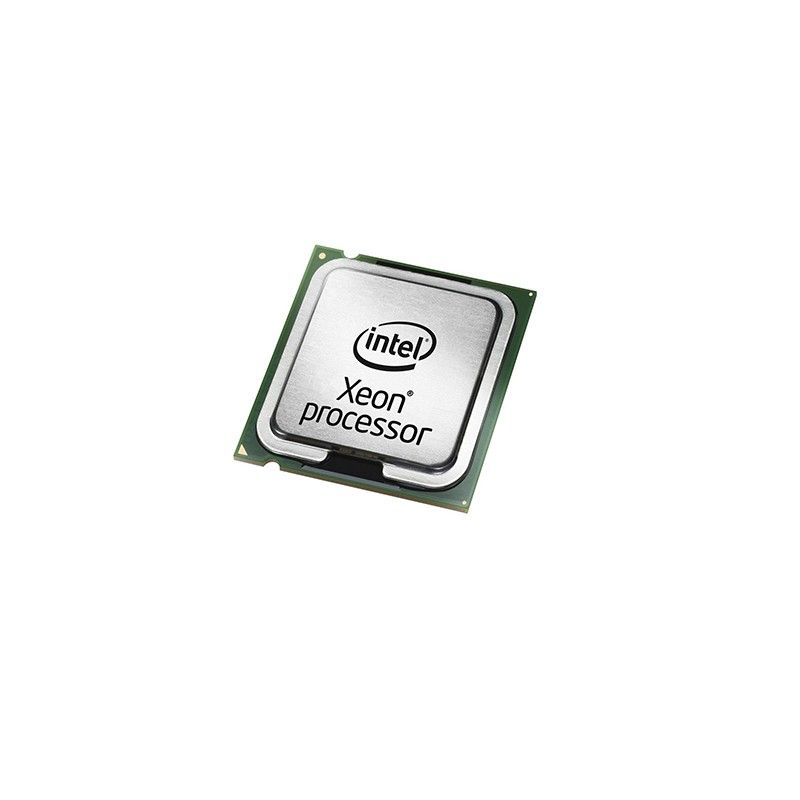

Quick Specs Figure 1 shows the appearance of P02607-B21.
Table 1 shows the Quick Specs.
| Brand | HPE |
| Product Name | DL360 Gen10 Intel Xeon-Gold 6230 Processor Kit |
| Processor Model | Intel Xeon-Gold 6230 |
| Base Frequency | 2.1 GHz |
| Cores | 20-core |
| Thermal Design Power (TDP) | 125W |
| Compatibility | HPE DL360 Gen10 Server |
| Product Type | Processor Upgrade Kit |
| Socket Compatibility | FCLGA3647 |
| Cache | 27.5 MB |
| Architecture | Intel Xeon Gold |
| Memory Support | DDR4 |
| Max Memory Speed | 2933 MHz |
| PCI Express Version | PCIe 3.0 |
| Instruction Set | 64-bit |
| Thermal Solution Specification | Standard |
| Voltage Range | Standard for Intel Xeon-Gold 6230 |
| Max Turbo Frequency | 3.7 GHz |
| Scalability | 2S |
| Integrated Graphics | None |
| Max Number of PCI Express Lanes | 48 |
| Security Features | Intel AES New Instructions, Secure Key |
