P05698-B21
Model: P05698-B21 – HPE DL580 Server Processors
Details: HPE DL580 Gen10 Intel Xeon-Gold 5218N (2.3GHz/16-core/105W) Processor Kit S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
P05698-B21 Overview

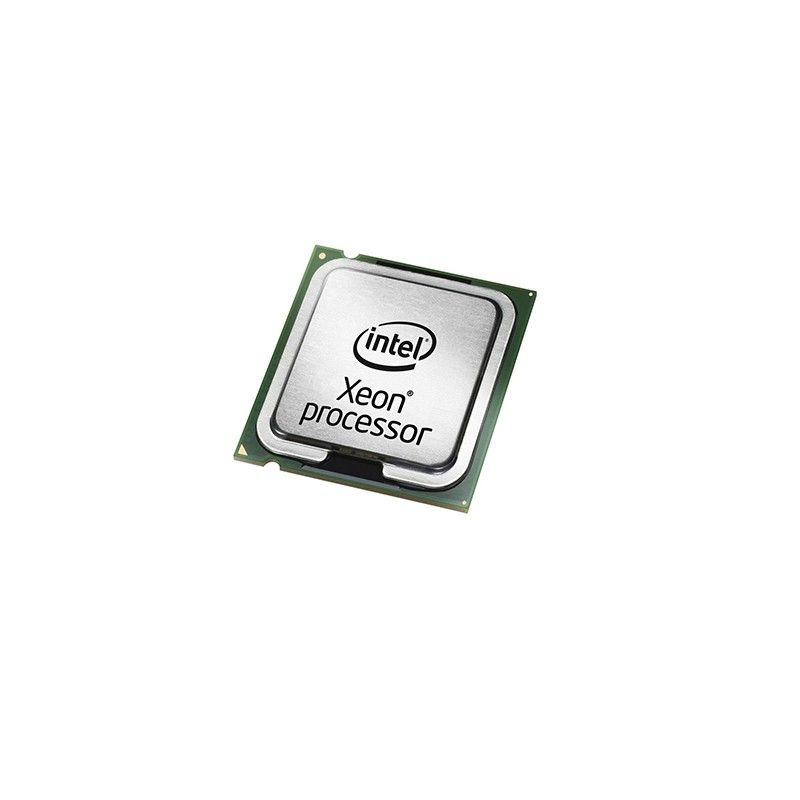

Quick Specs Figure 1 shows the appearance of P05698-B21.
Table 1 shows the Quick Specs.
| Product Brand | HPE |
| Product Name | HPE DL580 Gen10 Intel Xeon-Gold 5218N Processor Kit |
| Processor | Intel Xeon-Gold 5218N |
| Base Frequency | 2.3GHz |
| Core Count | 16-core |
| Thermal Design Power (TDP) | 105W |
| Compatibility | HPE DL580 Gen10 Server |
| Socket | Supported in specific HPE servers |
| Cache | 22M |
| Max Turbo Frequency | Up to 3.9GHz |
| Memory Types | DDR4-2400 |
| Max Number of PCI Express Lanes | 48 |
| Instruction Set | 64-bit |
| Scalability | 2S and 4S |
| Processor Number | 5218N |
| Security Features | Intel AES New Instructions, Secure Key |
| Advanced Technologies | Intel Turbo Boost Technology, Hyper-Threading Technology |
| Virtualization Technologies | Intel Virtualization Technology (VT-x), Intel VT-x with Extended Page Tables (EPT) |
| Thermal Monitoring Technologies | Yes |
| Release Date | Specific to HPE Server Models |
