P05722-B21
Model: P05722-B21 – HPE DL580 Server Processors
Details: HPE DL580 Gen10 Intel Xeon-Platinum 8276L (2.2GHz/28-core/165W) Processor Kit S-ERVER
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
P05722-B21 Overview

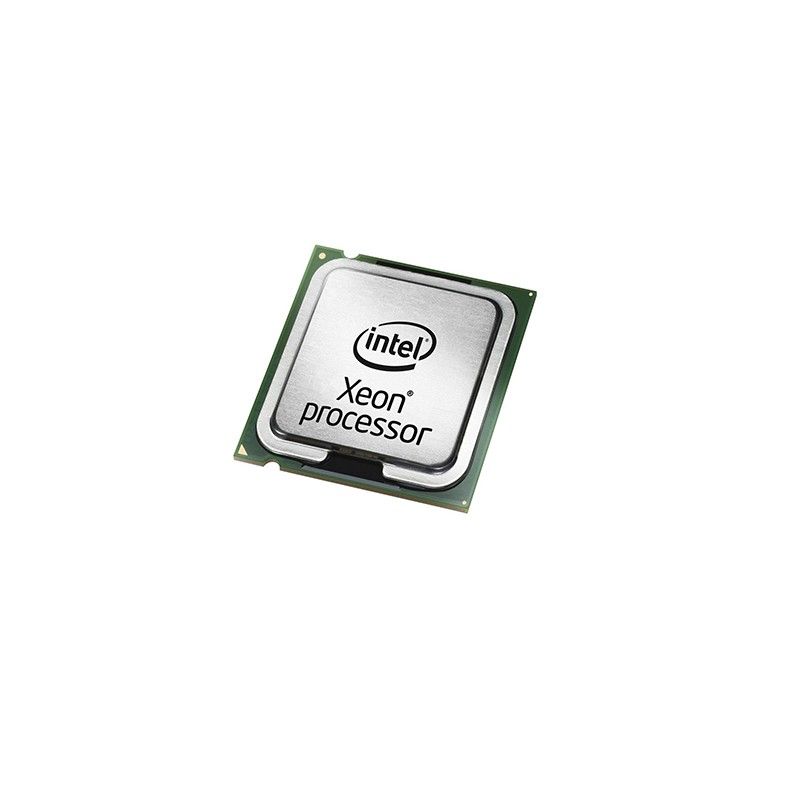

Quick Specs Figure 1 shows the appearance of P05722-B21.
Table 1 shows the Quick Specs.
| Product Name | HPE DL580 Gen10 Intel Xeon-Platinum 8276L Processor Kit |
| Processor Type | Intel Xeon-Platinum 8276L |
| Clock Speed | 2.2GHz |
| Number of Cores | 28-core |
| TDP | 165W |
| Server Compatibility | HPE DL580 Gen10 |
| Kit Contents | Processor, Thermal Kit (if applicable), Installation Guide |
| Socket Compatibility | FCLGA3647 |
| Intel Smart Cache | 38.50 MB |
| Intel QPI Speed | 10.4 GT/s |
| Thermal Solution Specification | PCG 2017X |
| Instruction Set | 64-bit |
| Memory Types Supported | DDR4-2933 |
| Max Number of Memory Channels | 6 |
| Max Memory Bandwidth | 140.8 GB/s |
| Max PCI Express Lanes | 48 |
| Processor Base Frequency | 2.2 GHz |
| Max Turbo Frequency | Up to 4.0 GHz |
| Scalability | 4S/8S |
| Enhanced Intel SpeedStep? Technology | Yes |
| Intel? Hyper-Threading Technology | Yes |
| Intel? Virtualization Technology (VT-x) | Yes |
