PA-220R
Model: PAN-PA-220R Firewall
Details: Palo Alto Networks PA-220R, Security appliance, 550 Gbps firewall throughput, 270 Gbps threat prevention throughput
Condition: New Factory Sealed
Warranty: 3 Years Warranty.
Description
PA-220R Overview

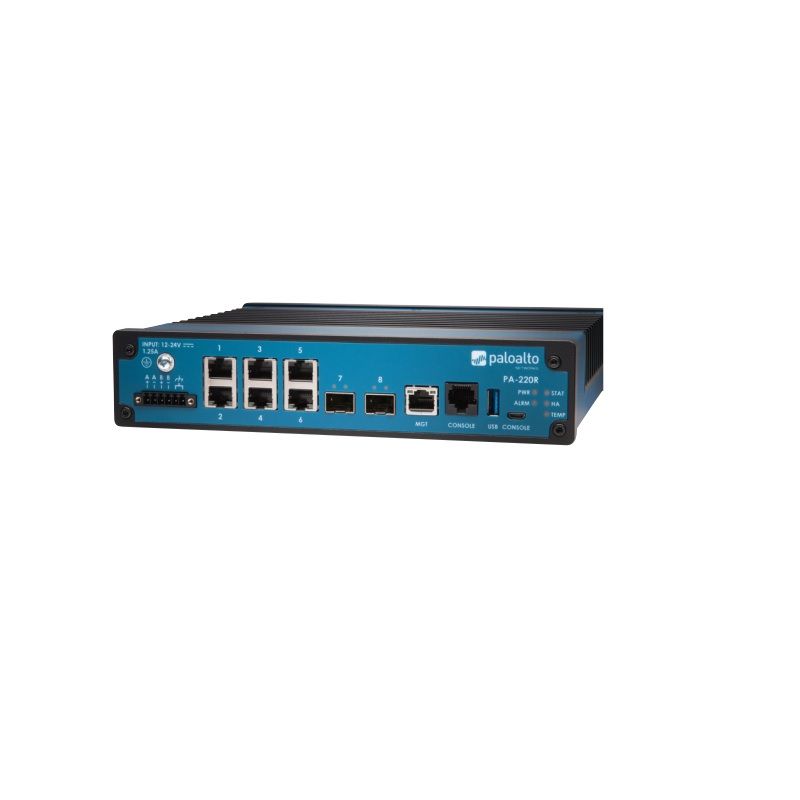

Quick Specs Figure 1 shows the appearance of PA-220R.
Table 1 shows the Quick Specs.
| Model | PA-220R |
| Firewall throughput (App-ID enabled) | 500 Mbps |
| Threat prevention throughput | 150 Mbps |
| IPSec VPN throughput | 100 Mbps |
| New sessions per second | 4,200 |
| Max sessions | 64,000 |
| Interface Modes | L2, L3, tap, virtual wire (transparent mode) |
| Routing | OSPFv2/v3 with graceful restart, BGP with graceful restart, RIP,static routingPolicy-based forwardingPoint-to-point protocol over Ethernet (PPPoE)Multicast: PIM-SM, PIM-SSM, IGMP v1, v2 and v3 |
| IPv6 | L2, L3, tap, virtual wire (transparent mode)Features: App-ID, User-ID™, Content-ID™, WildFire® and SSLSLAAC |
| IPsec VPN | Key exchange: manual key, IKEv1 and IKEv2 (pre-shared key, certificate-based authentication)Encryption: 3DES, AES (128-bit, 192-bit, 256-bit)Authentication: MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| VLANs | 802.1q VLAN tags per device/per interface: 4,094/4,094 |
| Network Address Translation | NAT modes (IPv4): static IP, dynamic IP, dynamic IP and port (port address translation)NAT64, NPTv6Additional NAT features: dynamic IP reservation, tunable dynamic IP and port oversubscription |
| High Availability | Modes: active/active, active/passiveFailure detection: path monitoring, interface monitoring |
| I/O | (6) 10/100/1000, (2) SFP |
| Management I/O | (1) 10/100/1000 out-of-band management port, (1) RJ-45 console port,(1) USB port, (1) Micro USB console port |
| Storage Capacity | 64GB EMMC |
| Power supply(Avg/Max power consumption) | Dual DC power feeds (13 W/16 W) |
| Max BTU/hr | 55 |
| Input Voltage (Input Frequency) | 12-24VDC 1.25A |
| Max Current Consumption | Firewall – 1.25A@12VDCMax inrush current 4.9A @ 12VDC |
| Rack Mount (Dimensions) | 2.0” H x 8.66” D x 9.25” WFlexible mounting options including DIN rail, rack and wall mount |
| Safety | TUV CB report and TUV NRTL |
| EMI | FCC Class A, CE Class A, VCCI Class A |
| Operating temperature | -40° to 158° F, -40° to 70° C |
| Non-operating temperature | -40° to 167° F, -40° to 75° C Passive cooling |
Get more information
Do you have any question about the PA-220R?
Contact us now via Live Chat or sales@metafinitivetech.com
